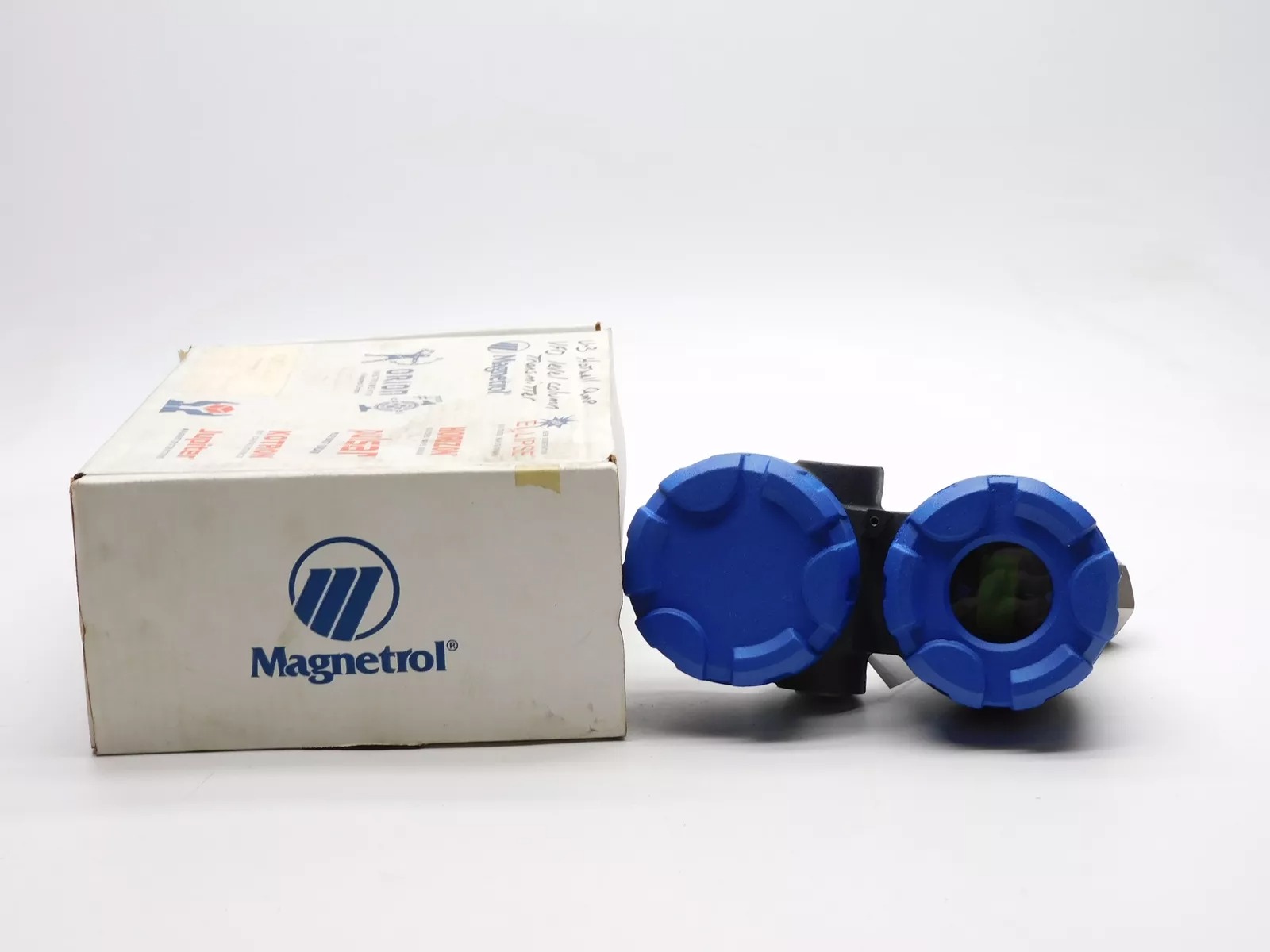

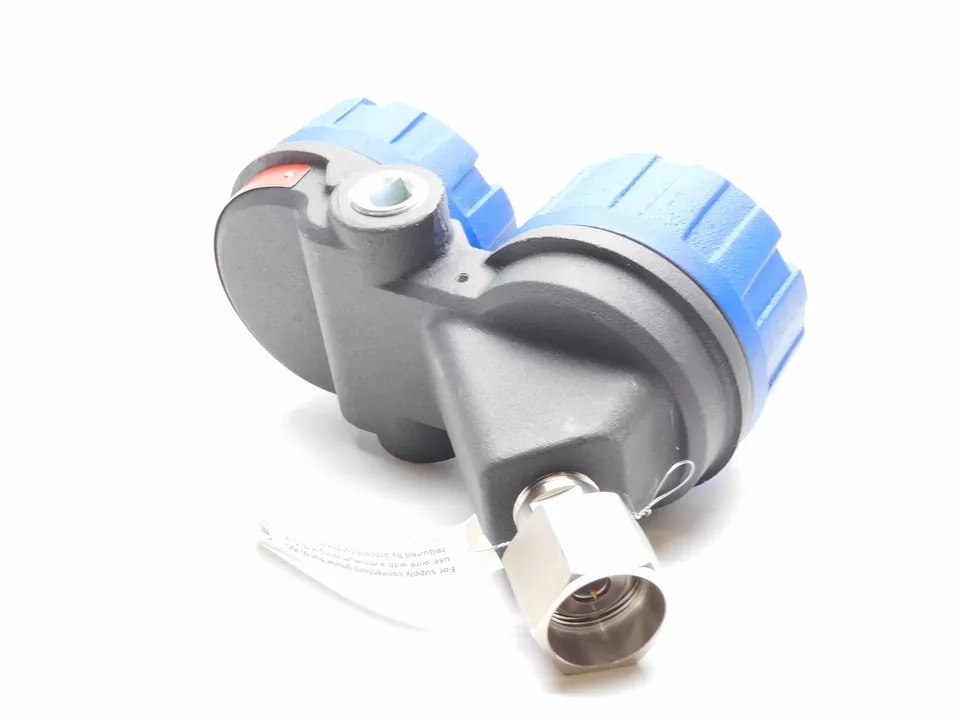

Magnetrol 705-510A-110/X7ER-A530-072 Guided Wave Radar Level Transmitter
Rp123000.00
Description:
The Magnetrol 705-510A-110/X7ER-A530-072 is a Guided Wave Radar Level Transmitter designed to provide accurate, non-contact level measurement for various industrial applications. This device utilizes advanced radar technology to measure the level of liquids and solids in tanks, vessels, and other containers. It is ideal for use in industries such as oil & gas, chemical processing, water treatment, and power generation, where precise and reliable level measurement is critical.
The 705-510A-110/X7ER-A530-072 model is equipped with a high-frequency radar that uses a probe or waveguide to transmit and receive signals, allowing it to detect the level of materials within a container with exceptional accuracy. The system is highly effective in challenging conditions, such as high pressure, temperature, or in the presence of vapors and foam. The Magnetrol Eclipse model ensures continuous, reliable performance, providing real-time data for industrial process control.
Key Features:
Guided Wave Radar Technology: Provides non-contact level measurement with high accuracy.
Robust Construction: Designed for durability and long service life in harsh industrial environments.
Versatile Applications: Suitable for liquids, solids, and slurry measurement.
Easy Installation: Flexible installation options, including flanged, threaded, or other suitable fittings.
High Precision: Capable of providing accurate level readings even in challenging environments.
No Moving Parts: Ensures low maintenance and long operational life.
Wide Range of Process Conditions: Works in high pressure, high temperature, and vapory conditions.
Digital Communication: Provides output options for integration with control systems.
Specifications:

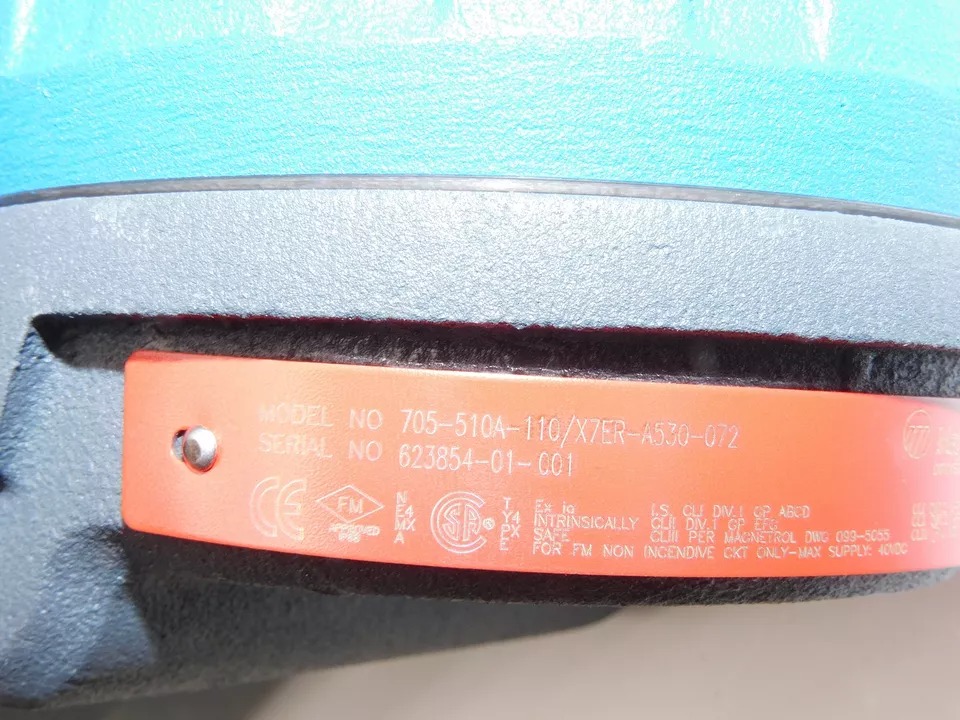

Model: 705-510A-110/X7ER-A530-072
Technology: Guided Wave Radar (Microwave Radar)
Power Supply: Typically 24V DC (industrial control system standard)
Output: 4-20 mA (standard analog output), optional HART communication for enhanced control and diagnostics.
Accuracy: Typically ±1 mm (depending on the application and configuration)
Process Temperature: Capable of handling temperatures typically ranging from -40°C to +200°C (specific ranges depend on the configuration)
Process Pressure: High-pressure applications supported (up to 40 MPa or higher, depending on the configuration)
Probe Length: Customizable for different tank or vessel sizes.
Material: Stainless steel, resistant to corrosion and high temperatures, ensuring durability in aggressive environments.
Hazardous Area Certification: Available in configurations suitable for hazardous locations (ATEX, IECEx, etc.)
Mounting Type: Available in various mounting options, including threaded, flanged, and more.
Communications: Optional HART communication for diagnostics and remote configuration.
Display: Optional local display for real-time level monitoring and diagnostics.
Applications:
Oil & Gas: For measuring levels in separators, tanks, and pipelines.
Chemical & Petrochemical: Ideal for tanks and vessels containing aggressive chemicals, slurries, or foams.
Water & Wastewater: Used in reservoirs, clarifiers, and tanks for accurate water level measurement.
Food & Beverage: Measures levels in storage tanks, mixing vessels, and silos.
Power Generation: For level monitoring in fuel tanks, boilers, and condensers.
Pharmaceutical: Precise level measurement in reactors and mixing tanks in highly regulated environments.
