LEVEL SENSOR 249B C/W FISHER FIELDVUE DLC3010

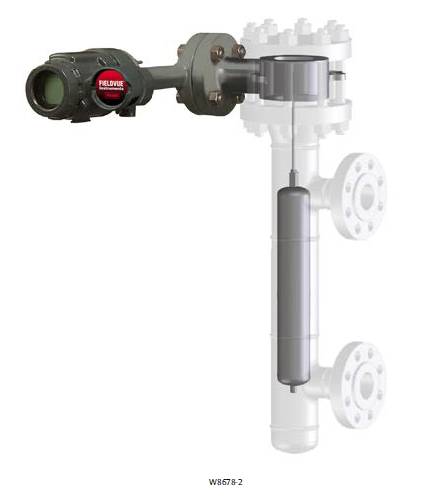

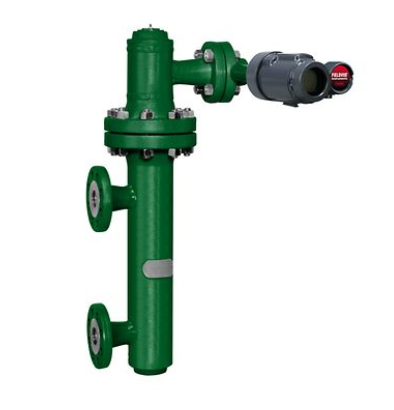

Fisher 249B Level Sensor with FIELDVUE DLC3010 Digital Level Controller
Manufacturer: Emerson – Fisher

The Fisher 249B Level Sensor, combined with the FIELDVUE DLC3010 digital level controller, delivers reliable, accurate level measurement for a wide range of process applications. Designed for high performance in harsh environments, this integrated system offers direct mounting, precise displacer-based level sensing, and smart diagnostics via HART communication. Its robust construction ensures long-term stability and minimal maintenance.

Technical Specifications:

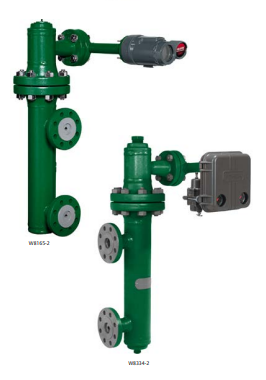

Fisher 249B Level Sensor

• Model: 249B

• Displacer Size: 3” x 14”

• Sensor Length (Center-to-Center): 14" (356 mm)

• End Connection Style: S-3 and F-3 (Upper and Lower Side Connection)

• Sensor Connection Size: 2" Flanged ANSI 150#

• Displacer Material: Stainless Steel 304

• Trim Material: Stainless Steel 316

• Assembly Material: Steel

• Displacer Volume: 1640 cm³ (100 in³)

• Displacer Weight: 4 ¾ lb

• Torque Tube Material: Nickel-Copper Alloy (Standard)


Fisher FIELDVUE DLC3010 Digital Level Controller

• Model: DLC3010

• Mounting: Direct mounting on Fisher 249 Series sensors

• Output Signal: 4–20 mA DC with HART communication protocol

• Case and Cover Material: Low-copper aluminum alloy

• Altitude Rating: Up to 2000 meters (6562 feet)

• Ambient Temperature Range: -40°C to +80°C

• Display: LCD

• Approximate Weight: 2.7 kg
