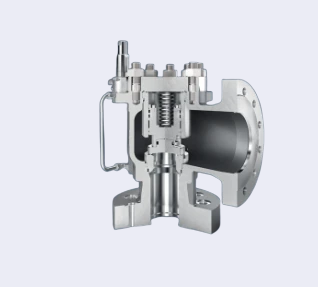

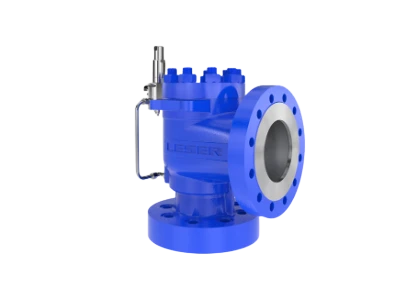

LESER High Efficiency Pilot-Operated Safety Valves

The LESER High Efficiency Pilot-Operated Safety Valves are designed to optimize plant efficiency by providing reliable and customizable pressure relief solutions. These valves are capable of adapting their functional behavior to meet specific operating conditions. With operating pressures up to 97% of the set pressure and back pressures up to 95%, these valves ensure efficient operation with minimal medium loss during the blow-off process. They are ideal for industries requiring precise pressure control, offering high performance and reduced operational losses.

Specifications:

• Manufacturer: LESER

• Model: High Efficiency Pilot-Operated Safety Valves

• Set Pressure:

  • 2.5 - 426 barg (36 - 6,170 psig)

• Temperature Range:

  • -40°C to +200°C (-40°F to +392°F)

• Capacity:

  • Orifice sizes D to T+

• Connections:

  • DIN EN 1092: DN 25 to DN 200

  • ASME B16.5: NPS 1 to NPS 8

• Body Material Options:

  • Carbon Steel

  • Stainless Steel

• Key Features:

  • Operating pressures up to 97% of set pressures

  • Back pressures up to 95% of set pressures

  • Low loss of medium during the blow-off process

  • Adaptable to specific operating conditions

  • Designed for high-efficiency applications in various industries
