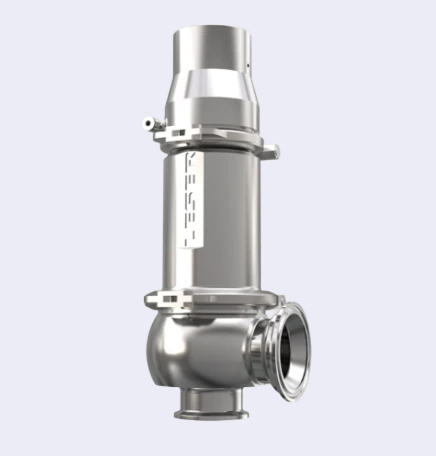

LESER Clean Service Safety Valves

The LESER Clean Service Safety Valves are specifically designed for use in food, beverage, and pharmaceutical industries where hygiene and cleanliness are critical. These valves are optimized for efficient cleaning, featuring a low dead space ratio and a gap-free design for internal parts. With surface qualities up to Ra max = 0.375 µm, they are easy to clean, making them ideal for applications that require CIP (Cleaning in Place) or SIP (Sterilization in Place) procedures. These valves comply with relevant market standards, including FDA, USP VI, and EU directives, ensuring their suitability for stringent regulatory requirements. Additionally, they offer aseptic connection options to match your plant’s specific needs.

Specifications:

• Manufacturer: LESER

• Model: Clean Service Safety Valves

• Set Pressure:

  • 0.1 - 68 barg (1.5 - 986 psig)

• Temperature Range:

  • -45°C to +250°C (-49°F to +482°F)

• Capacity:

  • Orifice sizes C- to P

• Connections:

  • DIN EN 1092: Clamp, threaded, and flange connections DN 15 to DN 100

  • ASME B16.5: NPS 3/4 to NPS 4 1/2

• Body Material:

  • Stainless Steel

• Key Features:

  • Efficient cleaning with low dead space ratio and gap-free design

  • Surface qualities up to Ra max = 0.375 µm

  • Suitable for CIP and SIP processes

  • Compliant with FDA, USP VI, and EU directives

  • Ideal for food, beverage, and pharmaceutical applications

  • Aseptic connection options available for customized plant requirements
