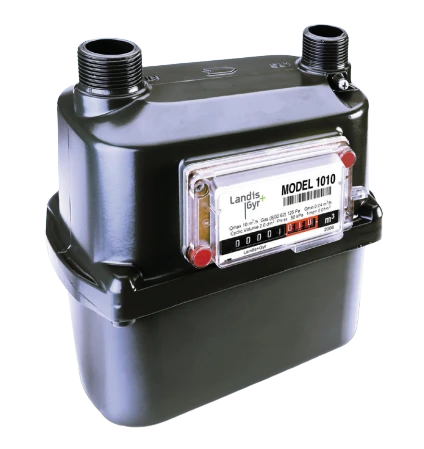

Landis+Gyr Model 1010 HP Gas Meter

The Landis+Gyr Model 1010 HP Gas Meter is a highly efficient and durable gas measurement solution designed for large domestic or light commercial applications. The meter utilizes the compact BK-G6 module, offering a natural gas flow capacity of 10 m³/h at a pressure drop of 125 Pa (with natural gas having a specific gravity of 0.62). Ideal for use with a variety of gases including natural gas, town gas, propane, butane, LPG, and inert gases, the Model 1010 HP provides a reliable and accurate solution for high-flow applications.

Designed to withstand extreme weather conditions, the Model 1010 HP features a fully sealed, UV-stabilized hydrophilic-coated index, and a die-cast aluminum housing. The housing is pre-treated with Alodine and finished with a Woodland Grey polyester powder coat for maximum corrosion protection, ensuring longevity and optimal performance even in harsh environments.

With its innovative design, the Model 1010 HP is pulse-ready, making it easy to retrofit with an additional pulse output module for advanced metering applications. The meter is also equipped with a magnetically driven index that reduces mechanical wear, ensuring long-term durability and accuracy retention. For enhanced user convenience, the Model 1010 HP is available with an optional top reading index, ideal for installations at ground level.

The meter’s design guarantees unparalleled accuracy and long-term stability. It has been rigorously tested to meet global standards, ensuring compliance with EN1359:1999, ANSI B109.1, AG702, and OMIL Recommendation 31. The Landis+Gyr Model 1010 HP Gas Meter is a reliable, high-performance solution for accurate gas metering in large-scale residential and light commercial settings.

Specifications:

• Gas Compatibility:

  • Natural gas

  • Town gas

  • Propane

  • Butane

  • LPG

  • Inert gases (For other gases, consultation with Landis+Gyr is recommended)

• Temperature Range: -10°C to +65°C

• Flow Capacity:

  • 10 m³/h (natural gas at 125 Pa pressure drop, specific gravity 0.62)

• Cyclic Capacity: 0.002 m³ (2 liters)

• Working Pressure: Refer to meter index badge for specific pressure ratings

• Index:

  • Anti-fog, hydrophilic-coated 8-digit index

  • 5 whole cubic meters (white numbers on black wheels)

  • 3 decimal places (white numbers on red wheels)

• Index Drive:

  • Magnetically driven index

  • Low mechanical wear

• Meter Boss Threads:

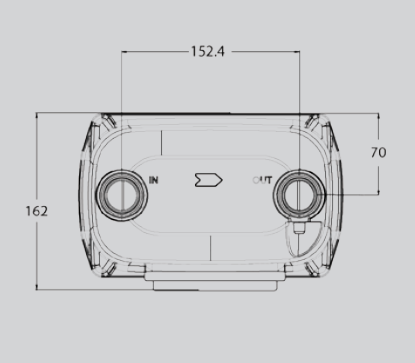

  • Vertical inlet/outlet threads, 1” to BS746 1987 at 152mm (6”) centers

  • 1” 10 Lt. to 3/4” BSP Cap Nut and Liner set available (part number SK5)

• Case Construction:

  • Pressure die-cast aluminum

  • Weight: 2.80 kg

• Pulse Output:

  • Pulse ready, fitted with a magnet in the far right index wheel

  • 1 pulse per 10 liters

  • Pulse retrofittable with IN-Z61 or IN-Z62 pulse module

• Corrosion Protection:

  • Alodine internal and external pre-treatment of castings

  • Baked Woodland Grey polyester powder coat for maximum corrosion protection

• Optional Features:

  • Top-read index

  • Viton o-rings for aggressive gas applications

• Compliance:

  • Designed to meet EN1359 and AG702 standards

Endurance tested to meet European Standard EN1359:1999, ANSI B109.1, AG702, and OMIL Recommendation 31
