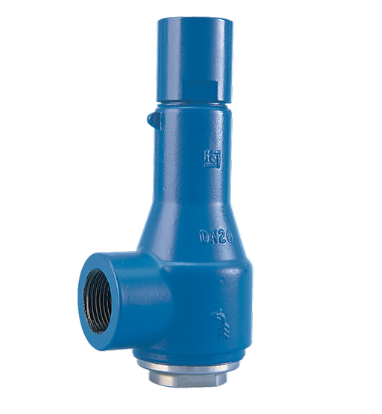

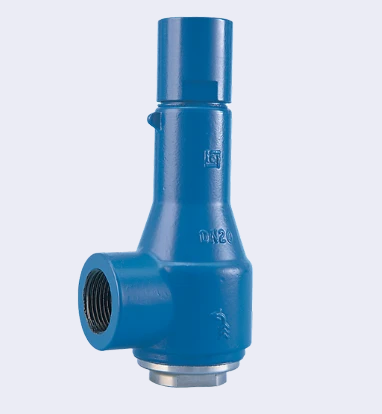

Kunkle Valve Model 716H
High Pressure Safety Relief Valve
The Kunkle Model 716H is a high-pressure safety relief valve designed to provide maximum discharge with its top-guided, unobstructed seat bore and full lift capability. It is ideal for both gas and liquid applications, offering excellent performance in high-pressure systems.
Key Features
Positive Reseating
Achieved via freely pivoting EPDM discs, ensuring reliable reseating for gas and liquid duties up to 150°C.
High Temperature Capacity
Optional Aflas soft seats increase temperature range up to 200°C.
Precision lapped stainless steel trim provides positive reseating for steam duties at higher temperatures.
Connection Options
Available with either threaded or flanged connections for versatile installation options.
Inline Safety Checking
Optional open or packed test lever allows for convenient inline safety checking, ensuring proper valve functionality.
Sealed Dome Option
Alternative sealed dome configuration for applications requiring a pressure-tight seal on the discharge side, such as liquid service.
Applications
Gas and liquid systems under high pressure
Steam systems requiring high-temperature performance
Applications requiring inline safety checking and tight sealing on discharge
Specifications
Temperature Range: Up to 150°C (standard), up to 200°C (with optional Aflas soft seats)
Connection Types: Threaded or flanged
Materials: Stainless steel trim, EPDM or Aflas soft seats
Sealing Options: Sealed dome for pressure-tight liquid service
The Kunkle Model 716H Safety Relief Valve offers reliable performance and long service life in demanding high-pressure applications, ensuring system protection while maintaining operational efficiency.
