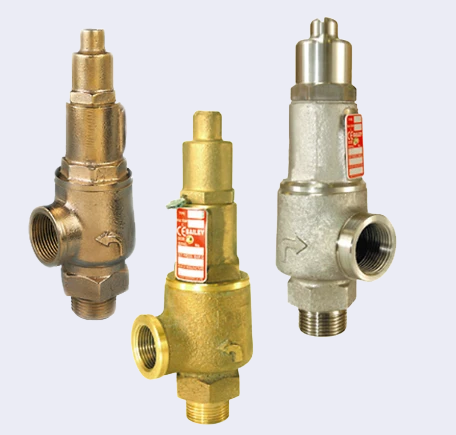

Kunkle Valve Bailey Series 480/485/490

Spring-Operated Liquid Relief Valves

Reliable and versatile liquid relief valves designed for diverse applications, available in bronze, stainless steel, or a combination of both for optimal performance and durability.

Features & Benefits

1. Ease of Maintenance

   • Cartridge Assembly: Fully removable cartridge allows cleaning of seating surfaces without affecting spring settings or relieving pressure.

2. Material Options:

   • Model 480: All-bronze construction for standard applications.

   • Model 485: Bronze body with a renewable stainless steel seat and disc for enhanced durability.

   • Model 490: All-stainless-steel construction for maximum resistance to corrosion and extreme environments.

3. Corrosion Protection

   • Fitted with an ‘O’-ring spindle to shield the spring from corrosive exposure, ensuring longer service life.

Applications
Designed for use in industries requiring precise liquid pressure relief, including chemical processing, marine systems, and general industrial applications.
