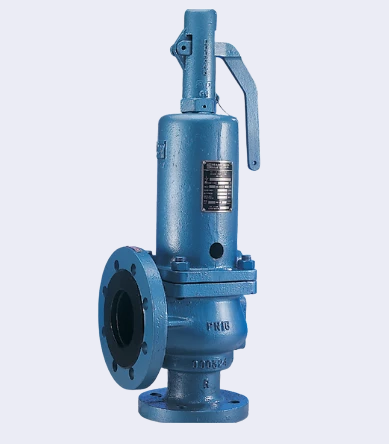

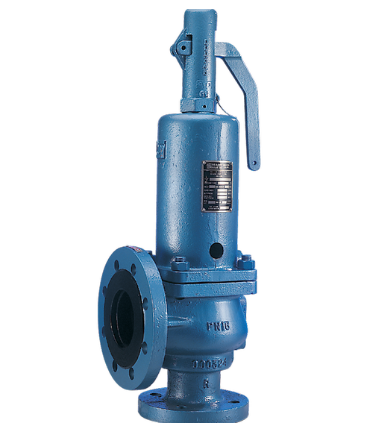

Kunkle Valve Bailey Model 756 Safety Relief Valve

Kunkle Valve Bailey Model 756

Safety Relief Valve

The Kunkle Bailey Model 756 is a high-performance safety relief valve that combines a top-piston guided valve with an unobstructed seat bore and full lift capability, ensuring maximum discharge capacity for efficient system protection.

Key Features

1. Adjustable Blowdown Ring

   • Features an adjustable blowdown ring for precise control over the valve’s operation, ensuring optimal performance and minimal blowback.

2. Compliance with Industry Standards

   • Meets the requirements of BS6759 Part 1, ensuring reliability and compliance with internationally recognized safety standards.

3. Reliable Reseating

   • Freely pivoting disc and precision-lapped stainless steel trim provide positive reseating, making it suitable for steam applications and ensuring tight shutoff.

4. Inline Testing

   • Standardly fitted with a test lever for easy inline testing, allowing for straightforward inspection and maintenance without disassembling the valve.

Applications

• Steam systems

• High-pressure gas and liquid services

• Applications requiring reliable and efficient pressure relief with easy maintenance and testing

Specifications

• Design Type: Top piston-guided valve with unobstructed seat bore

• Blowdown Control: Adjustable blowdown ring

• Compliance: BS6759 Part 1

• Materials: Precision lapped stainless steel trim, freely pivoting disc

• Testing: Standard test lever for inline testing

The Kunkle Bailey Model 756 Safety Relief Valve offers exceptional reliability and high capacity for discharge, ensuring safety in demanding steam and other high-pressure systems while providing ease of maintenance with inline testing capabilities.
