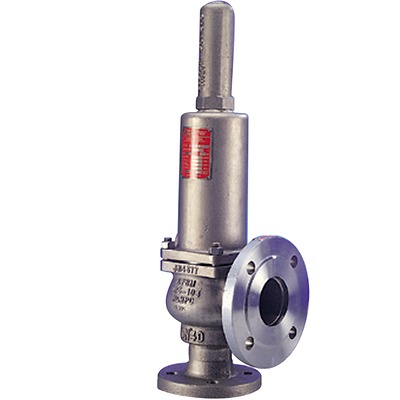

Kunkle Valve Bailey 746 Safety Relief Valve

The Kunkle Valve Bailey 746 is a top-guided, full-lift safety relief valve designed for maximum plant protection. Its unobstructed seat bore ensures the highest possible discharge rates, making it ideal for both liquid and gas applications. The valve is available in conventional or balanced bellows designs to suit a range of operational conditions.

Features

• Freely Pivoting Disc:
  Ensures precise alignment with the nozzle, enhancing reliability and performance.

• Maximum Discharge Rate:
  The full-lift design ensures the highest possible discharge rate, optimizing plant safety and efficiency.

• Specialized Liquid Applications:
  A unique disc design enhances performance specifically for liquid systems.

• Conventional Arrangement:

  • Suitable for applications where built-up pressure does not exceed 5%.

  • Can handle systems with constant superimposed backpressure up to 80%.

• Balanced Bellows Design:

  • Ideal for applications with variable backpressure up to 40%.

  • Suitable for systems where multiple safety relief valves discharge into a common manifold.

• Customizable Cap Options:
  Provides flexibility to meet specific operational or environmental needs.
