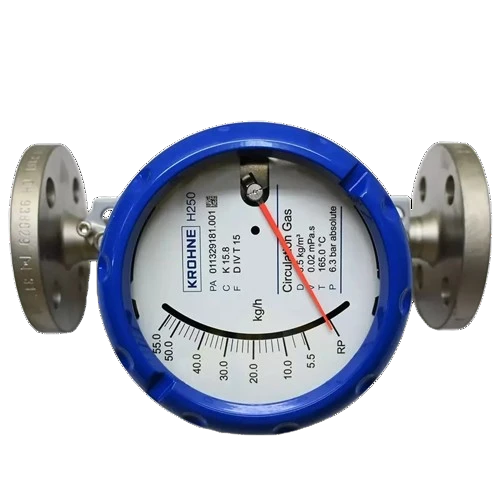

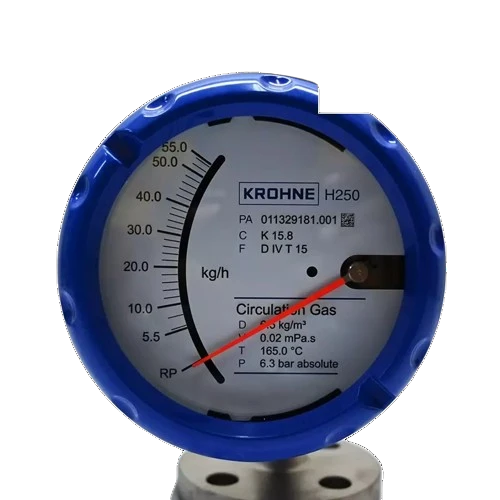

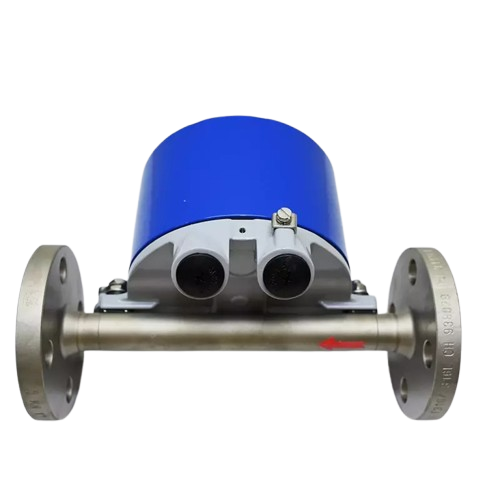

KROHNE PED/G1/4.3/SEP Flow Meter H250/RR/M40

The KROHNE PED/G1/4.3/SEP Flow Meter H250/RR/M40 is a high-performance, precision flow measurement instrument designed for industrial applications where accurate and reliable flow monitoring is critical. This flow meter is part of the H250 series, known for its robust design and versatility in a wide range of fluid types, including liquids and gases.

The KROHNE H250 flow meter employs the variable area measurement principle, using a tapered tube and float to measure the flow rate. The PED/G1/4.3/SEP version is specifically designed to meet the stringent requirements of industries that require reliable flow measurement in hazardous environments, with a focus on safety and performance. This model is ideal for applications in chemical processing, water treatment, oil & gas, and other industries where precise flow measurement is essential.

This flow meter features a G1/4" threaded connection and is designed to operate with fluids at various pressures and temperatures, making it suitable for a variety of process applications. The meter is compact, easy to install, and provides accurate flow readings with minimal maintenance.

Key Features:

1. Variable Area Measurement Principle:

   • Measures flow using a tapered tube and float mechanism, providing clear, reliable, and easy-to-read flow indications.

   • Suitable for both liquid and gas flow measurements.

2. Compact and Versatile:

   • Designed with a G1/4" threaded connection for easy integration into small pipelines or restricted spaces.

   • Versatile design can be used in various industries and process environments.

3. High-Accuracy Flow Measurement:

   • Provides precise flow measurements within the specified range.

   • Reliable for continuous flow monitoring with high repeatability.

4. Durability and Low Maintenance:

   • Built with high-quality materials for durability in challenging environments.

   • Requires minimal maintenance for long-term performance.

5. Easy-to-Read Scale:

   • Equipped with a graduated scale for easy visual inspection and flow rate reading.

   • Simple design for user-friendly operation and installation.

Applications:

• Chemical Processing: Ideal for monitoring the flow of chemicals, solvents, and other fluids in production processes.

• Oil & Gas: Suitable for flow measurement in small pipelines in refineries, fuel systems, and gas transmission.

• Water & Wastewater Treatment: Used for precise monitoring of water and wastewater flows in treatment plants.

• Pharmaceuticals: Flow measurement of liquids and gases used in pharmaceutical manufacturing processes.

• Food and Beverage: Ideal for monitoring flow rates in the production of liquids such as water, syrups, and other processing fluids.

Technical Specifications:

• Brand: KROHNE

• Model: PED/G1/4.3/SEP Flow Meter H250/RR/M40

• Measurement Principle: Variable Area (Tapered Tube with Float)

• Size: G1/4"

• Flow Range: Typically 0.05 L/h to 20 L/h (liquid, varies depending on application)

• Accuracy: ±2% of full scale (depending on fluid type and flow conditions)

• Pressure Rating: Up to 16 bar (depending on the specific application and fluid)

• Temperature Range: -20°C to +80°C (depends on material construction and fluid type)

• Material: Polycarbonate or glass tube, stainless steel or brass housing

• Mounting: Inline installation with flow direction indicated

• Scale Type: Manual graduated scale for visual flow rate reading

• Connection Type: G1/4" threaded connection (NPT or BSP available based on requirements)

• Display: Visual scale display (manual, no electrical components)

• Power Supply: None required (mechanical design, no electrical power needed)
