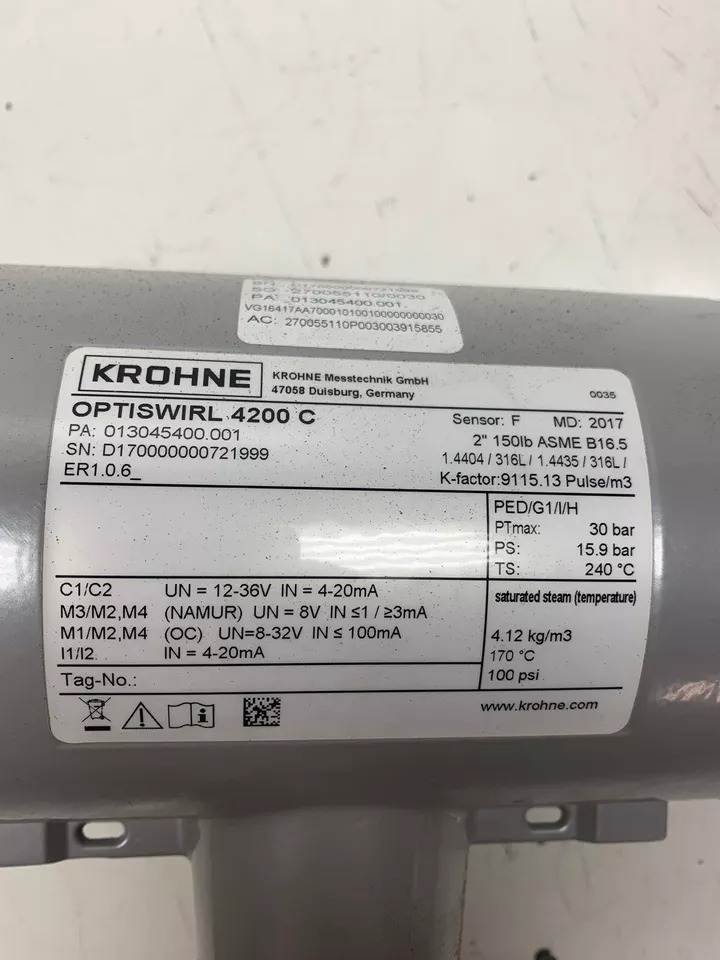

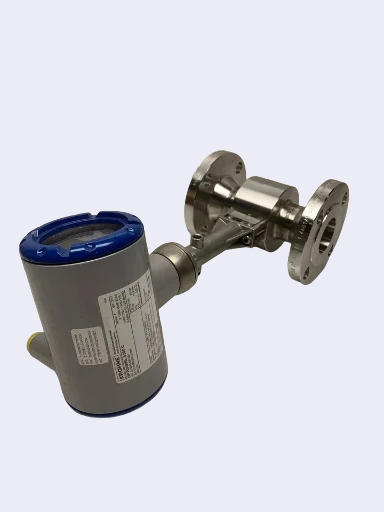

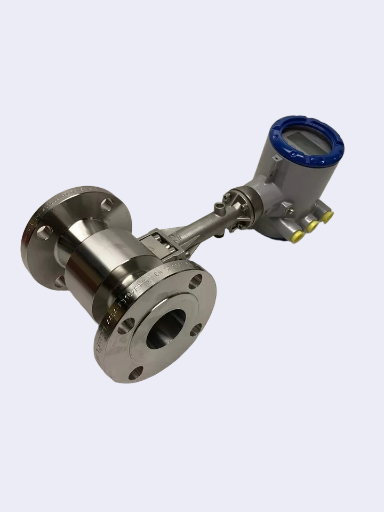

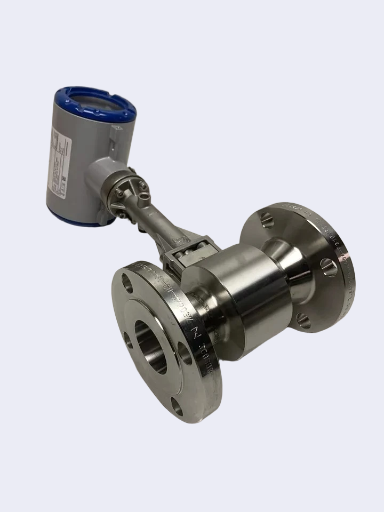

KROHNE OptiSwirl 4200 C Vortex Flow Meter

The KROHNE OptiSwirl 4200 C Vortex Flow Meter is a highly accurate and reliable flow measurement device designed for a wide range of industrial applications. This vortex flow meter utilizes the KROHNE OptiSwirl technology, which enables precise measurement of both liquids and gases with exceptional accuracy. It is ideal for applications where high performance, robustness, and low maintenance are crucial.

The OptiSwirl 4200 C model is designed to work in demanding environments, offering an advanced design that helps minimize the effects of vibrations, temperature fluctuations, and other variables that could affect the measurement. With a compact and reliable design, it is suitable for measuring flow rates in various industries such as chemical, oil & gas, water treatment, and food & beverage.

With its 2" 150lb ASME B16.5 flange connection, the OptiSwirl 4200 C can be easily integrated into existing pipelines with standard ASME B16.5 fittings, making installation and system compatibility straightforward.

Key Features:

1. High Accuracy and Reliability:

   • Utilizes advanced OptiSwirl technology for precise and reliable flow measurement of liquids and gases.

   • Provides high accuracy even in challenging flow conditions.

2. Wide Range of Applications:

   • Suitable for a variety of applications, including chemical, water treatment, food & beverage, and power generation.

   • Capable of handling different types of fluids and gases.

3. Durable and Robust Design:

   • Designed to withstand harsh industrial environments.

   • Resistant to vibration and thermal fluctuations, ensuring reliable performance over time.

4. Easy Installation:

   • Comes with 2" 150lb ASME B16.5 flange connection, ensuring easy installation in most systems.

   • Suitable for integration into both new and existing pipelines.

5. Minimal Maintenance:

   • Maintenance-friendly with no moving parts, which reduces wear and tear, lowering operational costs.

   • Long-lasting performance with low maintenance requirements.

Applications:

• Chemical and Petrochemical Industry: Accurate flow measurement of chemicals, solvents, and gases in production processes.

• Oil & Gas: Flow measurement of crude oil, natural gas, and refinery products.

• Water Treatment: Monitoring flow rates in water purification, wastewater treatment, and distribution systems.

• Food & Beverage: Measurement of liquid flows in production lines, such as juices, syrups, and dairy products.

• Power Generation: Flow measurement in steam and cooling water systems.

Technical Specifications:

• Manufacturer: KROHNE

• Model: OptiSwirl 4200 C

• Size: 2-inch (DN50)

• Pressure Rating: 150lb ASME B16.5 flange connection

• Flow Measurement Principle: Vortex shedding technology

• Flow Range: Suitable for a wide range of flow rates (typically from 0.3 m/s to 25 m/s)

• Accuracy: ±1% of the measured flow

• Temperature Range: -40°C to +200°C (depending on model and process conditions)

• Material: Stainless steel (wetted parts)

• Connection Type: 2" 150lb ASME B16.5 flange

• Power Supply: 24 VDC

• Communication Protocols: HART, Modbus (optional)

• Ingress Protection: IP65 or IP67 (depending on configuration)

• Certifications: CE, ATEX (optional, depending on application)

• Approvals: PED, FM, CSA (depending on configuration and region)
