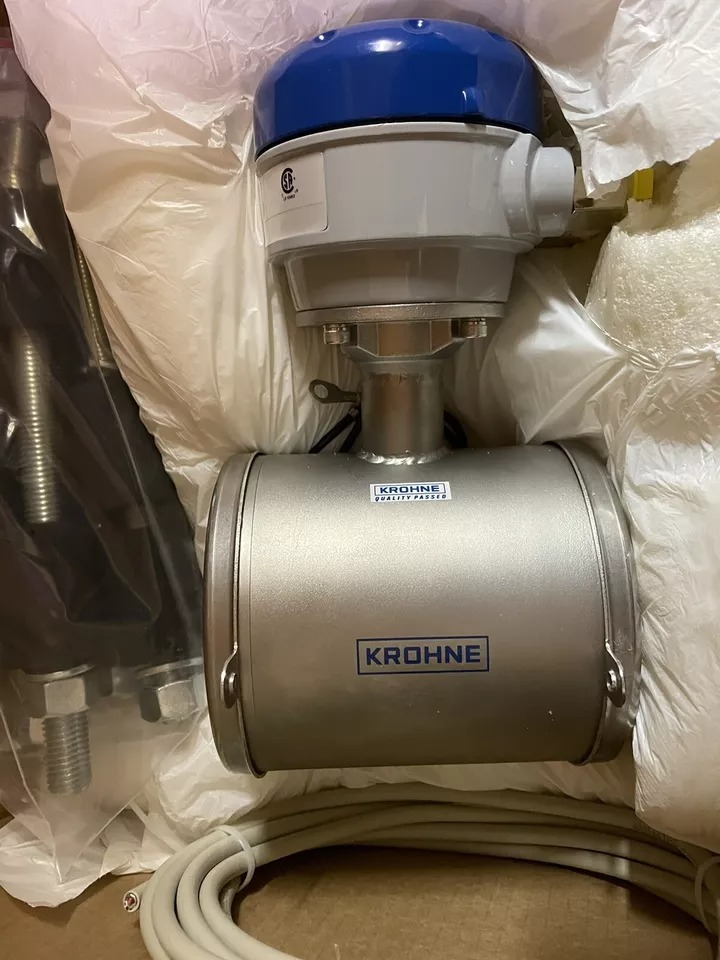

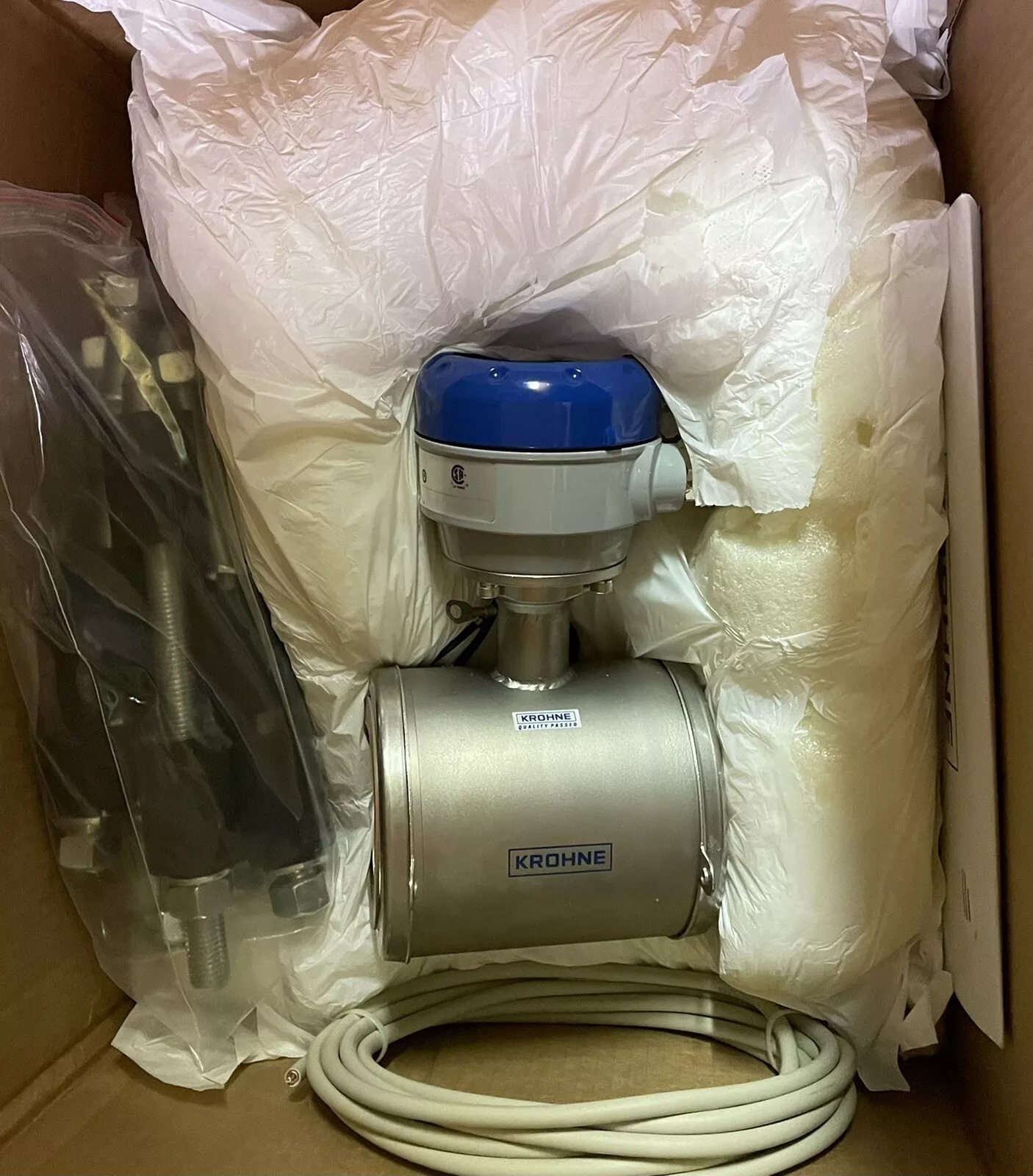

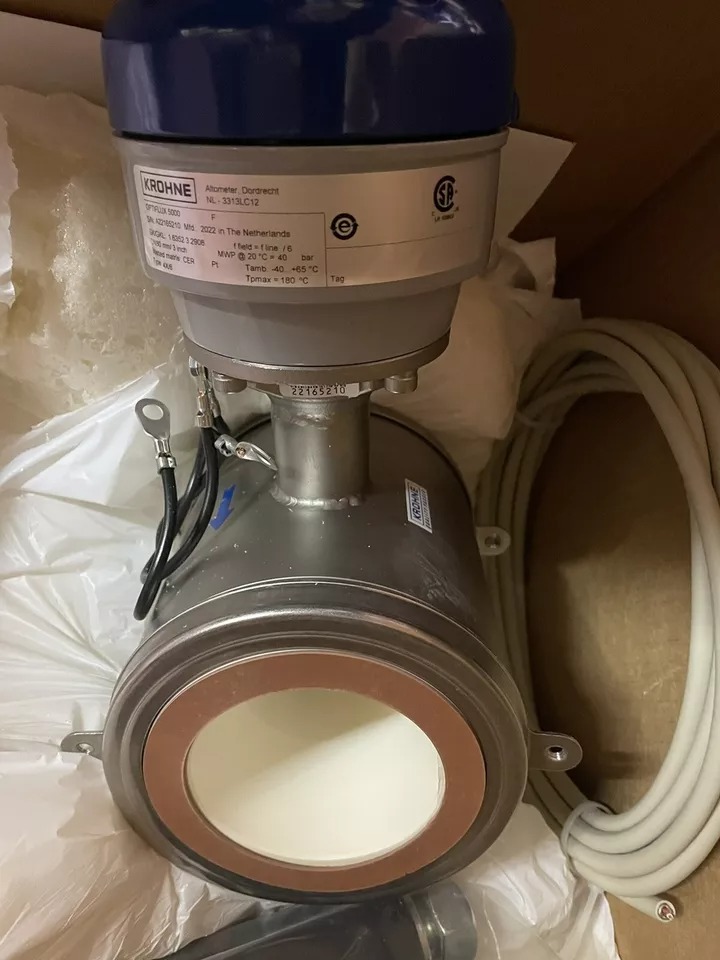

KROHNE Optiflux 5000 F Electromagnetic Flow Meter

The KROHNE Optiflux 5000 F Electromagnetic Flow Meter is a highly accurate and reliable instrument designed for precise flow measurement in a wide range of industrial applications. It is engineered with advanced electromagnetic technology, which allows it to measure the flow of conductive liquids with great accuracy, making it suitable for various processes in industries like chemical, food and beverage, water treatment, and many others.

With a DN80 (3”) size, the Optiflux 5000 F is built for medium to large flow rates and is equipped with an Altometer feature, enabling real-time monitoring and measurement of the flow. The electromagnetic measurement principle ensures no moving parts, which significantly reduces wear and tear, making this flow meter highly durable and low-maintenance.

The Optiflux 5000 F also offers flexible integration with existing systems, and its advanced features like its multi-parameter display and digital communication options make it ideal for modern process control and monitoring environments.

Key Features:

1. Electromagnetic Measurement Principle:

   • Precise measurement of conductive fluids without moving parts, which minimizes wear and increases reliability.

   • Suitable for a wide range of conductive liquids, including water, chemicals, and slurries.

2. DN80 (3”) Size:

   • Designed for medium to large flow measurement with DN80 pipe size, offering high accuracy across various flow rates.

3. Altometer Integration:

   • Includes an Altometer feature for monitoring and measuring flow at different levels or heights, ensuring reliable flow data across applications that require height adjustments.

4. Durable and Low Maintenance:

   • No moving parts design ensures longer life and minimal maintenance compared to traditional flow meters, reducing downtime and service costs.

5. Wide Range of Applications:

   • Ideal for industries such as water and wastewater treatment, chemical processing, food and beverage, and pharmaceuticals, where accurate flow measurement is crucial.

6. Flexible Integration:

   • Compatible with digital communication protocols like HART, Modbus, and PROFIBUS for seamless integration into control systems.

7. Multi-parameter Display:

   • Allows users to view multiple flow parameters simultaneously, ensuring easy operation and real-time monitoring.

Applications:

• Water and Wastewater Treatment:

  • Monitoring and controlling the flow of water and wastewater in treatment plants.

• Chemical Processing:

  • Accurate measurement of chemicals and other conductive liquids used in chemical processing.

• Food and Beverage Industry:

  • Flow measurement of liquid ingredients and additives in food production.

• Pharmaceutical Manufacturing:

  • Ensuring precise flow control for pharmaceutical liquids and formulations.

Technical Specifications:

• Manufacturer: KROHNE

• Model: Optiflux 5000 F

• Size: DN80 (3”)

• Flow Measurement Principle: Electromagnetic

• Material: Stainless Steel (for the flow sensor)

• Accuracy: ±0.2% of measured value

• Flow Range: 0.3 m/s to 12 m/s

• Pressure Rating: Up to 16 bar (depending on installation)

• Temperature Range: -10°C to +80°C

• Electrode Material: Hastelloy C, Platinum or Titanium (depending on the application)

• Display: Local multi-parameter display (optional)

• Power Supply: 24 VDC (standard)

• Output: 4-20 mA, Pulse output (optional)

• Communication Protocols: HART, Modbus, PROFIBUS (depending on configuration)

• Protection Class: IP67 (sensor)

• Installation: Horizontal or vertical pipe installation

• Approval: CE, UL, ATEX (depending on configuration)
