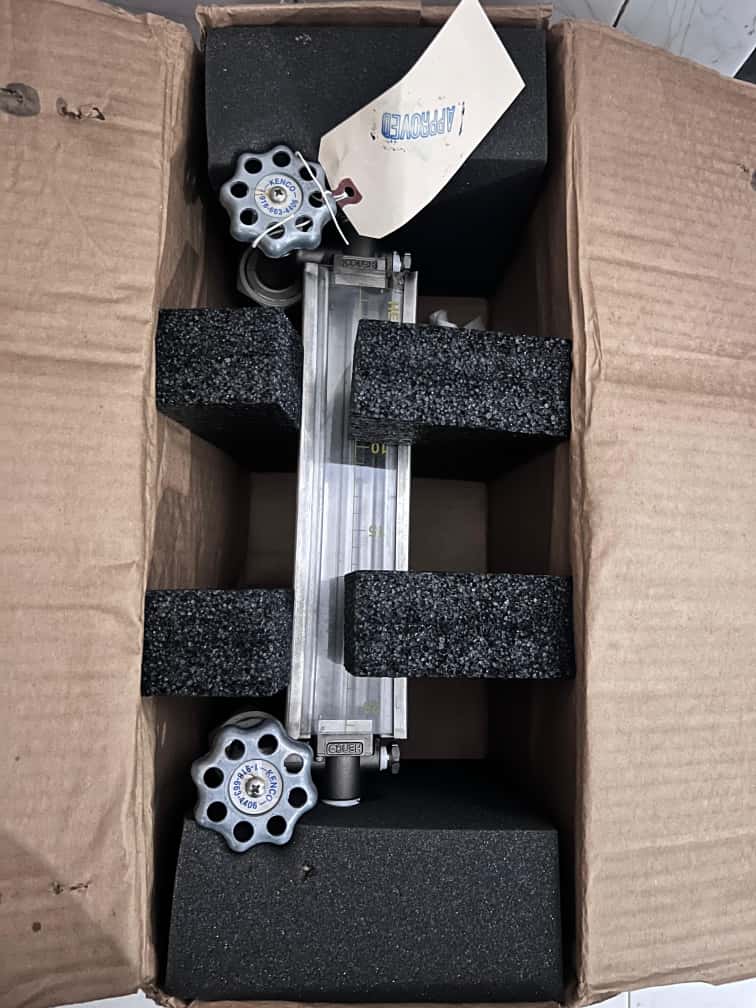

Kenco K9900 Series Level Gauge
Rp123000.00
Kenco K9900 Series Level Gauge
Description

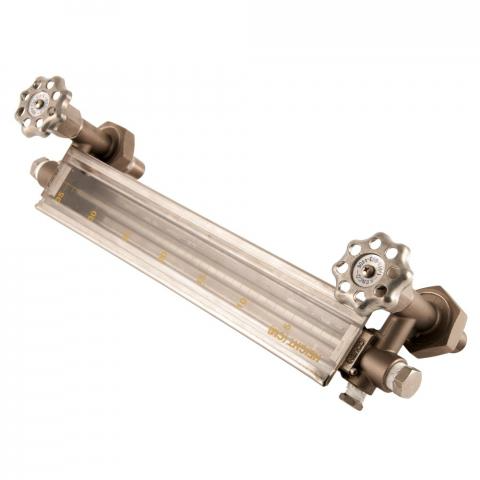

The Kenco K9900 Series Level Gauge is a patented, armored tubular liquid level gauge engineered for reliability, ease of installation, and operator safety. Its innovative cast body design simplifies field installation and eliminates alignment issues commonly found with conventional sight glasses. The gauge features floating misalignment unions that accommodate up to ±6 mm variation in process connection centerlines, along with integral offset pattern valves incorporating ball check shutoffs for added safety. In-line ½″ FNPT vent and drain ports allow easy maintenance. The K9900 Series provides a durable, low-maintenance, and cost-effective solution for a wide range of liquid level applications.
Specifications
Parameter | Specification |
Model / Series | K9900 Series |
Type | Armored tubular liquid level gauge |
Process Connection | ½″ MNPT, ¾″ MNPT, or flanged (½″ to 2″) |
Floating Misalignment Tolerance | ±6 mm (±¼″) |
Maximum Working Pressure | Up to 500 psig (34.5 bar) |
Sight Tube Size / Material | ⅝″ OD glass, optional redline glass |
Seal Materials | Fluorocarbon, Aflas, Buna-N, FEP-encapsulated Silicone, Ethylene Propylene |
Vent / Drain Connections | ½″ FNPT (in-line) |
Optional Side Port | ¼″ FNPT (instrument connection) |
Body Construction | Cast body with armored frame |
Shield Options | Clear polycarbonate, height or rate scales, expanded metal guard |
Mounting Orientation | Vertical |
Service Applications | Liquid level, interface, and general process indication |
Operating Temperature Range | Dependent on glass and seal material (typically up to 400 °F / 204 °C) |
Certifications | ABS (marine) certified |
Maintenance Features | Integral valves with ball check shutoffs; removable sight tube |
