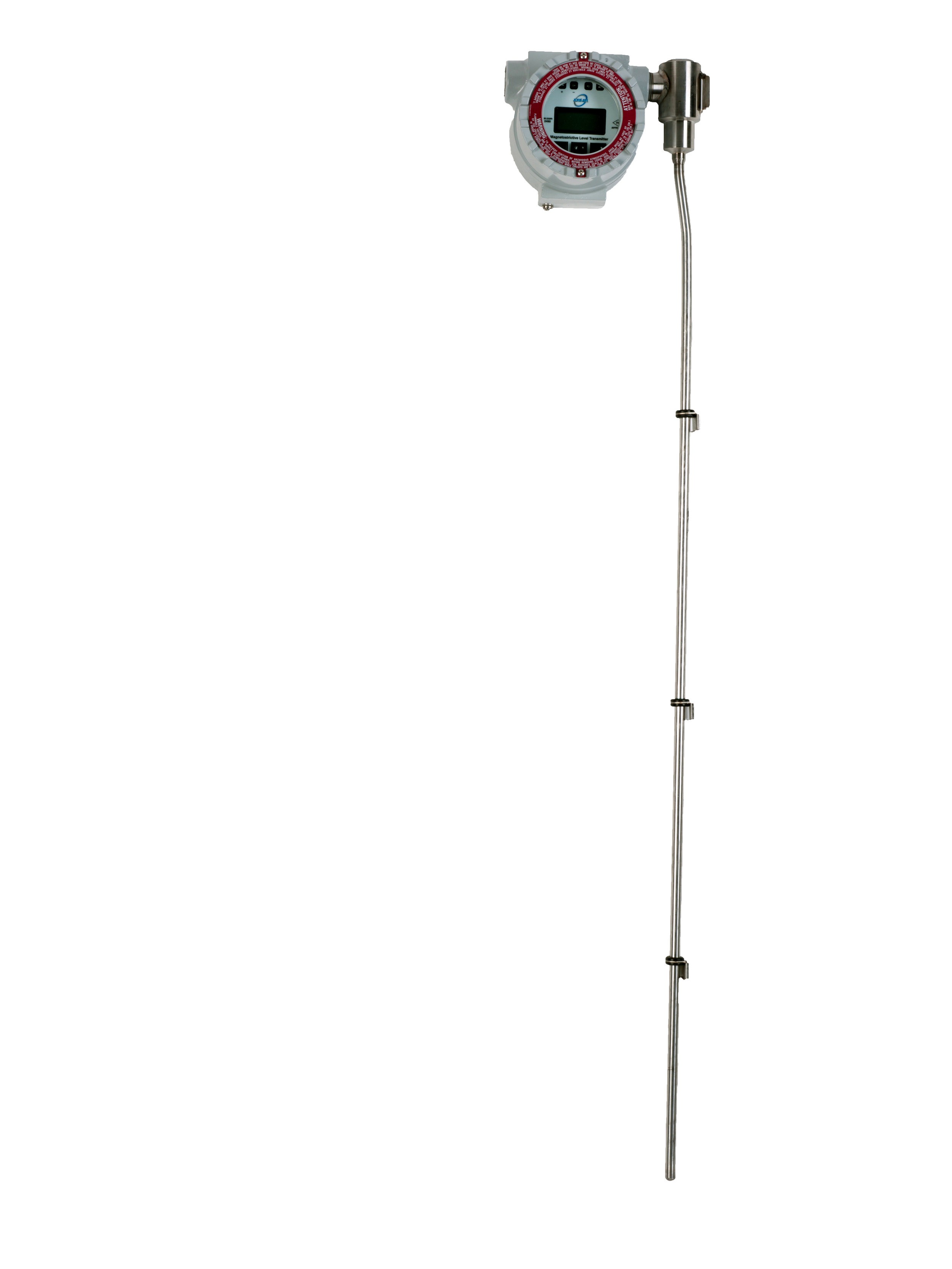

Jogler JLT-6000 Magnetostrictive Level Transmitter

Description

The Jogler JLT-6000 Magnetostrictive Level Transmitter is a high-precision instrument designed for accurate liquid level measurement in industrial applications. Utilizing magnetostrictive sensing technology, this transmitter provides real-time level measurement with exceptional accuracy and repeatability. It is designed for direct insertion into storage tanks, process vessels, or external mounting on magnetic level gauges.

The JLT-6000 series is factory-calibrated for easy installation and setup, ensuring seamless integration into existing process control systems. It supports 4-20 mA output with HART communication, enabling remote monitoring and diagnostics. Additionally, it offers intrinsically safe and explosion-proof configurations, making it suitable for hazardous environments.

The JLT-6000 is FM-approved for use in both the United States and Canada and meets NEMA Type 4X enclosure standards for protection against harsh environmental conditions.

Technical Specifications

1. Manufacturer & Model

• Manufacturer: Jogler, Inc.

• Model: JLT-6000 Magnetostrictive Level Transmitter

2. Sensor & Measurement

• Measurement Range: 6.00 to 300 inches

• Accuracy: ±0.015 inches

• Repeatability: 0.001% of full span

• Linearity: 0.020% of full span

• Rate of Change (Max): 6 inches per second

• Refresh Rate: 10 times per second

3. Electrical & Communication

• Input Voltage: 12-30 VDC (Nominal: 24 VDC)

• Output Signal: 4-20 mA with HART communication

• Power Consumption: 0.66 Watts (30 VDC x 0.022A)

• Error Signal Output: 3.60 mA or 22.0 mA

• Display: 2-line, 8-character LCD

• Interface: 3-button keypad, HART, or PACTware software

4. Environmental & Operating Conditions

• Ambient Temperature Range: -40°F to +160°F (-40°C to +70°C)

• Standard Process Temperature Range: -40°F to +235°F (-40°C to +114°C)

• High-Temperature Version: -40°F to +400°F (-40°C to +214°C)

• Humidity: 0-99% (non-condensing)

5. Pressure & Enclosure Ratings

• Process Pressure: 300 PSIG @ 100°F (for LGT model)

• Enclosure Type: Single compartment

• Material: Cast aluminum (optional 316 SS)

• Finish: Polyester powder coat

• Protection Rating: FM (Canada & US), NEMA Type 4X

6. Hazardous Area Approvals

The JLT-6000 is FM-approved and meets hazardous location requirements, ensuring safe operation in explosive environments:

• Intrinsically Safe Classification:

  • Class I, Division 1, Groups A, B, C, & D

  • Class II, Division 1, Groups E, F, & G

  • Class III

• Explosion-Proof Classification:

  • Class I, Division 1, Groups B, C, & D

  • Class II, Division 1, Groups E, F, & G

Key Features

• Highly Accurate and Reliable: ±0.015-inch accuracy with fast response times.

• Flexible Installation Options: Can be inserted directly into a tank or externally mounted on magnetic level gauges.

• User-Friendly Configuration: Supports HART communication, keypad controls, and LCD display for easy setup.

• Intrinsically Safe & Explosion-Proof: Certified for hazardous locations in industrial environments.

• Maintenance-Free Operation: Factory-calibrated and designed for long-term use with zero maintenance.
