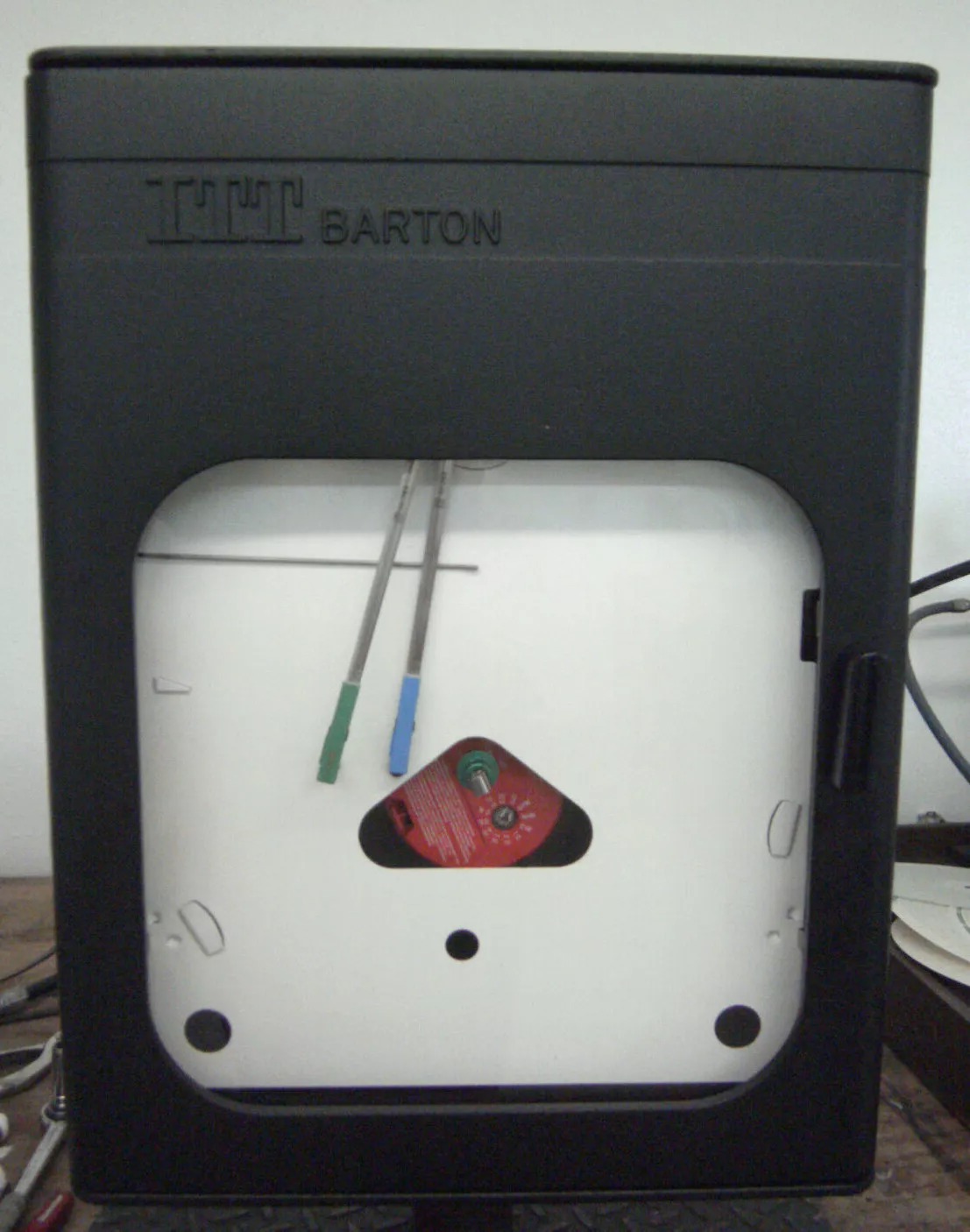

ITT Barton Temperature and Pressure Chart Recorder

Description of ITT Barton Chart Recorder

The ITT Barton Chart Recorder is a reliable and versatile device designed for precise measurement and recording of various process parameters such as pressure, temperature, and differential pressure. Known for its durability and high accuracy, the Barton chart recorder is commonly used in industries like oil and gas, chemical processing, and power generation. This recorder provides a permanent visual record of process data, which is valuable for operational analysis, regulatory compliance, and troubleshooting.

Equipped with a mechanical pen system, the recorder translates measurement inputs into graphical trends on circular charts. The device operates in harsh environments with minimal maintenance, offering consistent performance even under demanding conditions.

General Specifications

• Measurement Parameters:

  • Pressure: Up to 30,000 PSI

  • Differential Pressure: From 0-10 inches H2O to 1,000 PSI

  • Temperature: Varies by sensor type, typically up to 1,200°F (649°C)

• Accuracy:

  • Pressure: ±0.5% of full scale

  • Temperature: ±1.0% of full scale

• Chart Size:

  • Standard sizes: 8-inch or 12-inch circular charts

• Number of Pens:

  • Single, dual, or triple pen configurations available for multi-variable recording

• Materials:

  • Case: Rugged, weatherproof aluminum or stainless steel housing

  • Wetted Parts: Stainless steel or other corrosion-resistant materials

• Operating Temperature:

  • Typically from -40°F to +185°F (-40°C to +85°C), depending on configuration

• Mounting Options:

  • Wall, panel, or pipe-mounted configurations for flexible installation

• Certifications:

  • Compliant with industry standards, such as NACE MR0175 for sour service (optional configurations)
