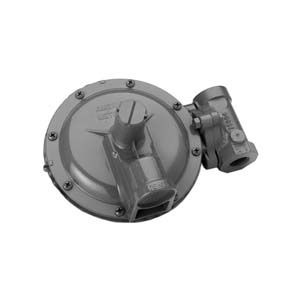

Honeywell 1800B2 Residential Medium Pressure Regulator
Rp123000.00
The Honeywell 1800B2 Residential Medium Pressure Regulator is a versatile and reliable solution designed to regulate medium-pressure gas flow for residential and small commercial applications. This regulator offers multiple configurations, including full relief, partial relief, or no relief, providing flexibility to meet various installation needs. The high-capacity B2-HC variant is non-relieving, making it ideal for more demanding applications.
The 1800B2 features several body variants such as 90° (right-angle), 180° (straight-flow), and offset valve body options, ensuring adaptability for a range of installation scenarios. It can be mounted in either vertical or horizontal orientations, facilitating integration into existing systems. The regulator is compatible with a broad selection of gases, including natural gas, air, nitrogen, carbon dioxide, propane vapor, and other non-corrosive gases.
Additionally, the 1800B2 regulator includes optional features like an Elevation Compensation orifice (E.V.) and a vent screen splashguard, further enhancing its performance in different environments. It complies with ANSI Code B109.4-1998 and CGA Service-Type Regulator Specification CAN/CGA-6.18-M95, ensuring both safety and reliability.
Specifications:
Manufacturer: Honeywell
Model: 1800B2 Residential Medium Pressure Regulator
Body Variants:
90° (Right Angle)
180° (Straight-Flow)
Offset Valve Body
Pressure Relief Options:
Full Relief
Partial Relief
No Relief (B2-HC High Capacity Version is Non-Relieving)
Operating Temperature Range: -20°F to +150°F (-30°C to +65°C)
Outlet Pressure Range: 3.5” WC to 2 PSIG (8.7 - 138 mbar)
Mounting Orientation: Vertical or horizontal
Gas Compatibility:
Natural gas
Air
Nitrogen
Carbon dioxide
Propane vapor
Other non-corrosive gases
Optional Features:
Elevation Compensation Orifice (E.V.)
Vent Screen Splashguard
Compliance:
ANSI Code B109.4-1998
CGA Service-Type Regulator Specification CAN/CGA-6.18-M95
