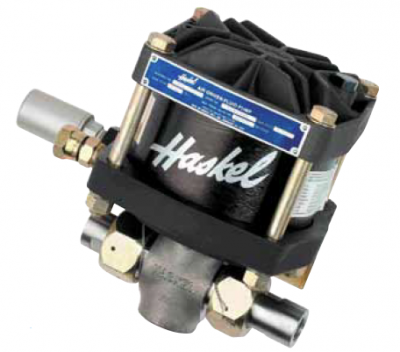

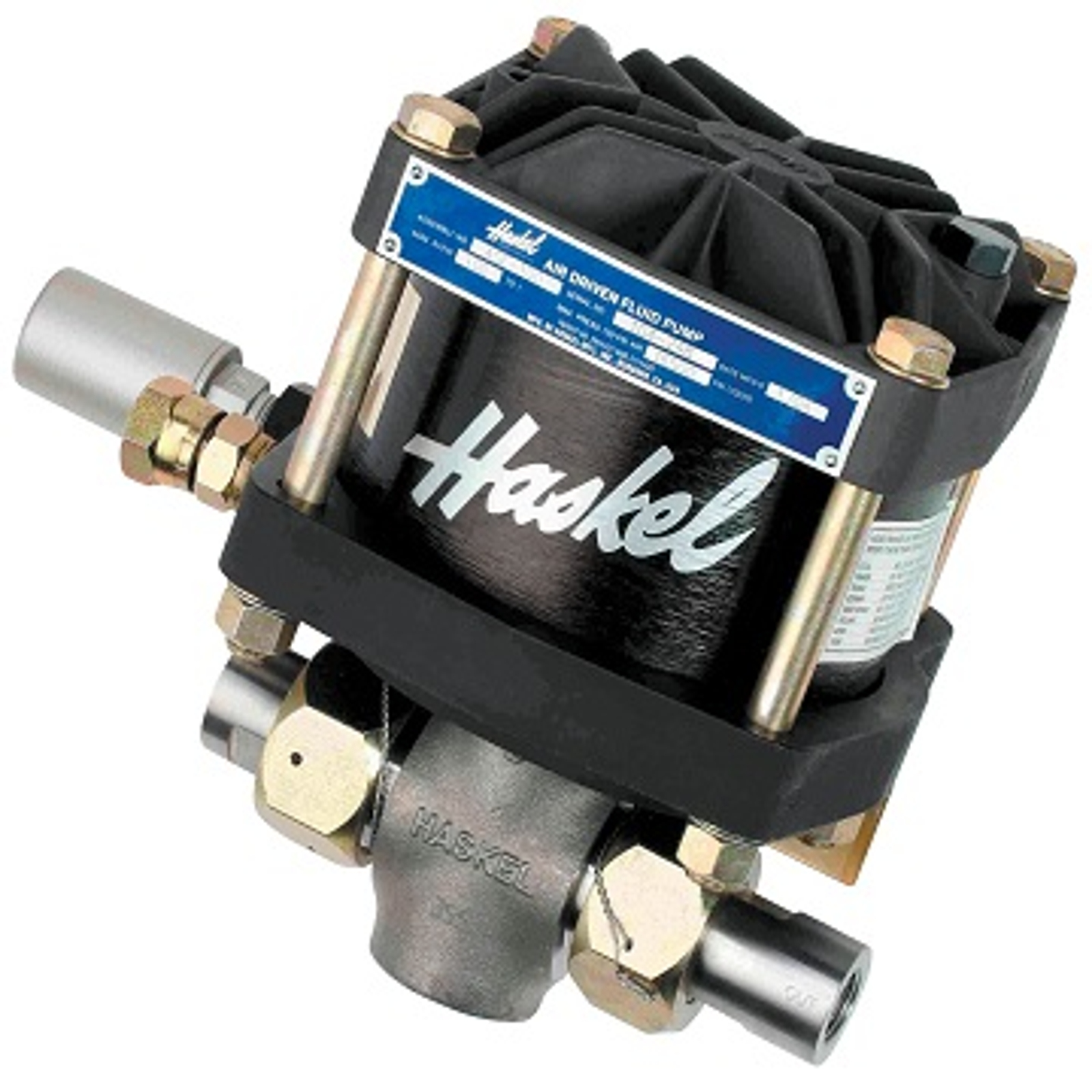

Haskel Model AW-B15 — 1.5 HP Air-Driven Liquid Pump

Haskel Model AW-B15 — 1.5 HP Air-Driven Liquid Pump

The Haskel Model AW-B15 is a high-capacity air-driven liquid pump engineered for demanding industrial operations requiring dependable high-pressure output. Featuring a nominal pressure ratio of 15:1 and a single air head design, the AW-B15 efficiently boosts liquid pressures up to 2400 PSIG, delivering both strong performance and exceptional operational reliability.

Built on Haskel’s proven pneumatic drive technology, the AW-B15 ensures safe and spark-free operation, eliminating hazards associated with heat or electrical ignition. Its infinitely adjustable cycling speed and ability to stall at a preset pressure without additional energy consumption make it ideal for continuous or intermittent pressure-holding applications. The pump’s robust construction, compact footprint, and low maintenance requirements provide long-term reliability in harsh industrial environments.

The AW-B15 is compatible with most liquids and liquefied gases, and can be customized with alternative drive gases such as sour gas, natural gas, boil-off gas, or nitrogen. Equipped with an unbalanced cycling spool for immediate response to system pressure changes and no required air-line lubrication, this pump delivers consistent performance while minimizing operating costs. Units can be manufactured to meet ATEX, CE, and NACE standards for enhanced safety and compliance.

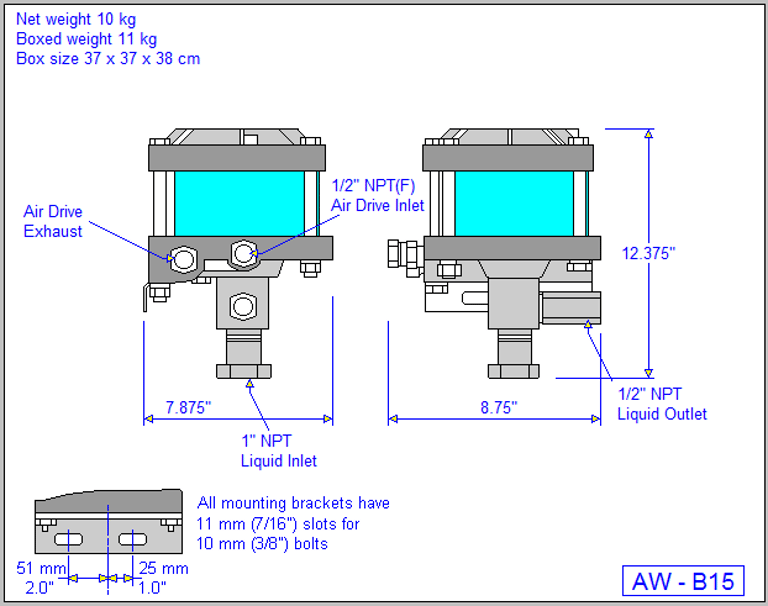

Technical Specifications

Performance

• Power Rating: 1.5 HP

• Nominal Pressure Ratio: 15:1

• Actual Area Ratio: 17:1

• Maximum Air Supply Pressure: 150 PSIG

• Maximum Outlet Pressure (Continuous/Intermittent): 2400 PSIG

• Maximum Cycling Rate: 80 cycles/min

• Displacement per Cycle: 2.70 cu. in.

• Maximum Flow: 810 cu. in./min

Typical Performance @ 100 PSIG Air Supply

• 598 in³/min at 750 PSIG

• 200 in³/min at 1600 PSIG

Construction Materials

• Pump Section: Nickel-plated steel & stainless steel

• Plunger: 440C stainless steel

• Non-Metallic Components: Urethane, Buna-N, PTFE

Drive & Operational Characteristics

• Air Head: Single air-driven

• Operation: Safe pneumatic drive; no heat or spark risk

• Control: Variable cycling speed; stalls at set pressure without power draw

• Automation: Easily automated with available control options

• Air-Lubrication Requirement: None (reduces cost and contamination risk)

• Response: Unbalanced cycling spool ensures rapid reaction to pressure changes

• Compliance Options: ATEX, CE, NACE

Application Compatibility (Service Codes)

• Service Code 1: Petroleum-based oils, kerosene, ethylene glycol, water with 5% soluble oil

• Service Codes 2–6: Not Recommended (N/R)
