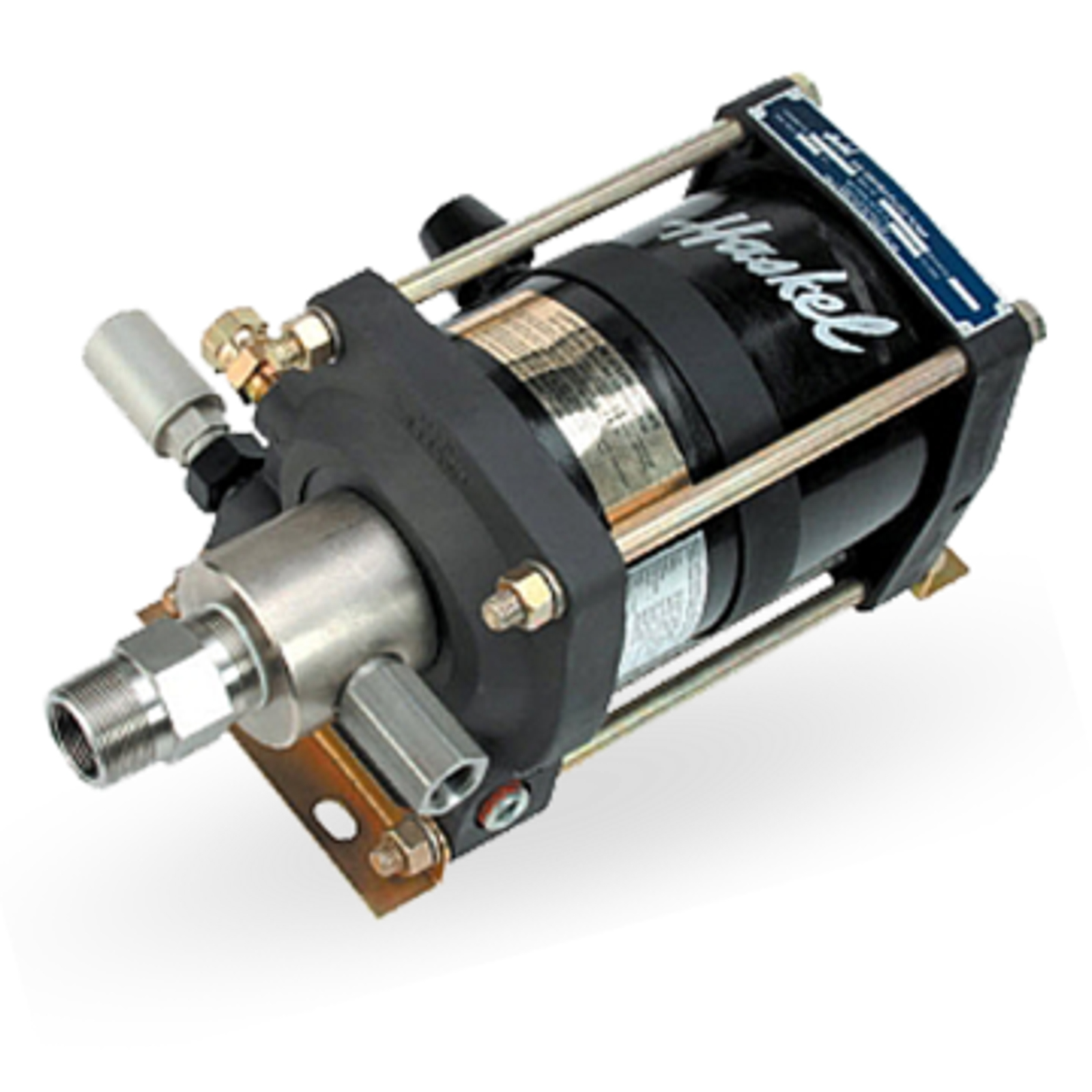

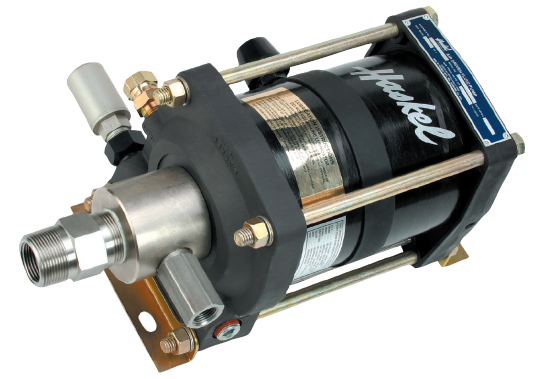

Haskel Model ASFD-B60 — 2.2 HP Air-Driven Liquid Pump
Rp123000.00
The Haskel Model ASFD-B60 is a high-pressure, air-driven liquid pump engineered to deliver outstanding performance and reliability in demanding process environments. Featuring an impressive nominal ratio of 60:1 and a single air head design, the ASFD-B60 efficiently boosts liquid pressure up to 6500 PSIG, making it an ideal solution for applications requiring extremely high and stable hydraulic output.
Built on Haskel’s proven pneumatic technology, this pump ensures safe, spark-free operation with no heat or flame risk—perfect for hazardous or electrically sensitive areas. Its infinitely variable cycling speed and ability to stall at a preset pressure without consuming energy provide exceptional efficiency and control. Designed for seamless automation, the unit supports multiple modification and control options to integrate easily into industrial systems.
Constructed from corrosion-resistant stainless steel with high-grade non-metallic components, the ASFD-B60 offers long service life, minimal maintenance requirements, and high resistance to aggressive fluids. No air-line lubrication is required, reducing operating costs and preventing system contamination. Optional ATEX, CE, and NACE compliance certifications make this model suitable for harsh industrial, offshore, and chemical processing environments.
Technical Specifications
Performance
Power Rating: 2.2 HP
Air Head Configuration: Single
Nominal Pressure Ratio: 60:1
Actual Area Ratio: 69:1
Maximum Air Supply Pressure: 100 PSIG
Maximum Outlet Pressure (Continuous/Intermittent): 6500 PSIG
Maximum Cycles: 80 cycles/min
Displacement per Cycle: 1.34 cu. in.
Maximum Flow: 369 cu. in./min
Typical Performance @ 100 PSIG Air Supply
348 in³/min at 1000 PSIG
152 in³/min at 5500 PSIG
Construction Materials
Pump Section: All stainless steel
Plunger: 15-5 PH stainless steel
Non-Metallic Components: UHMWPE, Viton, PTFE, Ryton
Operational Features
Safe pneumatic operation with no heat, flame, or spark hazard
Infinitely variable cycling speed for precise flow and pressure control
Stalls at set pressure without power consumption
Reliable stop/start operation
Easily automated through available control and modification options
Suitable for most liquids and liquefied gases
Alternative gas drive options: sour gas, natural gas, nitrogen, boil-off gases
Compact, robust, and low-maintenance design
No air-line lubrication required
Unbalanced cycling spool for rapid response to pressure changes
Optional ATEX, CE, and NACE certification
Application Compatibility (Service Codes)
Service Code 1: Petroleum-based oils, kerosene, ethylene glycol, water with 5% soluble oil
Service Code 2: Plain water, diesel fuel
Service Codes 3–6: Not Recommended (N/R)
