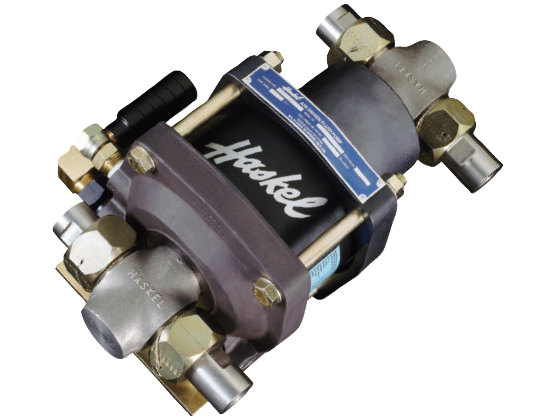

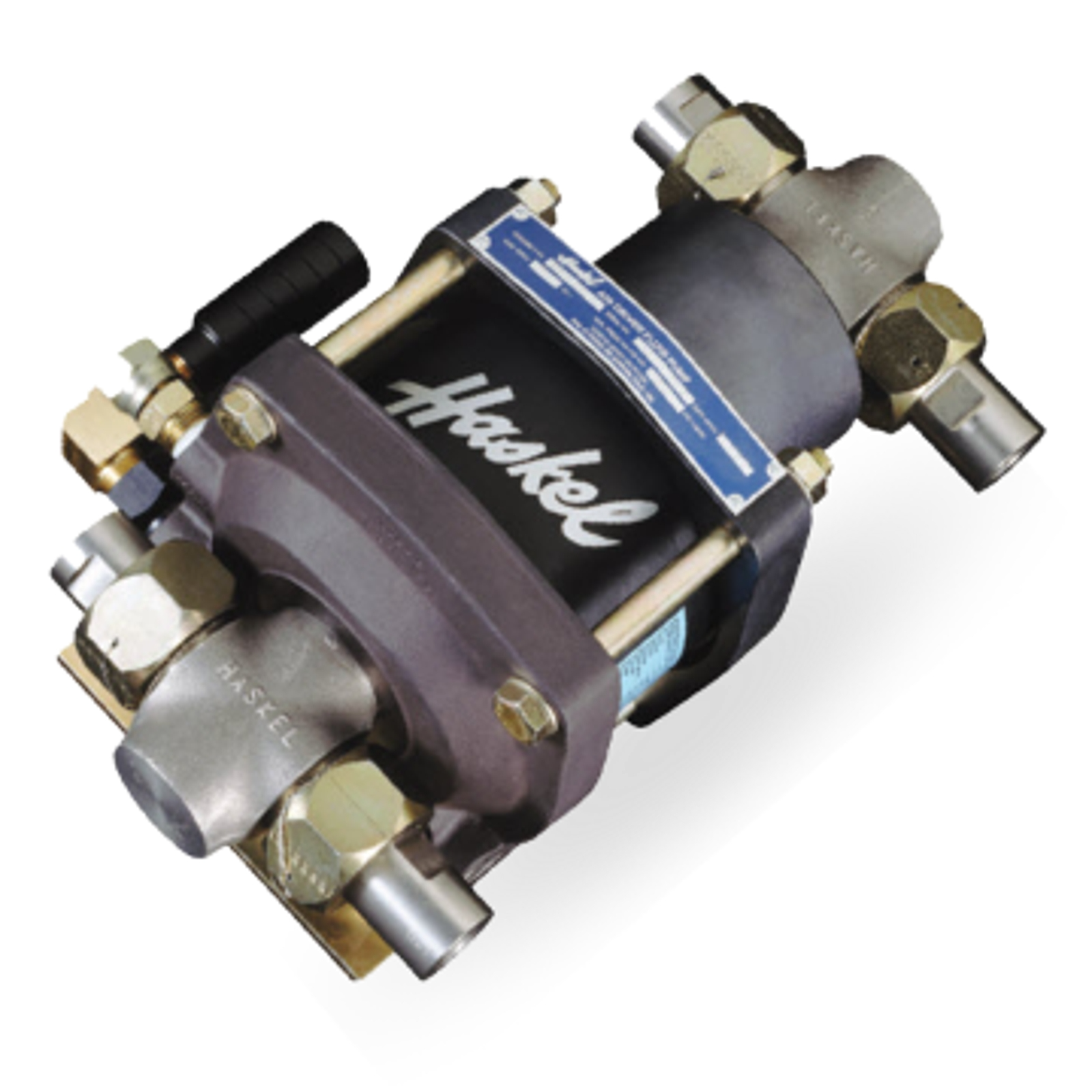

Haskel Model ASFD-150 — 3 HP Air-Driven Liquid Pump
Rp123000.00
Haskel Model ASFD-150 — 3 HP Air-Driven Liquid Pump
The Haskel Model ASFD-150 is an ultra-high-pressure, air-driven liquid pump engineered for applications requiring exceptional hydraulic performance and maximum reliability. With a nominal pressure ratio of 150:1 and a single air head design, this pump delivers liquid pressures up to 15,000 PSIG (continuous) and 20,000 PSIG (intermittent), making it an ideal solution for the most demanding industrial, testing, and pressure generation environments.
Designed around Haskel’s proven pneumatic drive technology, the ASFD-150 provides safe, spark-free operation with no heat or flame risk, enabling use in hazardous, classified, or electrically sensitive locations. Its infinitely variable cycling speed, along with the ability to stall at a preset pressure without consuming additional power, ensures precise pressure control and superior energy efficiency.
The pump’s rugged, compact stainless-steel construction guarantees long service life, corrosion resistance, and reliable performance in harsh operating conditions. A no-lubrication air drive eliminates contamination risks and reduces maintenance costs. Optional certification to ATEX, CE, and NACE standards allows deployment in explosive atmospheres, offshore environments, and corrosive fluid applications.
Technical Specifications
Performance
Power Rating: 3 HP
Air Head Configuration: Single
Nominal Pressure Ratio: 150:1
Actual Area Ratio: 173:1
Maximum Air Supply Pressure: 150 PSIG
Maximum Outlet Pressure (Continuous): 15,000 PSIG
Maximum Outlet Pressure (Intermittent): 20,000 PSIG
Maximum Cycling Rate: 80 cycles/min
Displacement per Cycle: 0.54 cu. in.
Maximum Flow: 122 cu. in./min
Typical Performance @ 100 PSIG Air Supply
103 in³/min at 7,500 PSIG
27 in³/min at 15,000 PSIG
Construction Materials
Pump Section: All stainless steel
Plunger: 15-5 PH stainless steel
Non-Metallic Components: UHMWPE, Viton, PTFE, Ryton
Operational Features
Safe pneumatic operation with zero heat, flame, or spark hazard
Infinitely variable cycling speed for precise pressure and flow control
Ability to stall at preset pressure with no energy consumption
Reliable stop/start performance
Fully compatible with automation and advanced control systems
Suitable for most liquids and liquefied gases
Optional alternative drive gases: sour gas, natural gas, nitrogen, boil-off gas
Proven, compact, and maintenance-friendly design
No air-line lubrication required — reduces operating costs and contamination risk
Unbalanced cycling spool for rapid response to pressure changes
Optional compliance with ATEX, CE, and NACE standards
Application Compatibility (Service Codes)
Service Code 1: Petroleum-based oils, kerosene, ethylene glycol, water with 5% soluble oil
Service Code 2: Plain water, diesel fuel
Service Codes 3–6: Not Recommended (N/R)
