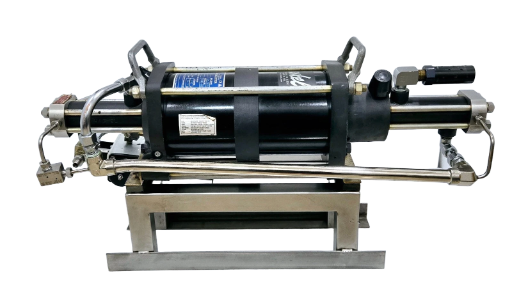

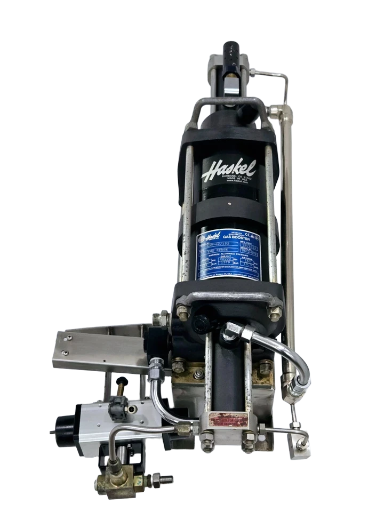

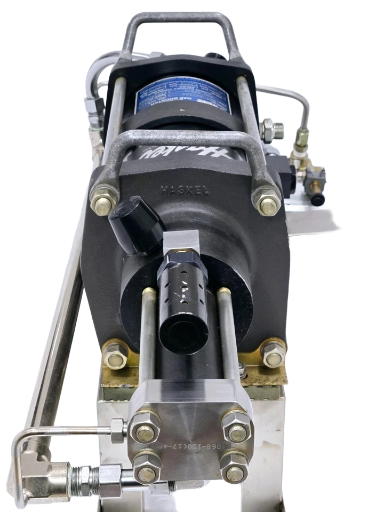

Haskel Model AGT-62/152 Air-Driven, Two-Stage Gas Booster

Haskel Model AGT-62/152
Air-Driven, Two-Stage Gas Booster

The Haskel AGT-62/152 is a high-performance, air-driven two-stage gas booster engineered for applications requiring extremely high outlet pressures. Featuring a 62:1 first-stage ratio and a 152:1 second-stage ratio, this unit utilizes air drive pressure to boost gas pressures up to 20,000 psig, delivering exceptional reliability and efficiency for demanding industrial environments.

Features & Benefits

• Reliable, robust, and compact construction with low maintenance requirements

• Zero heat, flame, or spark risk during operation

• Infinitely variable cycling speed and output

• Pneumatic operation—no electrical connections required

• Easily integrates with automatic control systems

• Suitable for continuous stop/start operation without performance degradation

• Long-life sealing system ensures extended service intervals

• No air-line lubricator required

• Hydrocarbon-free design with complete separation between air and gas sections

• Built-in cooling on most models

• Suitable for compressing most gases

• Capable of stalling at any predetermined pressure and maintaining it without consuming power or generating heat

Technical Data

• First-Stage Ratio: 62:1

• Second-Stage Ratio: 152:1

• Minimum Gas Supply Pressure: 100 psi

• Maximum Gas Supply Pressure: 40 Pa to 3600 psi

• Maximum Rated Gas Outlet Pressure: 20,000 psi

• Static Outlet Stall Pressure Formula:
  150 × Pa + 2.5 × Ps
  Pa = air drive pressure, Ps = gas supply pressure

• Minimum Air Drive Pressure: 20 psi

• Maximum Air Drive Pressure: 150 psi

Sample Performance Characteristics

• Boosts 1.8 SCFM of gas from 400 psi to 10,000 psi using 51 SCFM air @ 90 psig

• Boosts 4 SCFM of gas from 900 psi to 12,000 psi using 47 SCFM air @ 90 psig

• Boosts 4.6 SCFM of gas from 1400 psi to 15,000 psi using 35 SCFM air @ 90 psig

• Boosts 6.6 SCFM of gas from 2400 psi to 18,000 psi using 30 SCFM air @ 90 psig

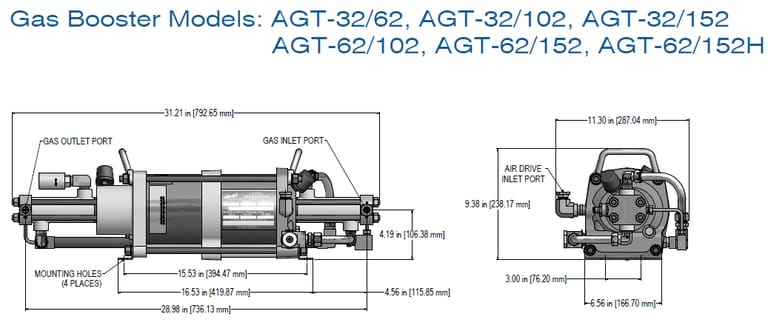

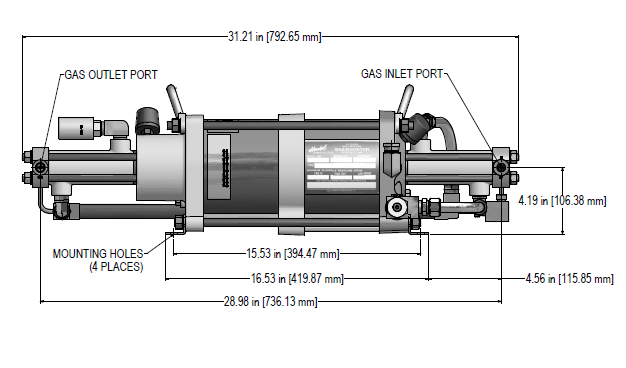

Physical Characteristics

• Unit Weight: 49 lbs

• Displacement per Cycle: 3.1 cu. in.

• Maximum Cycling Rate: 60 cycles/min

• Gas Inlet/Outlet Connections: Interchangeable 3/8″ SAE or 1/4″ HP

• Air Drive Inlet Port: 1/2″ FNPT
