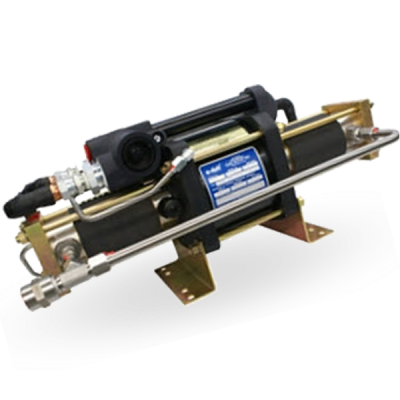

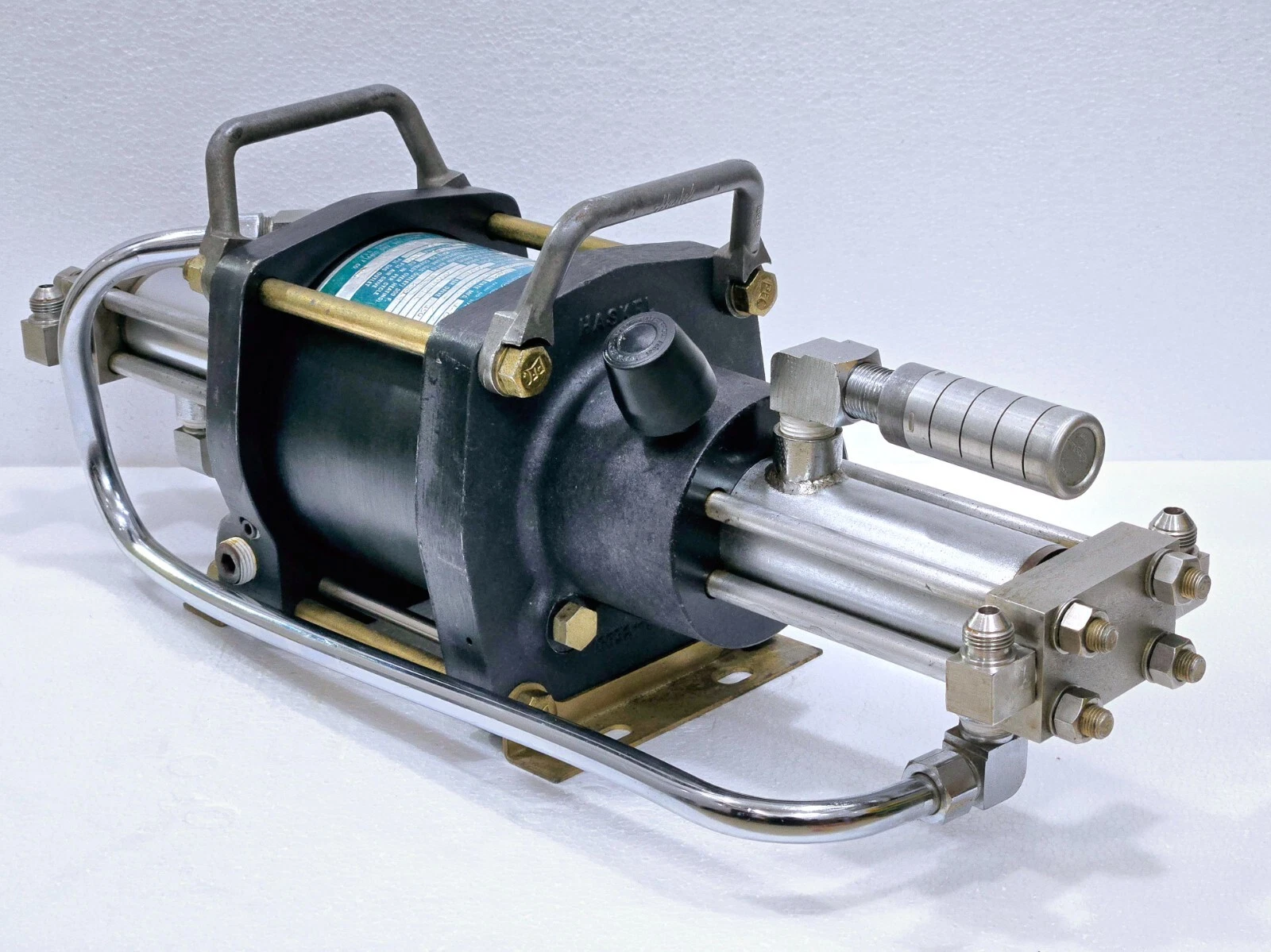

Haskel Model AGD-30 Air-Driven Gas Booster

Haskel Model AGD-30 Air-Driven Gas Booster

Double-Acting, Single-Stage Gas Booster (30:1 Ratio)

The Haskel AGD-30 is a double-acting, single-stage gas booster engineered to deliver efficient and reliable high-pressure gas boosting using only compressed air as the driving force. With a nominal pressure ratio of 30:1, this model is capable of achieving gas outlet pressures up to 9000 psig, making it suitable for a wide range of industrial, testing, and pressure-charging applications. Its pneumatic-driven design eliminates electrical requirements and ensures safe operation in hazardous or remote environments.

Features & Benefits

• Reliable, compact, and robust construction suited for demanding industrial use

• Easy to maintain with a proven, long-life design

• No heat, flame, or spark risk, ensuring safe operation

• Infinitely variable cycling speed and output for precise pressure control

• Pneumatic-driven system — no electrical power needed

• Compatible with automatic controls for process integration

• No limitations on continuous or stop/start operation

• Long-life sealing system for extended durability

• No air-line lubricator required, reducing contamination and maintenance

• Hydrocarbon-free operation with complete separation between air and gas sections

• Built-in cooling system (available on most models) to enhance reliability

• Suitable for use with most industrial gases

• Capable of stalling at any set pressure and holding it without energy consumption or heat generation

Technical Data

General Performance

• Pressure Ratio: 30:1

• Minimum Gas Supply Pressure: 100 psi

• Maximum Gas Supply Pressure: 9000 psi

• Maximum Rated Gas Outlet Pressure: 9000 psi

• Static Outlet Stall Pressure Formula:
  30 × Pa + Ps

  • Pa = air drive pressure

  • Ps = gas supply pressure

Air Drive Requirements

• Minimum Air Drive Pressure: 20 psi

• Maximum Air Drive Pressure: 150 psi

Sample Performance Characteristics

(Using 40 SCFM Air @ 90 psig supply pressure)

• Boost 9.6 SCFM gas from 850 psi → 2800 psi

• Boost 19 SCFM gas from 1550 psi → 3200 psi

• Boost 25.5 SCFM gas from 2250 psi → 4200 psi

• Boost 35.6 SCFM gas from 2850 psi → 4200 psi

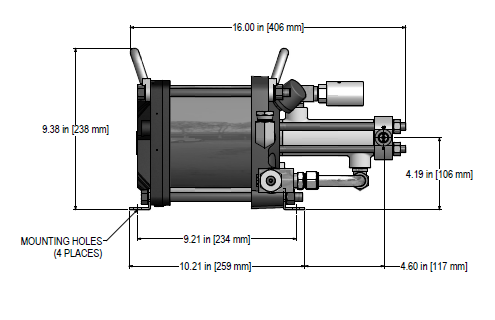

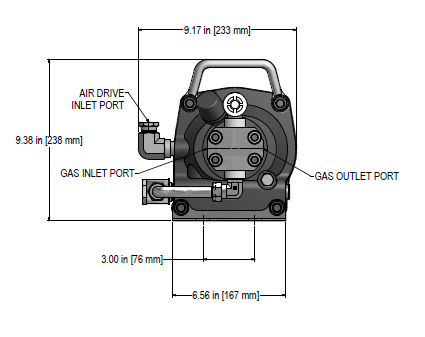

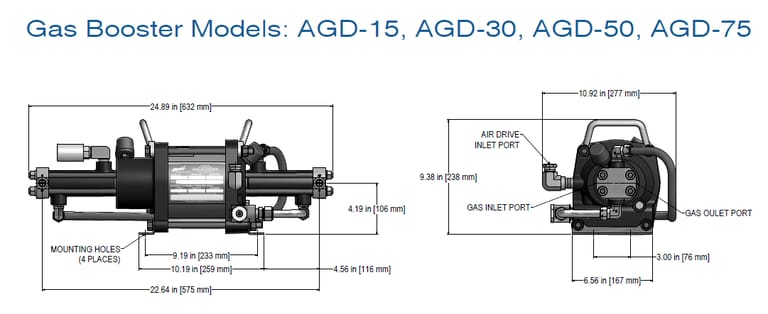

Physical Characteristics

• Unit Weight: 38 lbs

• Displacement per Cycle: 6.2 in³

• Maximum Cycle Rate: 60 cycles/min

• Gas Inlet/Outlet Connections:

  • Interchangeable 3/8" SAE or 1/4" HP

  • Configuration: 2 inlets & 2 outlets

• Air Drive Inlet Port: 1/2" FNPT
