Haskel Model AG-7 Air-Driven, Single-Acting, Single-Stage Gas Booster
Rp123000.00

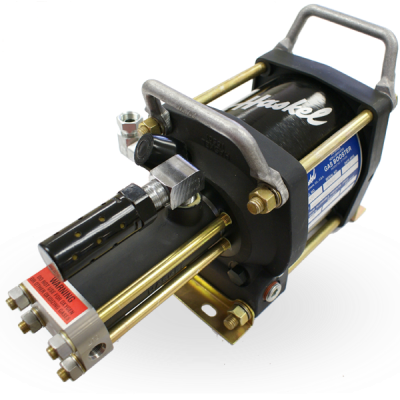

Haskel Model AG-7
Air-Driven, Single-Acting, Single-Stage Gas Booster
The Haskel AG-7 Gas Booster is a single-acting, single-stage air-driven unit designed to provide reliable and efficient gas pressurization. With a nominal pressure ratio of 7:1, it utilizes air drive pressure to boost gas pressures up to 1050 psig, making it an ideal choice for a variety of industrial gas handling applications.
Features & Benefits
Reliable, robust, and compact design with minimal maintenance requirements
No heat, flame, or spark risk during operation
Infinitely variable cycling speed and output
Pneumatically driven—no electrical power required
Easily integrates with automatic control systems
No limitations or negative effects from continuous stop/start operation
Long-life sealing system for extended service intervals
No air-line lubricator required
Hydrocarbon-free operation with complete separation between air and gas sections
Built-in cooling on most models
Suitable for use with most gases
Capable of stalling at any predetermined pressure and maintaining that pressure without consuming power or generating heat
Technical Data
Pressure Ratio: 7:1
Minimum Gas Supply Pressure: 25 psi
Maximum Gas Supply Pressure: 1050 psi
Maximum Rated Gas Outlet Pressure: 1050 psi
Static Outlet Stall Pressure Formula: 7 × Pa (Pa = air drive pressure)
Minimum Air Drive Pressure: 20 psi
Maximum Air Drive Pressure: 150 psi
Sample Performance Characteristics
Boosts 0.7 SCFM of gas from 60 psi to 600 psi using 21 SCFM air @ 90 psig
Boosts 1.6 SCFM of gas from 120 psi to 600 psi using 21 SCFM air @ 90 psig
Boosts 2.5 SCFM of gas from 180 psi to 600 psi using 21 SCFM air @ 90 psig
Boosts 3.4 SCFM of gas from 240 psi to 600 psi using 21 SCFM air @ 90 psig

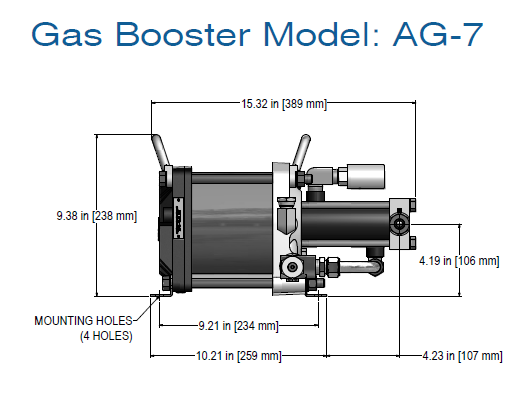

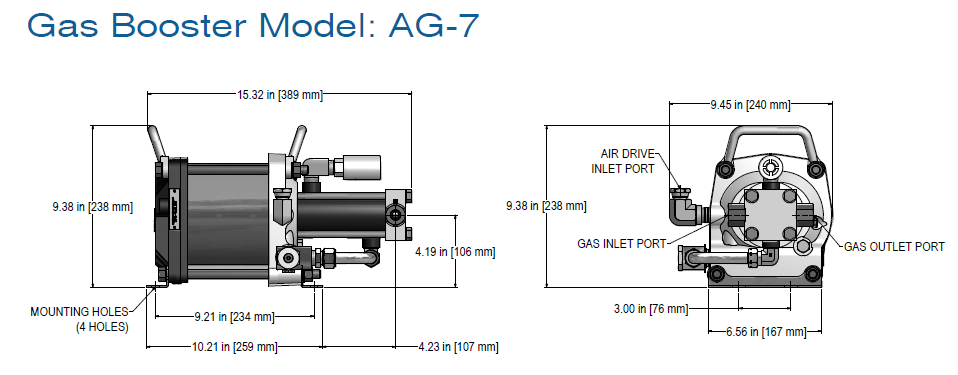

Physical Characteristics
Unit Weight: 30 lbs
Displacement per Cycle: 13.2 cu. in.
Maximum Cycling Rate: 60 cycles/min

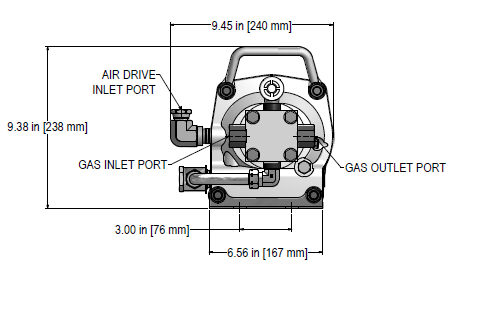

Gas Inlet/Outlet Connections: 3/8″ NPT
Air Drive Inlet Port: 1/2″ FNPT
