Haskel Model AAD-5 – Double-Acting, Single-Stage Air Amplifier
Rp123000.00
Haskel Model AAD-5 – Double-Acting, Single-Stage Air Amplifier
Efficient Air Pressure Boosting up to 1250 PSIG

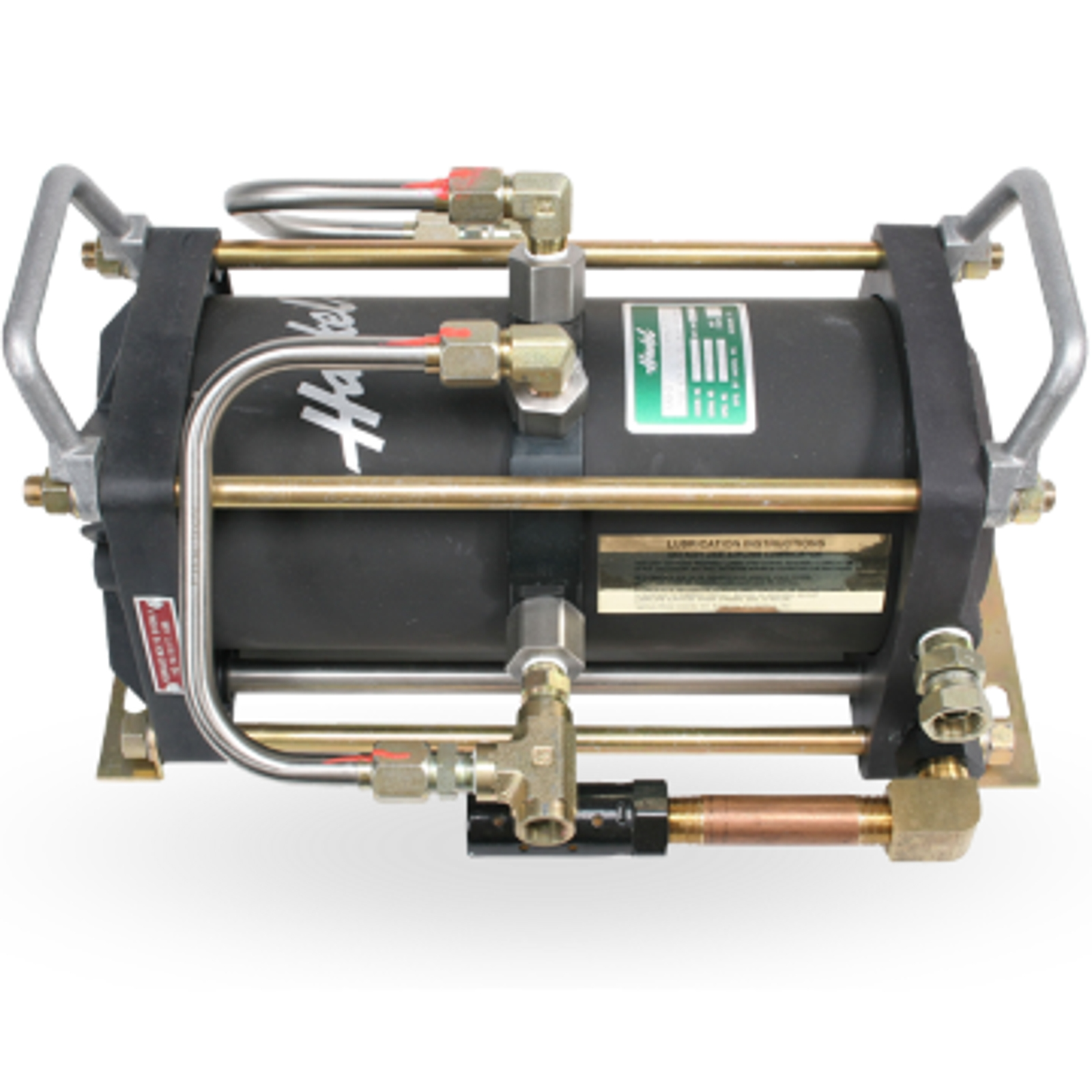

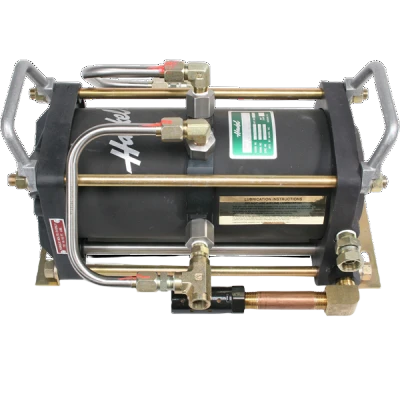

The Haskel AAD-5 Air Amplifier is a double-acting, single-stage pneumatic booster designed for industrial applications requiring reliable and efficient air pressure intensification. With a nominal pressure ratio of 5:1, this model delivers outlet pressures up to 1250 PSIG, making it suitable for a variety of air and inert gas boosting operations.
Features & Benefits
Long seal life with low-maintenance construction.
Safe pneumatic operation—eliminates risks of heat, flame, or spark.
No air-line lubrication required, ensuring clean, oil-free exhaust.
Infinitely variable outlet pressure and flow, controlled through air drive pressure.
Wide availability of system options for both standard and customized configurations.
Cost-effective pressure control via air-drive pressure regulators.
Robust and proven Haskel design for dependable performance.
Technical Data
General
Design: Double-acting, single-stage
Air Drive Size: 5.75 in
Pressure Ratios
1st Stage Ratio: 5:1
2nd Stage Ratio: N/A
Gas Supply Requirements
Minimum Gas Supply Pressure: 25 PSI
Maximum Gas Supply Pressure: 1250 PSI
Outlet Pressure
Maximum Rated Outlet Pressure: 1250 PSI
Static Outlet Stall Pressure Formula:
4 × Pa + Ps
(Pa = air drive pressure, Ps = gas supply pressure)
Air Drive Requirements
Minimum Air Drive Pressure: 40 PSI
Maximum Air Drive Pressure: 150 PSI

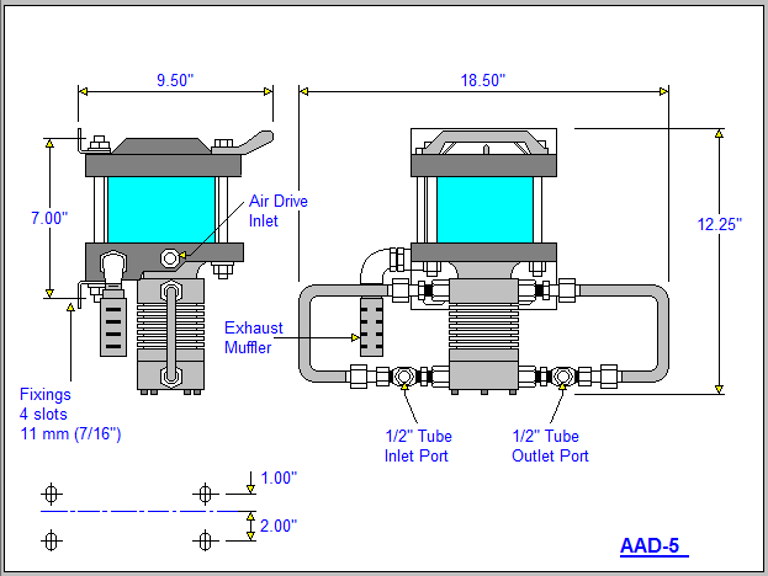

Physical Characteristics
Unit Weight: 25 lbs
Displacement per Cycle: 19.3 cu. in.
Maximum Cycling Rate: 80 cycles/min
Gas Inlet/Outlet Connections: 1/2″ Tube
Air Drive Inlet Port: 1/2″ FNPT

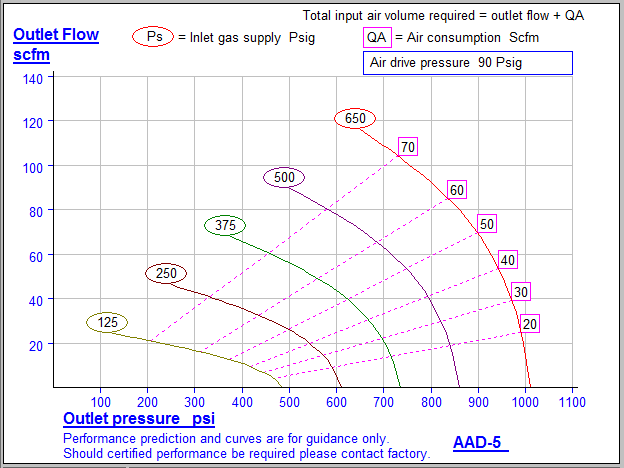

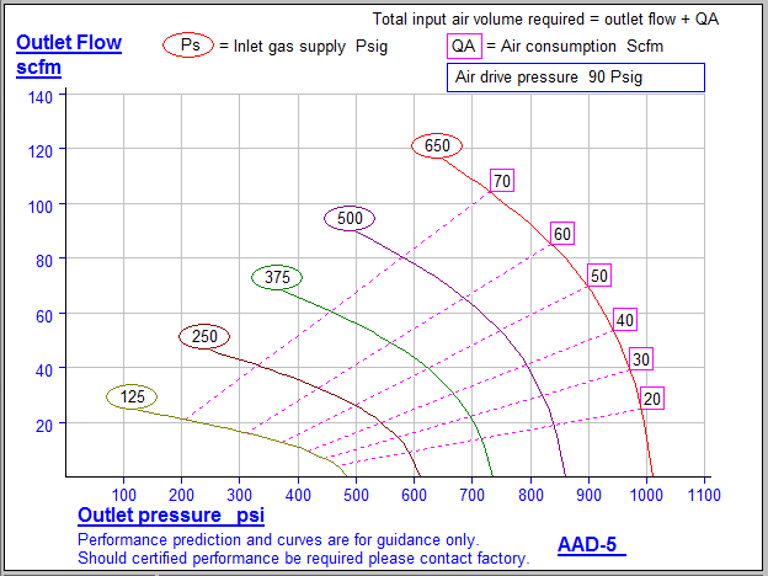

Sample Performance Curve:
Applications
The AAD-5 is ideally suited for:
Air system pressure boosting
Component and system leak testing
Pressurizing pneumatic tools and equipment
Charging accumulators and reservoirs
Laboratory and R&D test setups
Clean, oil-free high-pressure air supply applications
