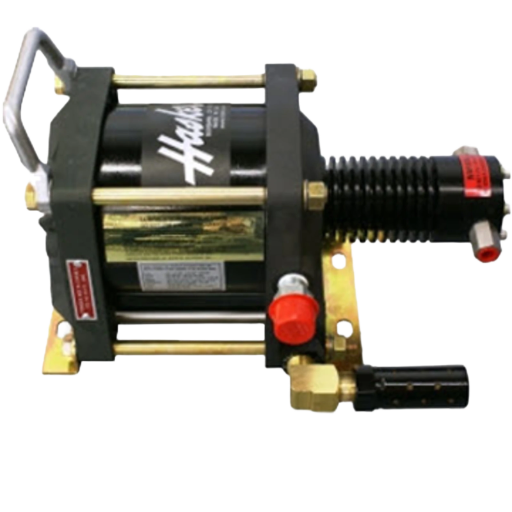

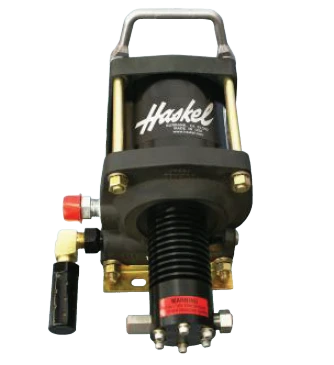

Haskel Model AA-8 – Single-Acting, Single-Stage Air Amplifier
Rp123000.00
Haskel Model AA-8 – Single-Acting, Single-Stage Air Amplifier
Compact, High-Performance Air Pressure Booster
The Haskel AA-8 Air Amplifier is a single-acting, single-stage pneumatic booster engineered to safely increase air or inert gas pressures with exceptional reliability. With a nominal pressure ratio of 8:1, the AA-8 delivers outlet pressures up to 2500 PSIG, making it suitable for a wide range of industrial, laboratory, and process applications requiring clean, oil-free boosted air or gas.
Features & Benefits
Long seal life with simplified, low-maintenance design.
Safe pneumatic operation—no heat, flame, or spark hazards.
No air-line lubrication required, preventing contamination and oily exhaust.
Infinitely variable outlet pressure and flow based on drive pressure.
Fast response and consistent pressure output.
Wide selection of models, controls, and custom options to match specific system requirements.
Easy pressure regulation using inexpensive air-drive regulators.
Technical Specifications
General
Design: Single-acting, single-stage
Air Drive Size: 5.75 in
Pressure Ratios
1st Stage Ratio: 8:1
2nd Stage Ratio: N/A
Gas Supply Requirements
Minimum Gas Supply Pressure: 25 PSI
Maximum Gas Supply Pressure: 1250 PSI
Outlet Pressure
Maximum Rated Outlet Pressure: 2500 PSI
Static Outlet Stall Pressure Formula:
7 × Pa + Ps
(Pa = air drive pressure, Ps = gas supply pressure)
Air Drive Requirements
Minimum Air Drive Pressure: 40 PSI
Maximum Air Drive Pressure: 150 PSI

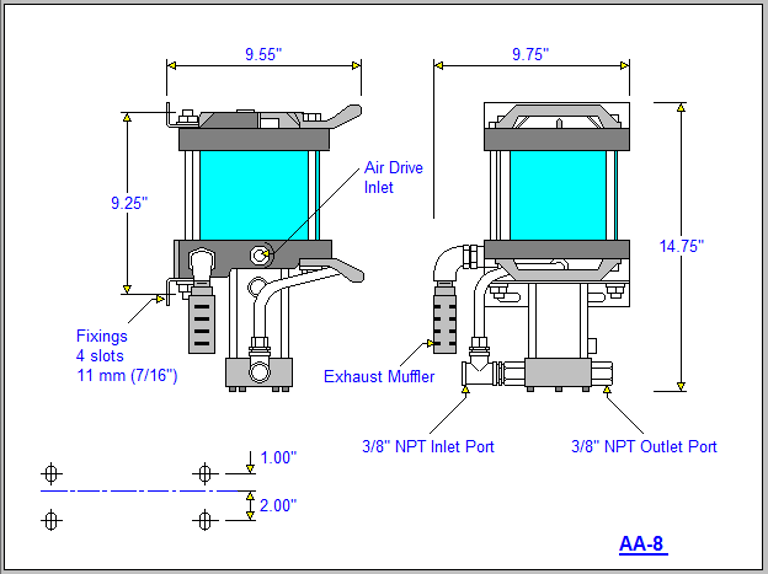

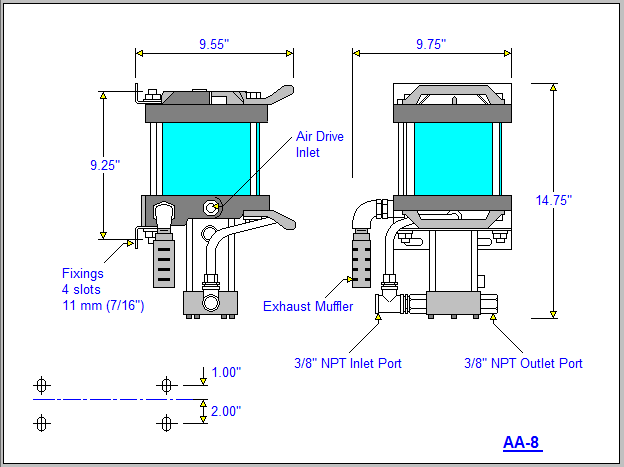

Physical Characteristics
Unit Weight: 27 lbs
Displacement per Cycle: 13.2 cu. in.
Maximum Cycles: 80 cycles/min
Gas Inlet/Outlet Connections: 3/8″ FNPT
Air Drive Inlet Port: 1/2″ FNPT
Applications
The AA-8 Air Amplifier is ideal for:
Plant air system boosting
Accumulator and airbag charging
Leak testing and high-pressure air testing
General-purpose air and inert gas boosting
Pneumatic tool and equipment supply
Laboratory, calibration, and R&D applications
