High-Pressure, High-Performance Pumping for Demanding Liquid Applications

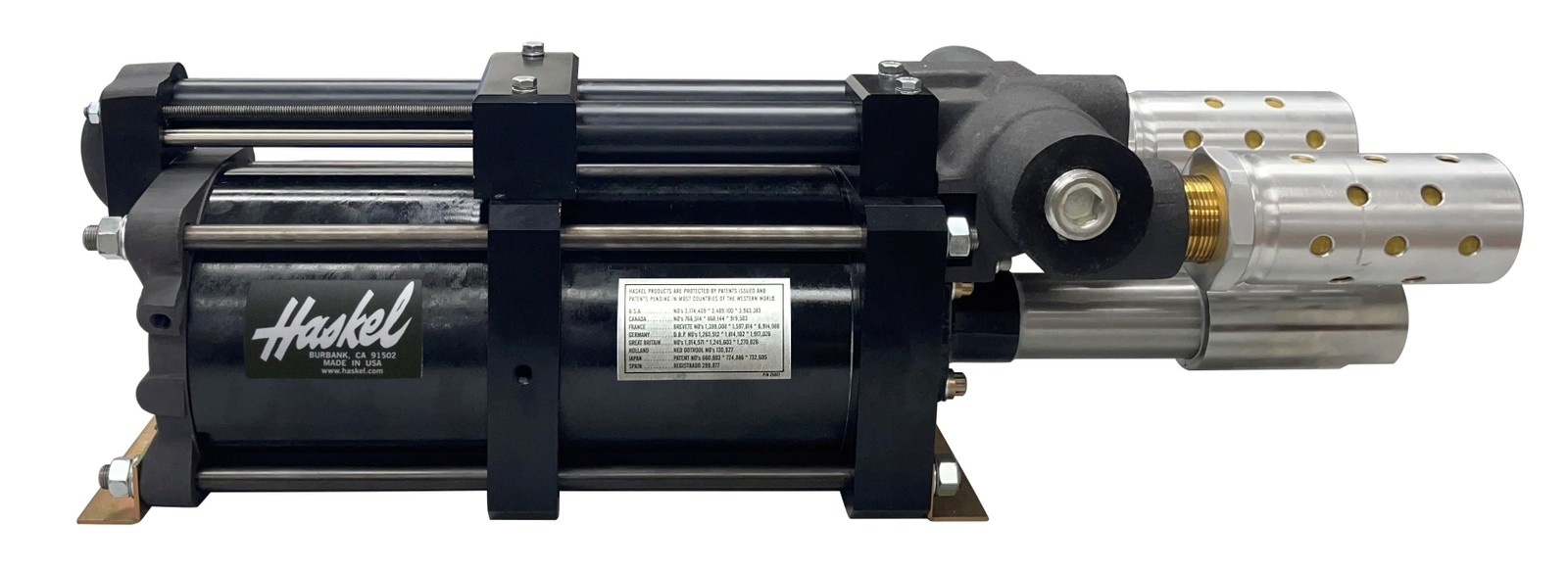

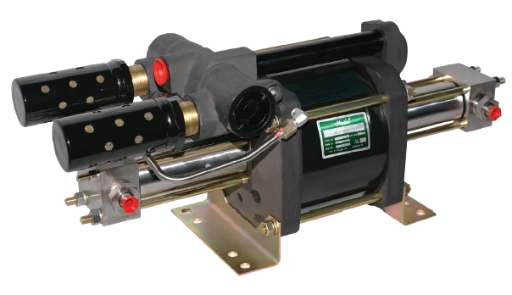

The Haskel Model 8HSFD-225 is an 8 HP air-driven liquid pump engineered for ultra-high-pressure applications requiring exceptional reliability and stable performance. With a nominal pressure ratio of 225:1, this pump is designed to boost liquid pressure up to 25,000 PSIG, delivering consistent power through a compact and robust single-air-head design.

Features & Benefits

• Safe pneumatic operation – eliminates risks from heat, sparks, or flames.

• Infinitely variable cycling speed for precise flow and pressure control.

• Automatic stall at pre-set pressure, holding pressure without consuming power.

• Reliable stop/start performance ideal for intermittent or repetitive duty cycles.

• Easy automation with multiple configuration and control options.

• Compatible with most liquids and liquefied gases.

• Alternative gas drive options available (sour gas, natural gas, boil-off gas, nitrogen).

• Low-maintenance design with no need for air-line lubrication—reduces cost and prevents contamination.

• Fast pressure-change response thanks to the unbalanced cycling spool.

• Can be manufactured to comply with ATEX, CE, and NACE requirements.

• Proven Haskel durability—compact, rugged, and dependable in harsh conditions.

Technical Specifications

General

• Power: 8 HP

• Air Head: Single

• Maximum Air Pressure: 125 PSIG

• Maximum Cycles: 50 cycles/min

Pressure & Ratio

• Nominal Ratio: 225:1

• Actual Area Ratio: 253:1

• Max Outlet Pressure (Continuous): 25,000 PSIG

• Max Outlet Pressure (Intermittent): 25,000 PSIG

Flow Performance

• Displacement per Cycle: 1.56 cu. in.

• Maximum Flow Rate: 296 cu. in./min

Typical Performance @ 100 PSIG Air Supply

• 270 in³/min at 10,000 PSIG

• 144 in³/min at 20,000 PSIG

Materials of Construction

• Pump Section: Stainless Steel & Bronze

• Plunger: 17-4PH Stainless Steel

• Non-Metallic Components: UHMWPE, Viton, PTFE, Ryton

Applications

Ideal for handling a wide range of fluids used in industrial, oil & gas, testing, and chemical processes.
