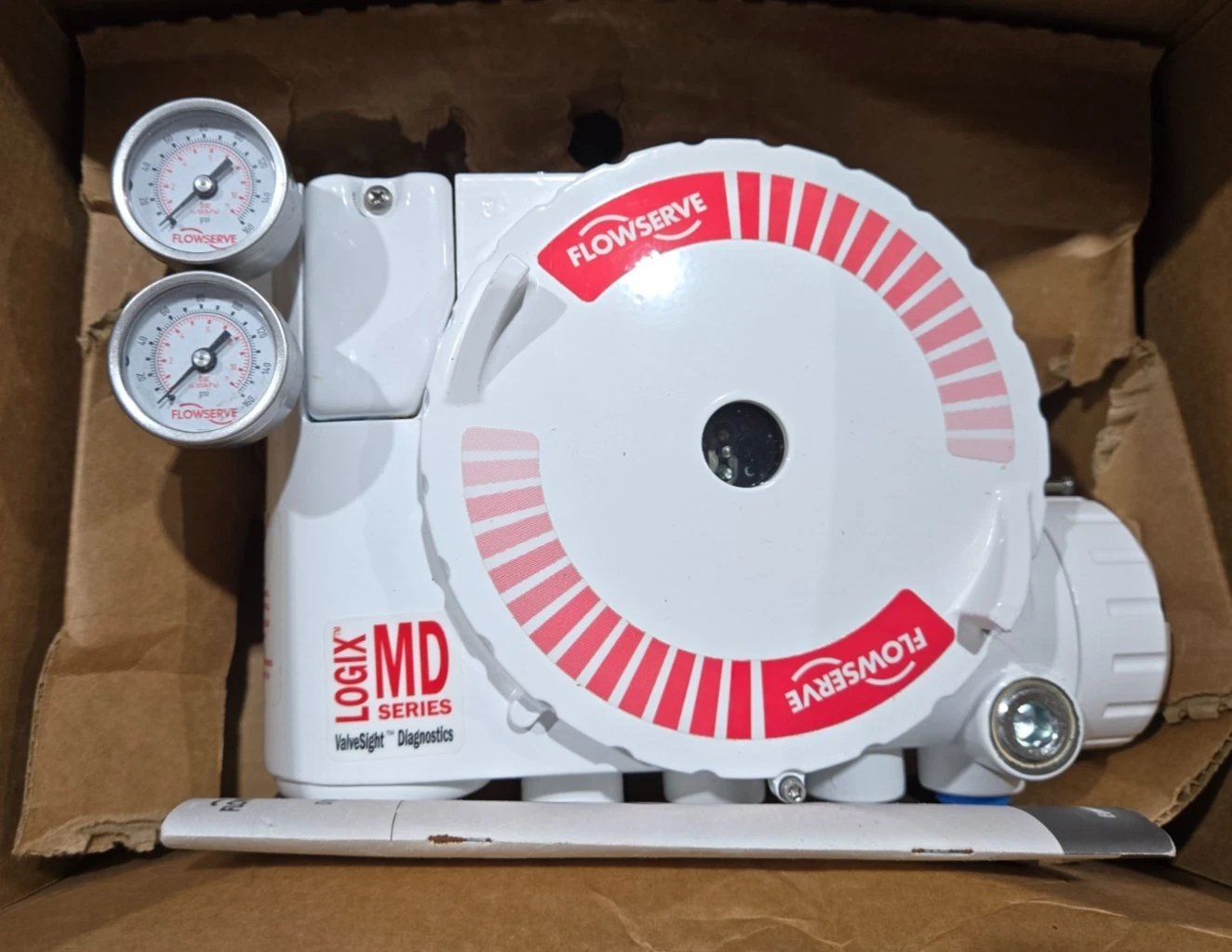

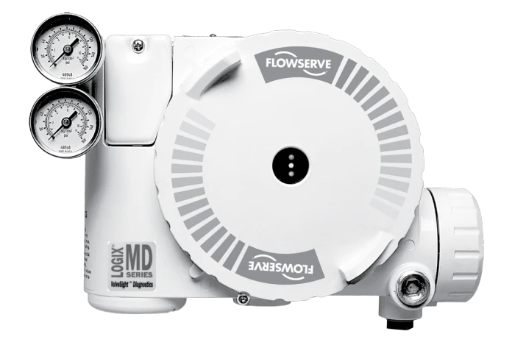

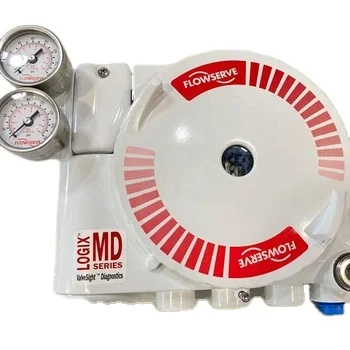

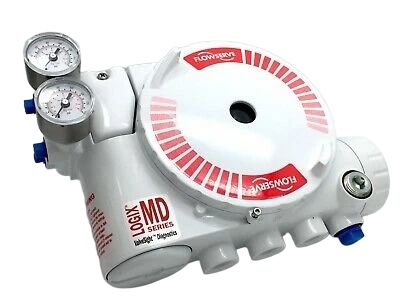

Flowserve Logix 3200MD Digital HART Positioner

Flowserve Logix 3200MD Digital HART Positioner

Model: 3200MD-10-N6-E-04-40-0G-0F

Description

The Flowserve Logix 3200MD is a high-performance digital HART positioner designed for precise valve control and superior reliability in demanding process environments. Featuring advanced piezoelectric valve control technology, the Logix 3200MD ensures fast response, minimal air consumption, and exceptional stability. Configuration and calibration are simplified through local interface buttons, HART communication, or SoftTools software. The positioner’s robust explosion-proof design and comprehensive diagnostics make it ideal for a wide range of industrial applications.

Features and Benefits

• Advanced Piezo Technology for precise valve control and fast response.

• Local Interface with status LEDs and calibration buttons for easy setup.

• Auto-Tuning Function with dynamic gain selection for optimized performance.

• HART 5 Communication Protocol for seamless integration and remote configuration.

• Local DIP Switches for configuration of key parameters.

• Compact and Rugged Enclosure suitable for harsh industrial environments.

• Diagnostics and Feedback Capabilities to monitor valve performance and health.

• Simple, One-Push Calibration minimizing commissioning time.

Technical Specifications

• Part Number: 3200MD-10-N6-E-04-40-0G-0F

• Communication Protocol: HART 5

• Input Signal: 4–20 mA DC

• Air Supply Pressure: 20–100 psi (1.4–7 bar)

• Air Consumption: < 0.03 SCFM steady state at 60 psi

• Operating Temperature Range: –40 °C to +85 °C (–40 °F to +185 °F)

• Enclosure Material: Aluminum, epoxy-coated

• Mounting Type: NAMUR standard (direct mount)

• Display: Local LEDs for status and diagnostics

• Position Feedback: Non-contact Hall effect sensor

• Ingress Protection: IP66 / NEMA 4X

Hazardous Area Certifications

• Explosion-Proof: Class I Division 1, Groups B–D; Ex d IIB+H₂; AEx d IIB+H₂

• Intrinsically Safe: Class I Division 1, Groups A–G; Ex ia IIC; AEx ia IIC

• Non-Incendive: Class I Division 2, Groups A–D; Ex nA

• Safety Integrity Level: SIL 2 (IEC 61508 Certified)

Typical Applications

• Power Generation: Steam, Combined Cycle, CSP, Biomass, Geothermal

• Chemical and Petrochemical: Organic, Inorganic, Specialty, Biofuels

• Oil & Gas: Upstream, Midstream, Downstream

• Water & Wastewater Management

• General Industries: Pulp & Paper, Steel, Food & Beverage, Mining, Pharmaceuticals
