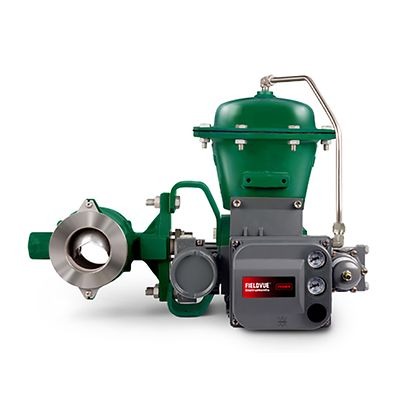

Fisher Vee-Ball V200 Control Valve

Product Description
The Fisher Vee-Ball V200 control valve delivers outstanding performance and cost-effectiveness across a broad spectrum of industrial applications. With precision-machined components and pressure-balanced seal designs, the V200 ensures smooth and precise operation. Its robust construction and flexibility make it ideal for challenging conditions and high-performance requirements.

Key Features

• Flexible Installation Options: Available in flanged or flangeless body styles for diverse system configurations.

• Durable Ball Seal Design: Solid HD ball seal construction provides extended service life, even in demanding applications.

• Modified Equal Percentage Flow Characteristics: Achieved through precise contouring of the Vee-Ball, ensuring optimal control.

• Compliance with Sour Service Standards: Materials suitable for sour liquids and gases meet NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156 requirements.

• Ease of Maintenance: Ball seal inspection and replacement can be performed at the valve body inlet without actuator removal or valve disassembly.

• Enhanced Structural Integrity: One-piece valve body eliminates potential leak paths found in two-piece designs, improving pressure boundary reliability.

• Optional ENVIRO-SEAL™ Packing Systems: Features live-loaded, smooth shaft surfaces for superior sealing and reduced emissions.

Specifications

• Certifications: SIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE

• Critical Service: Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service

• Flow Characteristics: Equal Percentage

• Materials: Carbon Steel, Stainless Steel, Duplex, Alloy

• Operating Temperature: Standard Temperature

• Pressure Class: ASME

• Process Connection Type: Flanged

• Shutoff Class:

  • Class III (FCI 70-2)

  • Class IV (FCI 70-2)

  • Class VI (FCI 70-2)

• Valve Sizes: NPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10

• Valve Size Standard: NPS

Applications
The Fisher Vee-Ball V200 control valve is designed for a range of critical services, including:

• Noise abatement in high-pressure applications.

• Cavitation and erosion control in dirty or erosive service environments.

• Low flow precision control.

• General process applications requiring robust and reliable valve performance.
