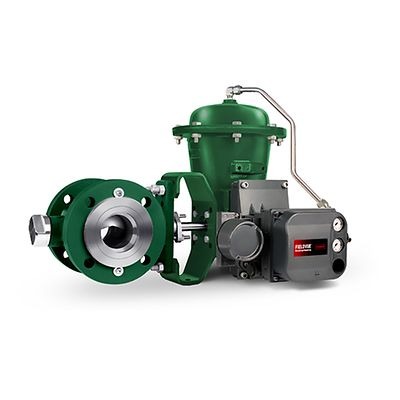

Fisher Vee-Ball V150S Flanged Control Valve

The Fisher Vee-Ball™ V150S control valve is designed with rugged construction, highly wear-resistant trim materials, and an unrestricted straight-through flow path, making it ideal for controlling slurry. Its advanced design reduces erosive damage to adjoining pipework, enhancing operational safety and extending service life.

Specifications

• Certifications: ATEX, CUTR, PED, CRN, Fugitive Emission, NACE

• Critical Service: Dirty Service, Erosive, General Service

• Flow Characteristics: Equal Percentage

• Material: Carbon Steel

• Operating Temperature: Standard Temperature

• Pressure Class: ASME

• Process Connection Type: Flanged

• Shutoff Class: Class I (FCI 70-2)

• Valve Size: NPS 3, 4, 6, 8, 10, 12

• Valve Size Standard: NPS

• Additional Configurations: Contact your local Emerson business partner or sales office for more details or custom options.


Features

• Enhanced Durability: Valve body, shaft, and bearings are fully protected by hard, wear-resistant trim materials.

• Minimized Erosion: A specially designed flow ring guides the throttled flow stream to reduce turbulence and impingement on pipe walls.

• Reverse Flow Optimization: In reverse flow mode, the high-velocity stream downstream of the vena contracta remains contained within the flow ring bore, ensuring smooth exit flow parallel to the flow ring wall.

• Flanged Body Design: Full flanging on the valve body enables precise central alignment with pipe flanges, reducing erosion across flange faces.

• Precise Flow Control: The V-notch ball is contoured to deliver a modified equal percentage flow characteristic for accurate control.

• One-Piece Construction: The valve body, including flanges, is made from a single casting with no welding, ensuring enhanced structural integrity.
