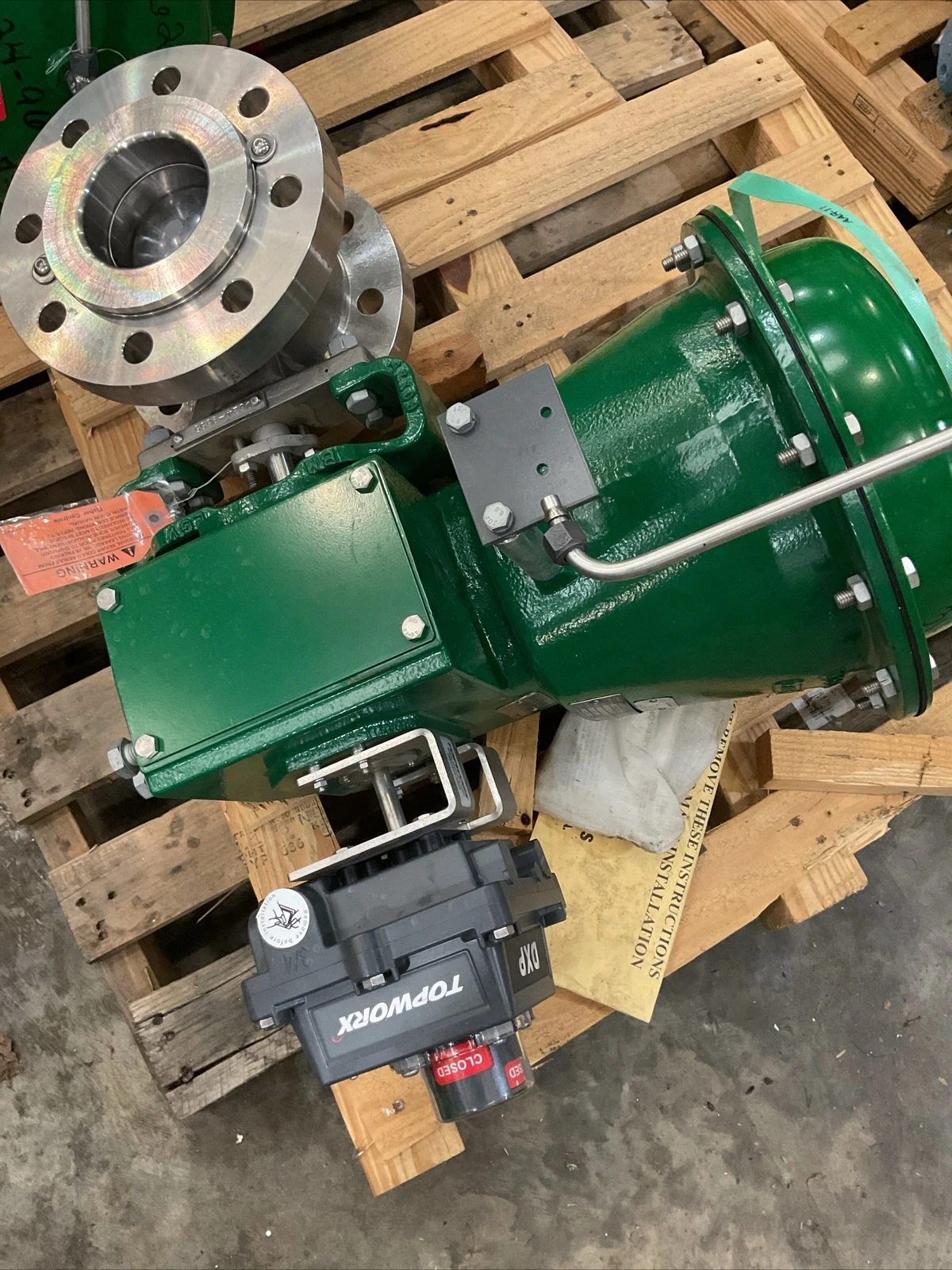

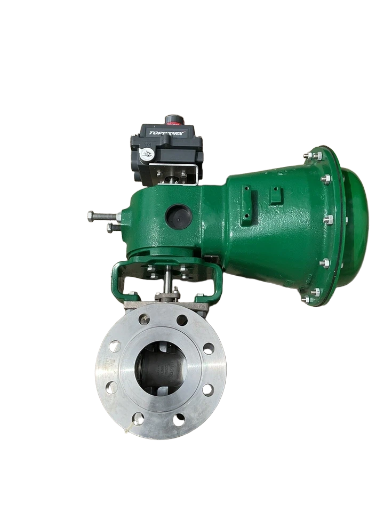

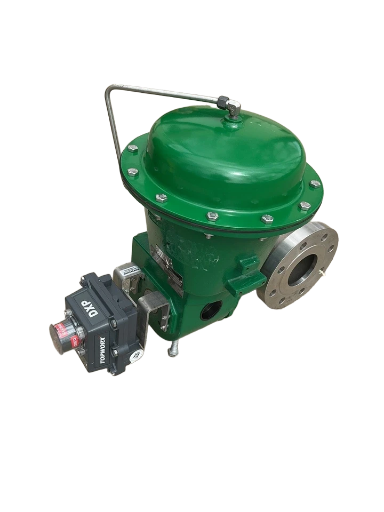

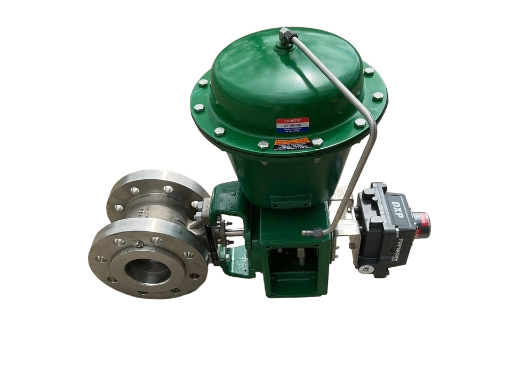

Fisher V300 4" Vee-Ball Control Valve, 316 Stainless Steel, ASME Class 300 with Fisher 2052 Size 2 Pneumatic Actuator
Rp123000.00
Product Description
The Fisher V300 4" Vee-Ball™ Control Valve paired with the Fisher 2052 Size 2 pneumatic actuator is a high-performance rotary control valve engineered for precise, reliable throttling and on/off service in demanding industrial processes. Its V-notch ball design provides excellent control accuracy and rangeability, while the 316 stainless steel body and trim ensure superior corrosion resistance and durability under harsh operating conditions.
The compact Fisher 2052 actuator delivers powerful, smooth, and responsive operation with minimal air consumption. Together, this assembly provides efficient control of liquids, gases, and steam in oil and gas, refining, chemical, and power generation industries — maintaining Emerson’s reputation for quality, reliability, and performance.
Technical Specifications
Item | Description |
Manufacturer / Brand | Fisher – Emerson Automation Solutions |
Valve Model | Fisher V300 Vee-Ball™ Control Valve |
Valve Type | Rotary, V-notch ball control valve |
Nominal Size | 4 inch (DN 100) |
Pressure Class Rating | ASME Class 300 |
Body Material | 316 Stainless Steel (CF8M) |
Ball and Shaft Material | Stainless Steel, hard-faced for erosion resistance |
Seat Type | Metal or soft seat (depending on service) |
Flow Characteristic | Equal percentage |
End Connections | Flanged, ASME B16.5 Class 300 |
Shutoff Classification | Class IV (metal seat) or Class VI (soft seat) |
Flow Direction | Forward or reverse (installation dependent) |
Temperature Range | –29 °C to +232 °C (–20 °F to +450 °F), depending on trim materials |
Mounting Orientation | Vertical or horizontal |
Actuator Model | Fisher 2052, Size 2 |
Actuator Type | Pneumatic rotary, double-acting or spring-return |
Action Type | Air-to-open or air-to-close (configurable) |
Supply Pressure | Up to 60 psig (4.1 bar) |
Signal Connection | 1/4" NPT (female) |
Positioner Compatibility | Fisher FIELDVUE™ DVC digital valve controllers or pneumatic positioners |
Fail Action | Fail-open or fail-close, depending on spring configuration |
Operating Temperature (Actuator) | –40 °C to +82 °C (standard configuration) |
Applications | Precise flow control of liquids, gases, and steam in oil & gas, petrochemical, chemical, and power generation industries |
Key Features | - High control accuracy with V-notch ball design |
Fisher V300 stainless steel Vee-Ball control valve with 2052 actuator
ASME Class 300, 4-inch rotary control valve for demanding process applications
Precision throttling performance with equal percentage flow characteristics
Durable 316 SS construction for corrosion and wear resistance
Emerson original product — engineered for control, reliability, and efficiency
