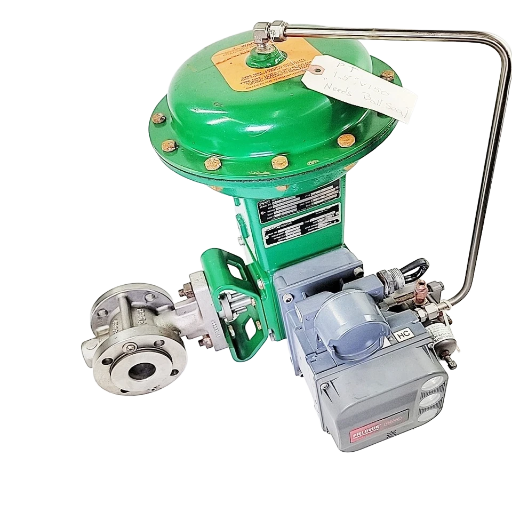

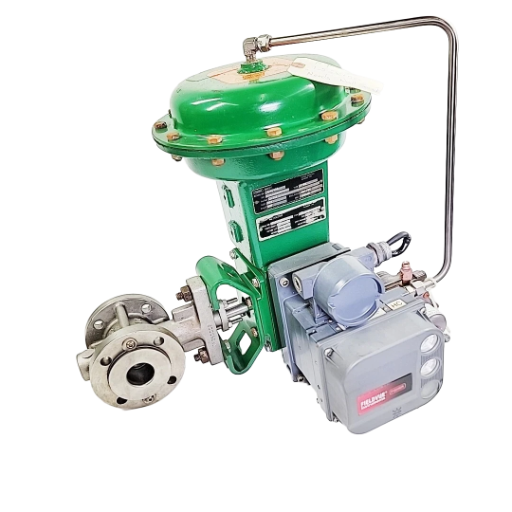

Fisher V150 1-1/2" Control Ball Valve with Fisher 1052 Size 33 Pneumatic Actuator
Rp123000.00
Product Description :
The Fisher V150 1-1/2" Control Ball Valve with Fisher 1052 Size 33 pneumatic actuator is a high-performance rotary control valve designed for accurate and reliable throttling or on/off control of liquids, gases, and steam. Built with a stainless steel body and characterized V-notch ball, this valve delivers precise flow control, tight shutoff capability, and superior durability in demanding industrial applications.
The rugged Fisher 1052 actuator provides powerful, smooth, and responsive operation with minimal hysteresis. This combination ensures long-term reliability, minimal maintenance, and optimal performance in process industries such as oil & gas, petrochemical, and power generation.
Technical Specifications
Item | Description |
Manufacturer / Brand | Fisher – Emerson Automation Solutions |
Valve Model | Fisher V150 Vee-Ball™ Control Valve |
Valve Type | Rotary, V-notch ball control valve |
Valve Size | 1-1/2 inch (DN 40) |
Pressure Class Rating | ASME Class 150 |
Body Material | Stainless Steel (CF8M / 316 SS) |
Ball and Shaft Material | Stainless Steel, hard-faced for erosion resistance |
Seat Type | Metal or soft seat (optional, depending on service) |
End Connections | Flanged, ASME B16.5 Class 150 |
Flow Characteristic | Equal percentage |
Shutoff Classification | Class IV (metal seat) or Class VI (soft seat) |
Temperature Range | –29 °C to +232 °C (–20 °F to +450 °F), depending on materials |
Flow Direction | Forward or reverse (per installation) |
Mounting Orientation | Vertical or horizontal |
Actuator Model | Fisher 1052, Size 33 |
Actuator Type | Pneumatic rotary, double-acting |
Action Type | Air-to-open / air-to-close (configurable) |
Supply Pressure | Up to 60 psig (4.1 bar) |
Signal Connection | 1/4" NPT (female) |
Positioner Compatibility | FIELDVUE™ DVC series or pneumatic positioners |
Fail Action | Spring-return (fail-open or fail-close, depending on setup) |
Operating Temperature (Actuator) | –40 °C to +82 °C (standard) |
Applications | Liquid, gas, and steam flow control in oil & gas, chemical, refining, and power plants |
Key Features | - High rangeability with precise throttling |
