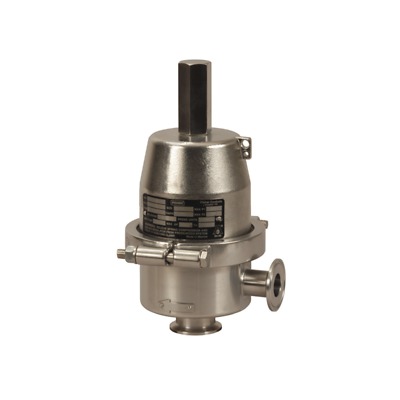

Fisher Type SR8 Sanitary Backpressure Regulator
Rp123000.00
Product Description
The Fisher Type SR8 is a compact, high-capacity, direct-operated backpressure regulator, specifically designed for applications requiring a sanitary design. Ideal for use in industries such as pharmaceuticals, biotechnology, and food and beverage, this regulator ensures compliance with stringent hygiene standards. It is available in sizes ranging from NPS 1/2 to 3 (DN 15 to 80) and is compatible with Tri-Clamp sanitary fittings. The Type SR8 is suitable for controlling steam, liquid, or gas services with precision and reliability.
Key Features
Sanitary Design Standards: Ensures compliance with industry hygiene requirements.
Superior Flow Performance and Accuracy: Maintains precise control for consistent performance.
Tight Shutoff: Prevents leakage, ensuring operational safety and efficiency.
Self-Draining: Minimizes residue build-up, supporting sanitary conditions.
Remote Setpoint Capability: Allows convenient adjustments from a remote location.
Clean-in-Place (CIP) and Steam-in-Place (SIP): Supports easy maintenance and sterilization.
Nonporous Polished Body and Internals: Prevents contamination and ensures durability.
Optional T-Handle: Provides easy manual adjustment if needed.
Specifications
Pressure Registration: Internal
Temperature Range: -20°F to 400°F (-28°C to 204°C), depending on seat and diaphragm materials
Body Sizes:
NPS: 0.5, 0.75, 1, 1.5, 1.5x1, 2, 3
DN: 15, 20, 25, 40, 40x25, 50, 80
End Connections: Sanitary Tri-Clamp
Maximum Inlet Pressure: 210 PSIG (14.5 bar)
Maximum Outlet Pressure: 210 PSIG (14.5 bar)
Spring Ranges: 2 to 125 PSIG (0.14 to 8.6 bar)
Additional Information: For further technical details, please contact your local sales office or refer to the technical documentation.
