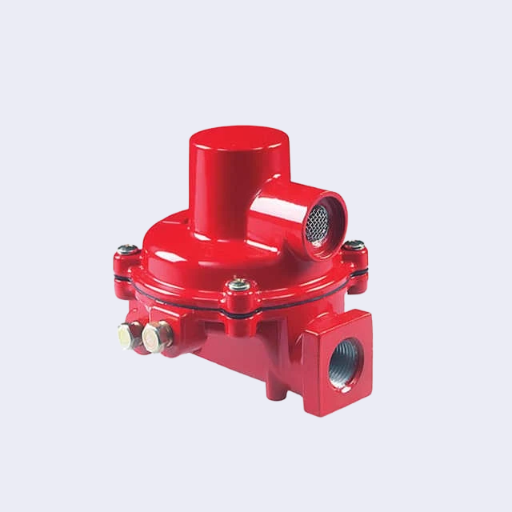

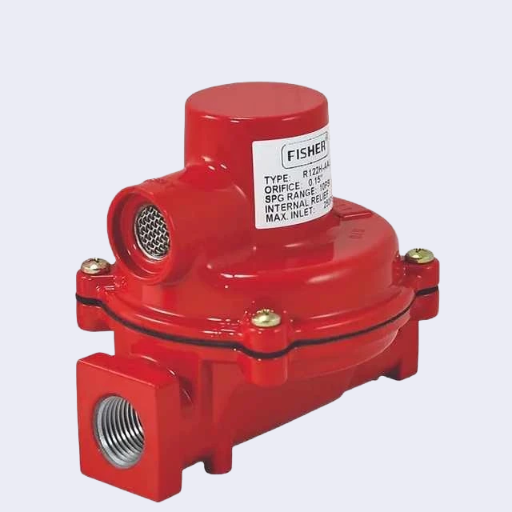

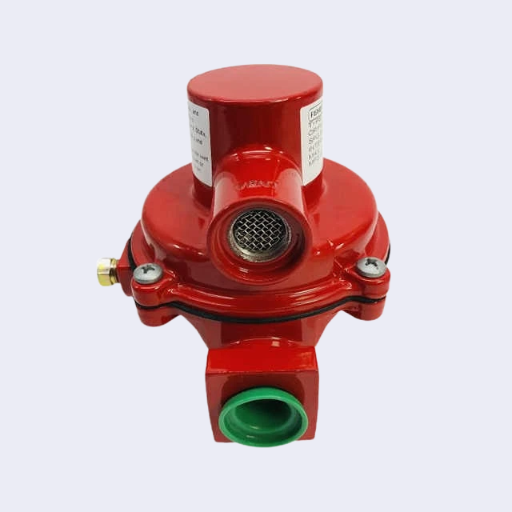

Fisher Type R122H LPG First-Stage Pressure Regulator

The Fisher Type R122H Pressure Regulator is a high-performance first-stage regulator designed for use in LPG (liquefied petroleum gas) systems. Engineered for superior overpressure protection, this regulator ensures safe and reliable pressure reduction from the storage tank to the downstream system.

The R122H is built with rugged materials for durability and optimal performance in residential, commercial, and industrial applications. Its compact design and high capacity make it ideal for installations requiring consistent and precise pressure control. The model R122H-AAJ is factory-configured to meet specific pressure requirements for efficient operation.

Specifications

• Model: Fisher R122H-AAJ

• Application: LPG first-stage pressure regulation

• Material:

  • Body: Die-cast aluminum with corrosion-resistant coating

  • Diaphragm: Fabric-reinforced synthetic elastomer

  • Spring: Zinc-plated steel

• Inlet Connection: 1/2" FNPT

• Outlet Connection: 3/4" FNPT

• Maximum Inlet Pressure: 250 psi (17.2 bar)

• Outlet Pressure Range: Factory set at 10 psi (adjustable)

• Flow Capacity: Up to 1,500,000 BTU/hr (based on LPG)

• Temperature Range: -20°F to +160°F (-29°C to +71°C)

• Overpressure Protection: Integrated high-capacity relief valve to prevent excessive downstream pressure

• Certifications: UL listed, CSA certified

• Mounting Position: Upright for optimal performance

Key Features

1. Superior Overpressure Protection: Built-in relief valve ensures safety in high-pressure conditions.

2. Compact Design: Space-saving configuration for easy installation.

3. Durable Construction: Resistant to harsh environmental conditions and corrosive LPG.

4. High Flow Capacity: Supports a wide range of residential and industrial applications.

5. Reliable Performance: Consistent and precise pressure regulation under varying load conditions.
