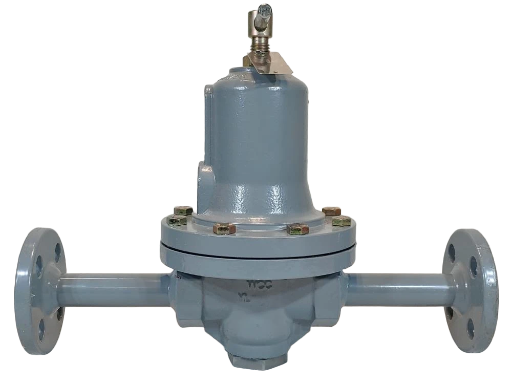

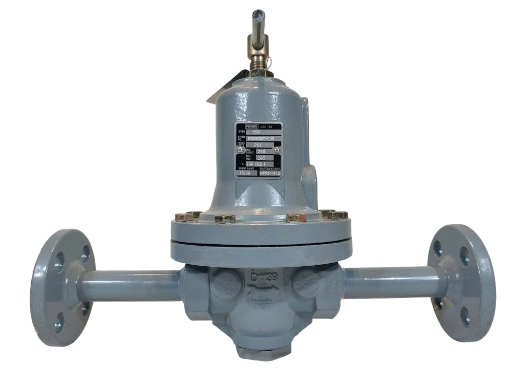

Fisher Type 95H Direct-Operated High-Pressure Reducing Regulator
Rp123000.00
The Fisher Type 95H regulator features a direct-acting spring-loaded diaphragm mechanism. It is typically used for downstream pressure control in gas or liquid systems, with an inlet pressure rating up to 300 psig (20.7 bar) and outlet pressure ranges from 15 to 200 psig (1.0 to 13.8 bar), depending on the selected spring.
The body is available in materials such as cast iron, WCC steel, or CF8M stainless steel, depending on process compatibility. It includes internal overpressure protection, and its diaphragm-to-valve-seat design offers fast-acting regulation with minimal droop and hysteresis.
Technical Specifications – Table
Parameter | Specification |
Regulator Type | Direct-Operated Pressure Reducing Regulator |
Model | Fisher Type 95H |
Application | Gas and liquid pressure control |
Inlet Pressure Rating | Up to 300 psig (20.7 bar) |
Outlet Pressure Range | 15 to 200 psig (1.0 to 13.8 bar) (depending on spring selection) |
Body Material | Cast Iron, WCC Steel, or CF8M Stainless Steel |
End Connections | NPT (Threaded), ANSI Flanged (optional) |
Temperature Range | -20°F to +180°F (-29°C to +82°C) standard |
Flow Direction | Inlet to outlet (horizontal or vertical installations) |
Overpressure Protection | Internal relief (non-vented or vented options available) |
Diaphragm Material | Elastomeric (Nitrile, Neoprene, etc. depending on model) |
Orifice Sizes | Multiple available (typically from 1/4" to 1") |
Cv (Flow Coefficient) | Varies by orifice size, generally between 0.2 and 12 |
