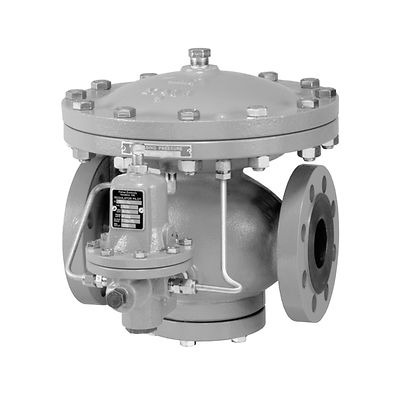

Fisher Type 92B Self-Powered Control Valve
Rp123000.00
Product Description
The Fisher Type 92B Pressure Reducing Valve (PRV) is a durable, industry-standard steam valve that ensures precise and stable pressure control even in harsh operating conditions. Known for its robust design, the Type 92B is tailored to deliver decades of reliable service. It is widely used as the primary pressure-reducing valve in industrial process heating systems, such as heat exchangers, evaporators, digesters, and reactors.
Key Features
Extended Diaphragm Service Life: Enhanced durability for prolonged and consistent performance.
Two-Path Control: Efficient control mechanism ensures precise pressure management.
Resilient Seats: Provides tight shutoff and increased resistance to wear, ensuring reliable sealing.
Bellows Stem Guide: Offers stability and reduces wear on critical components for long-term operation.
Specifications
Pressure Registration: External
Temperature Range: 353°F to 600°F (178°C to 316°C)
Body Sizes:
NPS: 1, 1.5, 2, 3, 4
DN: 25, 40, 50, 80, 100
End Connections:
Threaded: NPT, BSPT
Flanged: CL125FF, CL150RF, CL250RF, CL300RF
Metric: PN 16/25/40
Maximum Inlet Pressure: 300 PSIG (20.7 bar)
Maximum Outlet Pressure: 250 PSIG (17.2 bar)
Spring Ranges: 2 to 250 PSIG (0.138 to 17.2 bar)
Additional Technical Data: Contact your local Emerson sales office or consult technical documentation for further details.
Applications
The Fisher Type 92B is ideal for a variety of industrial heating applications, including:
Heat Exchangers: Ensures stable steam pressure for effective heat transfer.
Evaporators: Maintains precise control for optimal evaporation processes.
Digesters: Provides consistent pressure for uniform digestion in processing industries.
Reactors: Ensures reliable operation in high-pressure chemical reactions.
