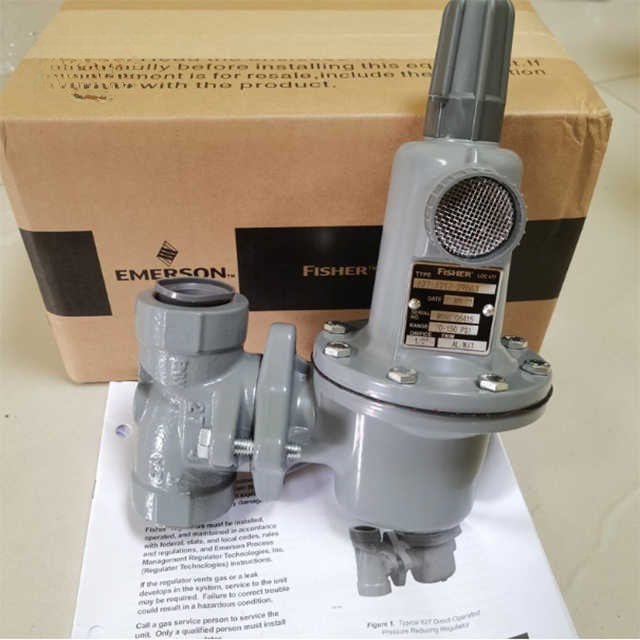

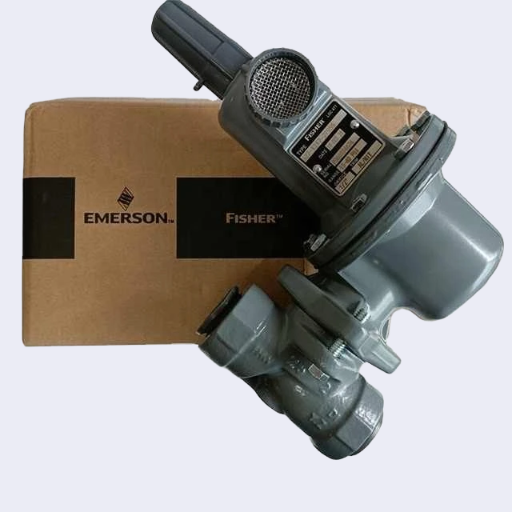

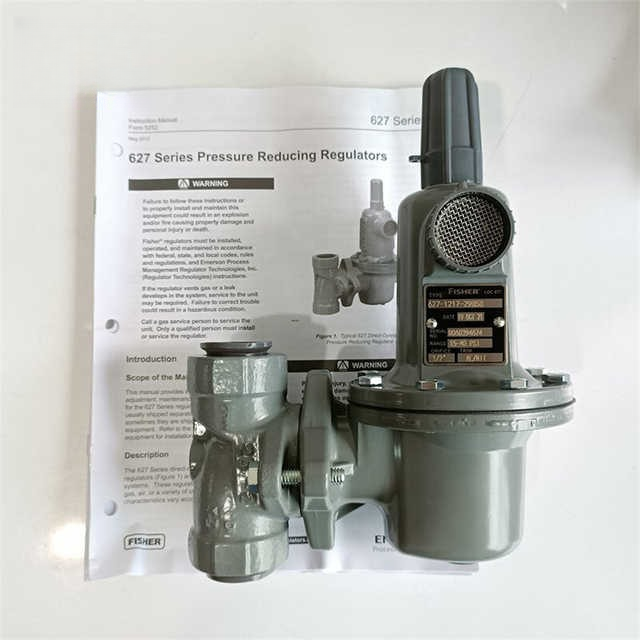

Fisher Type 627 Spring High Pressure Reducing Regulator

The Fisher Type 627 Series 627-496 Spring High Pressure Reducing Regulator is designed for precise and reliable reduction of high inlet pressures in industrial gas systems. This high-performance regulator is ideal for applications requiring controlled outlet pressure within the range of 5 to 20 PSIG, ensuring stable pressure regulation even under varying flow conditions.

The Type 627 Series is specifically engineered to handle high-pressure gas regulation, making it suitable for a wide range of industries, including oil and gas, chemical processing, and power generation. The regulator features a robust construction, simple operation, and excellent flow capacity, making it a reliable choice for both standard and critical pressure control needs.

Specifications

• Model: Fisher Type 627-496

• Regulator Type: Spring-loaded high-pressure reducing regulator

• Application: Gas pressure regulation in industrial applications

• Body Material: Cast iron with corrosion-resistant coating

• Diaphragm Material: Reinforced elastomer for high durability and long life

• Inlet Pressure Range:

  • Minimum: 50 PSIG (3.45 bar)

  • Maximum: 300 PSIG (20.68 bar)

• Outlet Pressure Range: 5 to 20 PSIG (0.34 to 1.38 bar)

• Flow Capacity:

  • Max Flow Rate: Up to 3,000 SCFM (standard cubic feet per minute) of natural gas

• Connection Size:

  • Inlet: 1-1/2" NPT

  • Outlet: 1" NPT

• Operating Temperature Range: -40°F to +160°F (-40°C to +71°C)

• Relief Valve: Integral relief valve for overpressure protection

• Certifications: UL listed, CSA certified

• Mounting Position: Typically vertical installation for optimal diaphragm function

Key Features

1. Precise Pressure Control: Accurate outlet pressure regulation between 5 and 20 PSIG for stable gas flow.

2. Durable Construction: High-quality materials provide long service life and resistance to harsh environments.

3. Spring-Loaded Design: Provides reliable performance without the need for external power sources.

4. Built-In Overpressure Protection: Includes an integral relief valve to protect downstream equipment.

5. High Flow Capacity: Suitable for applications requiring significant flow handling without sacrificing performance.

6. Versatile Application: Ideal for use in a variety of industrial processes requiring consistent pressure regulation.
