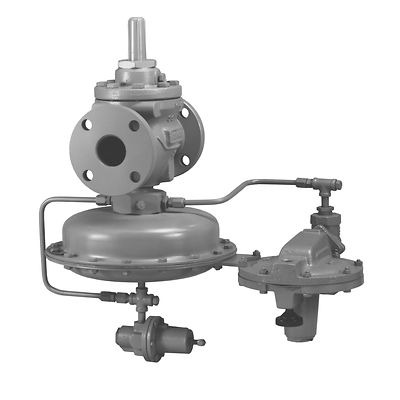

Fisher Type 1290 Vapor Recovery Regulator
Rp123000.00
Product Description
The Fisher Type 1290 vapor recovery regulator is a self-contained, pilot-operated regulator system designed specifically for vapor recovery blanketing gas applications. Its innovative design ensures precise control and reliability, even under demanding conditions.
Key Features
Quick-Change Trim Package: Simplifies maintenance by enabling easy replacement of trim components.
Easy In-Line Maintenance: Allows servicing without removing the valve from the pipeline.
In-Service Travel Inspection: Facilitates quick checks of valve travel while in operation.
High Accuracy: Provides precise regulation for vapor recovery applications.
Proven Technology: Designed with a legacy of reliability and performance in challenging environments.
Specifications
Body Sizes:
NPS 1 or 2 / DN 25 or 50
NPS 3, 4, or 6 / DN 80, 100, or 150
NPS 8 x 6 or 12 x 6 / DN 200 x 150 or 300 x 150
Materials and End Connections:
Cast Iron: NPT, CL125 FF, or CL250 RF flanged.
WCC Steel or CF8M Stainless Steel: NPT, SWE, BWE, CL150 RF, CL300 RF, CL600 RF, or PN 16/25/40 flanged.
Maximum Inlet Pressure:
12.5 psig / 0.86 bar (Type EGR Main Valve).
Outlet Pressure Ranges:
1/2-inch w.c. to 7 psig / 1.2 mbar to 0.48 bar, available in eight ranges.
Pressure Registration: External.
Temperature Capabilities:
NBR: -20 to 180°F / -29 to 82°C.
FKM:
For inches w.c.: 40 to 300°F / 4 to 149°C.
For psig: 0 to 300°F / -18 to 149°C.
EPDM: -20 to 275°F / -29 to 135°C.
FFKM: -20 to 300°F / -29 to 149°C.
Approximate Weights:
NPS 1 / DN 25: 85 lbs / 39 kg.
NPS 2 / DN 50: 100 lbs / 45 kg.
NPS 3 / DN 80: 145 lbs / 66 kg.
NPS 4 / DN 100: 195 lbs / 88 kg.
NPS 6 / DN 150: 380 lbs / 172 kg.
NPS 8 x 6 / DN 200 x 150: 740 lbs / 336 kg.
NPS 12 x 6 / DN 300 x 150: 1265 lbs / 574 kg.
Applications
The Type 1290 vapor recovery regulator is suitable for industries requiring precise gas blanketing in vapor recovery systems, ensuring optimal system performance and compliance with safety standards.
