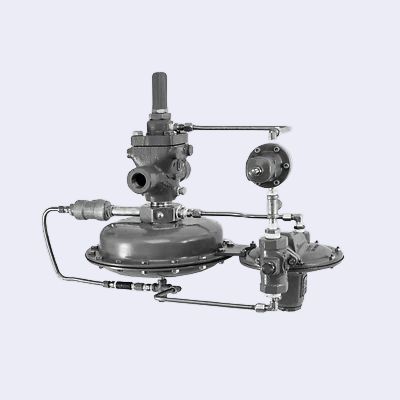

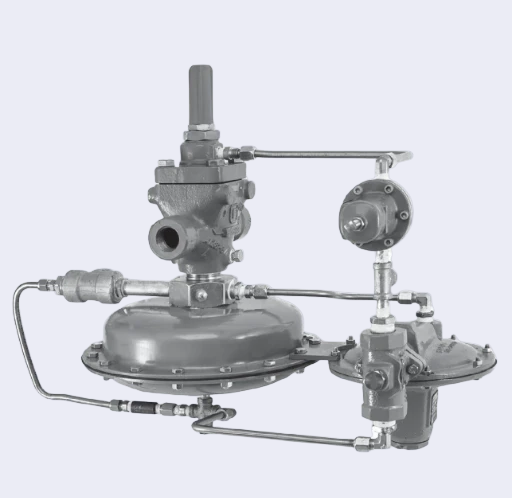

Fisher Type 1190 Low-Pressure Gas Blanketing Regulator
Rp123000.00

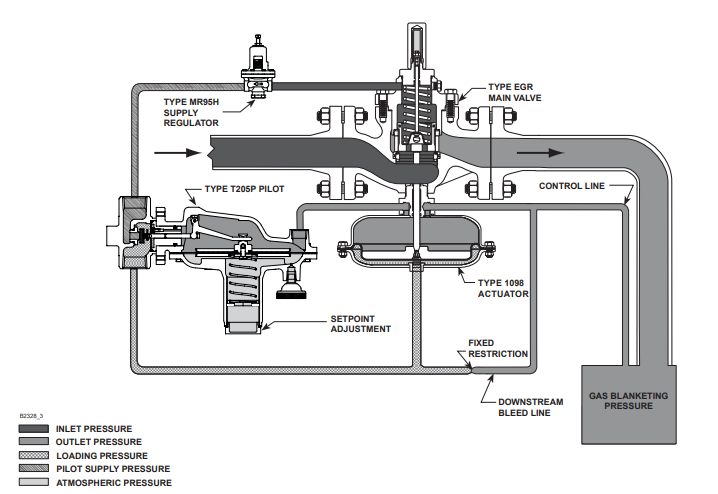

The Fisher Type 1190 is a pilot-operated low-pressure gas blanketing regulator, designed specifically to maintain a precise and positive pressure inside storage tanks. This unit is ideal for applications requiring extremely low and accurate outlet pressures, such as inert gas blanketing of storage vessels containing volatile liquids. It prevents atmospheric contamination and vessel collapse by ensuring a constant pressure blanket. The system includes the Type 1098-EGR main valve actuator, Type T205P sensing pilot, and Type MR95H supply pressure regulator for reliable performance.
Technical Specifications
Parameter | Details |
Manufacturer/Brand | Emerson / Fisher |
Series | Type 1190 |
Function | Low-Pressure Gas Blanketing Regulator |
Operation Type | Pilot-operated with supply pressure regulator |
Body Sizes | NPS 1, 2, 3, 4, 6, 8×6, 12×6 (DN 25–300) |
End Connections | NPT, SWE, BWE, CL150/CL300/CL600 RF, PN16/25/40 Flanged |
Maximum Inlet Pressure | 200 psig (13.8 bar) Cast Iron; 300 psig (20.7 bar) Steel/Stainless Steel |
Maximum Outlet Pressure | 75 psig (5.2 bar) for Steel/Stainless Steel constructions |
Outlet Pressure Range | 0.25 in. w.c. to 7 psig (depending on spring selection) |
Main Valve Flow Characteristic | Linear |
Pressure Registration | External |
Temperature Range | -20 to 300°F (-29 to 149°C) depending on diaphragm material |
Diaphragm Material Options | Nitrile (NBR), FKM, FEP, EPDM, FFKM |
Valve Body Materials | Cast Iron, WCC Steel, CF8M Stainless Steel (NACE options available) |
Trim Options | Standard, Whisper Trim™, Drilled Hole Cages |
Actuator Type | Type 1098-EGR main valve with linear cage |
Pilot | Type T205P |
Supply Regulator | Type MR95H |
Flow Capacity (Cv/Cg) | Varies by size: up to Cv 697 and Cg 22,290 (NPS 12 x 6) |
Mounting Orientation | As per application layout, typically horizontal |
Approximate Weight | From 85 lb (39 kg) up to 1265 lb (574 kg), depending on size |
Applications | Tank blanketing with inert gas (e.g. nitrogen) for volatile liquid storage |
