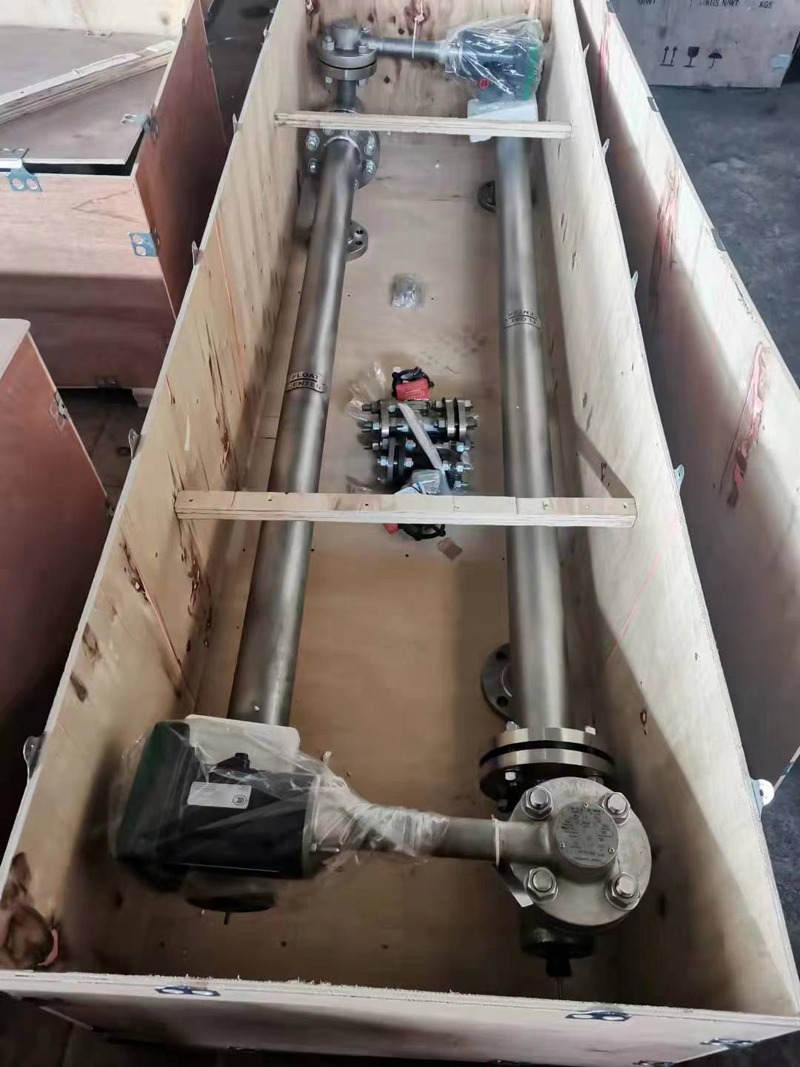

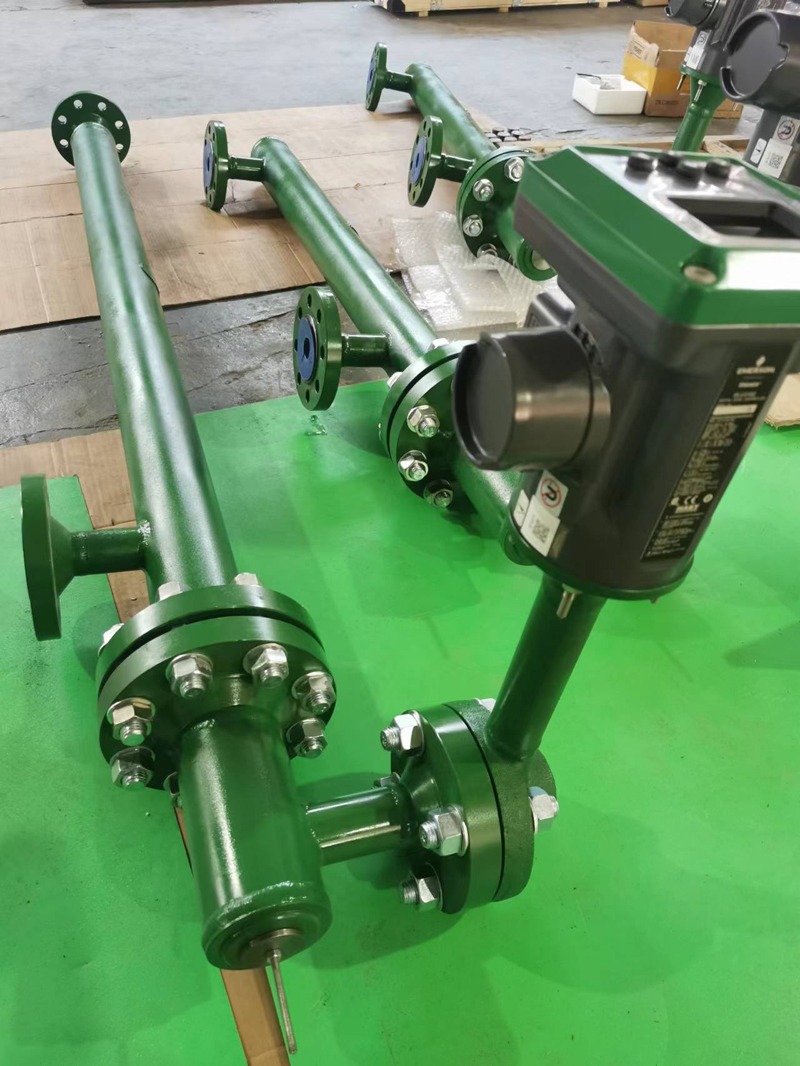

Fisher Torque Tube Displacer Level Transmitter
Rp123000.00
The Fisher™ Torque Tube Displacer Level Transmitter, featuring the DLC3100 digital controller, provides reliable and precise liquid level and interface measurements. Built with a robust torque tube design, it ensures stable performance even in fluctuating process conditions, reducing the effects of environmental disturbances. Its modular construction simplifies maintenance, while the integrated operation button allows for easy configuration and monitoring directly on the device.
This transmitter combines the proven durability of the Fisher 249W torque tube structure with the advanced capabilities of the DLC3100, delivering a cost-effective and high-performing solution for industrial applications.
Specifications
Torque Tube Displacer Assembly
Structure: Fisher 249W Torque Tube
Material Options:
Displacer: Stainless steel, Alloy C, or other corrosion-resistant materials.
Torque Tube: High-strength alloys or corrosion-resistant materials for various applications.
Displacer Length: Configurable, typically up to 14 inches.
Process Connections: Flanged (ANSI Class 150/300/600) or threaded options available.
Process Pressure Range: Suitable for low to high-pressure environments, depending on configuration.
Process Temperature Range: Standard range of -40°C to 250°C (-40°F to 482°F).
DLC3100 Transmitter
Type: Digital Level Controller
Output Signal: 4-20 mA DC with HART® protocol.
Power Supply: 12-42 VDC (loop-powered).
Display and Operation: Integrated LCD display with buttons for configuration.
Accuracy: ±0.1% of span.
Communication Protocol: HART 5 or higher.
Mounting Style: Direct mount to the torque tube assembly or remote mounting.
Enclosure Material: Aluminum or stainless steel.
Ingress Protection: IP66/NEMA 4X.
Certifications: Explosion-proof and intrinsically safe for hazardous environments (certifications vary).
Key Features
This transmitter utilizes a torque tube design to provide stable measurement by minimizing mechanical disturbances. Its modular construction allows for quick component replacement, enhancing ease of maintenance. With the advanced DLC3100 controller, users benefit from seamless integration into modern control systems via HART communication. The transmitter's cost-effective design combines the robust Fisher 249W structure with an intuitive interface, making it an ideal choice for various industries.
Applications
The Fisher Torque Tube Displacer Level Transmitter is suitable for level and interface measurement in industries such as oil and gas, chemical processing, power generation, and water treatment. It performs well in applications like separators, storage tanks, reactors, boilers, and condensate tanks, ensuring reliable and precise control.
