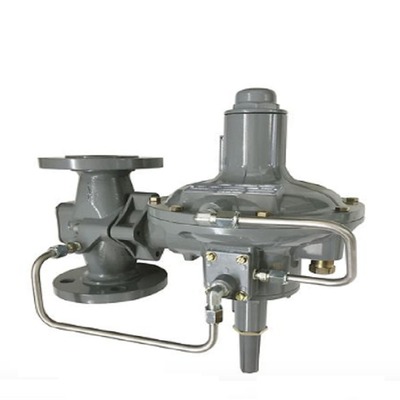

Fisher Series 299H Pressure Reducing Regulator for Gas Distribution

The Fisher Series 299H Pressure Reducing Regulator is designed to provide controlled pressure and high capacity for gas distribution systems. Ideal for a wide range of applications, it offers precise control and reliability in managing the pressure of gas systems. The 299H series regulator is engineered to handle various pressures, providing a stable outlet pressure for efficient and safe gas distribution.

Product Specifications

• Product Name: Fisher Series 299H Pressure Reducing Regulator

• Model: Series 299H

• Brand: Fisher

• Material: Alloy Steel / Stainless Steel

• Body and End Connection Sizes:

  • NPS 1-1/4, NPS 1-1/2, NPS 2 / DN 50

• Maximum Inlet Pressure (Casing):

  • 1/4 x 3/8 inch / 6.4 x 9.5 mm: 175 psig / 12.1 bar

• Outlet Pressure Range:

  • 66 psig / 4.5 bar

• Temperature Range:

  • -20°F to 150°F / -29°C to 66°C

• Body Size Options:

  • NPS 0.5, 0.75, 1, 1.5, 2, 2.5

• Weight:

  • Approximately 21 lbs / 10 kg

Key Features

• Precise Pressure Control: The 299H series regulator provides accurate and stable outlet pressure, ensuring optimal gas distribution for various applications.

• High Capacity: Designed to handle high flow rates, making it suitable for large-scale gas distribution systems.

• Durable Construction: Constructed from high-quality alloy steel or stainless steel for enhanced durability, corrosion resistance, and reliability in demanding environments.

• Wide Temperature Range: Suitable for operation in a variety of environments, with an operating temperature range of -20°F to 150°F (-29°C to 66°C).

• Versatile Size Options: Available in different body sizes to meet specific flow and pressure requirements for different installations.

• Safety and Efficiency: The 299H regulator ensures safe and efficient operation, providing reliable performance in gas distribution and pressure regulation.

Applications

The Fisher Series 299H Pressure Reducing Regulator is ideal for use in the following applications:

• Gas Distribution Systems: Regulating and controlling gas pressure in large-scale gas distribution networks.

• Industrial Gas Systems: Ensuring consistent and safe pressure control in industrial gas pipelines.

• Natural Gas Systems: Suitable for reducing the pressure of natural gas in both commercial and residential applications.

• Oil & Gas: For precise pressure control in upstream and downstream oil and gas operations.

• HVAC Systems: Regulating gas pressure in heating and cooling systems.

• Process Control: Managing gas pressure for various industrial processes that require stable and reliable gas flow.
