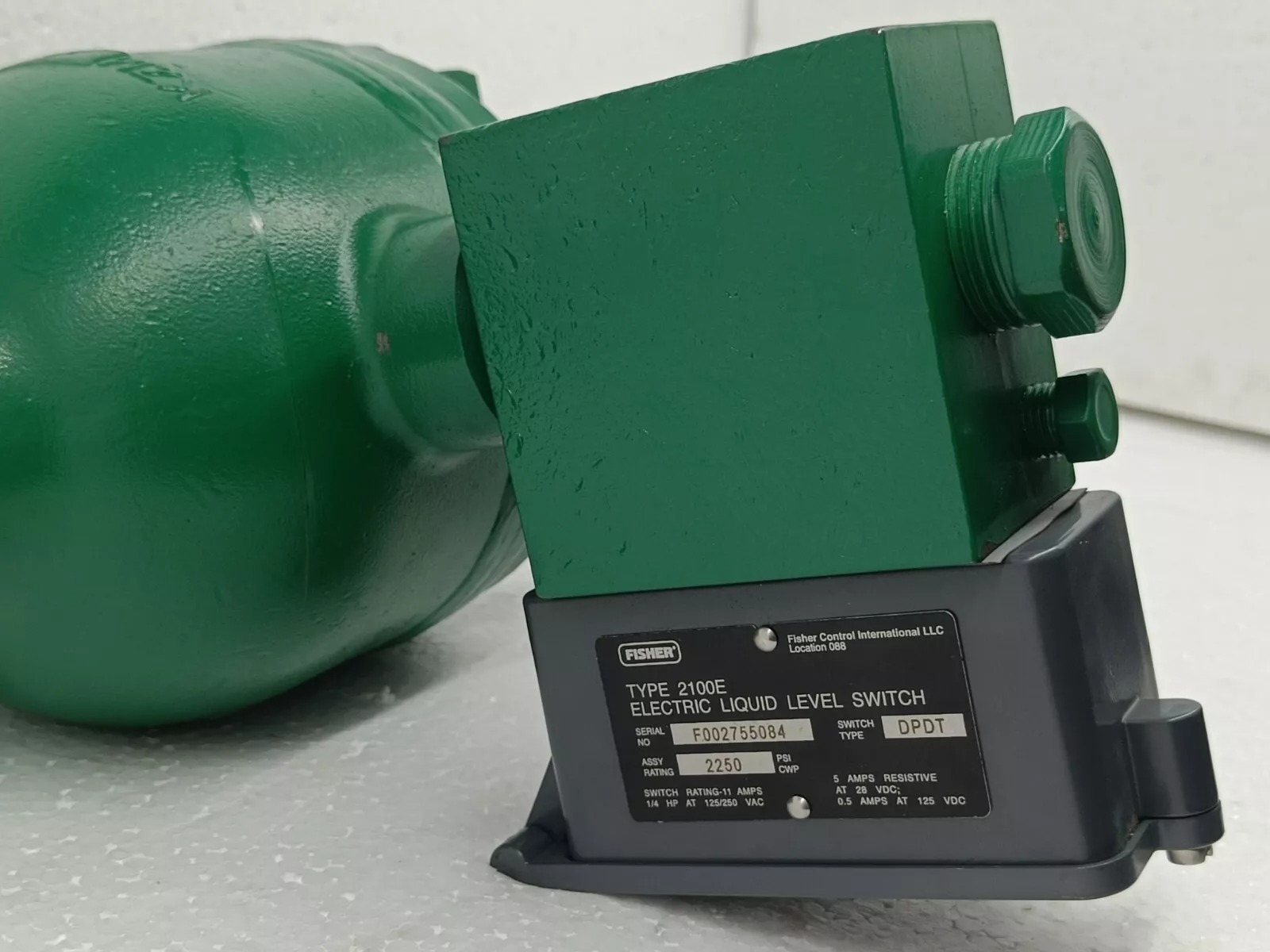

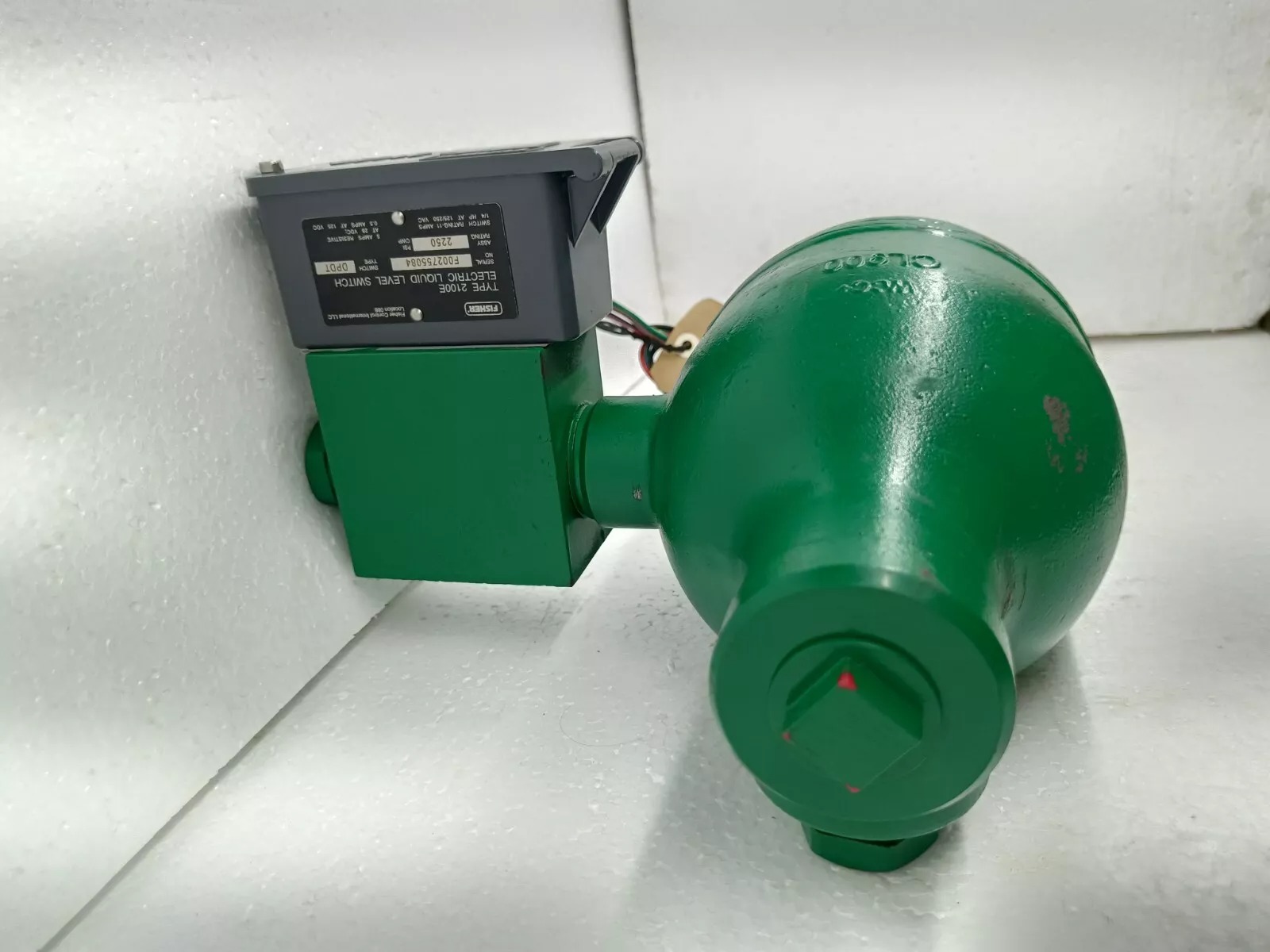

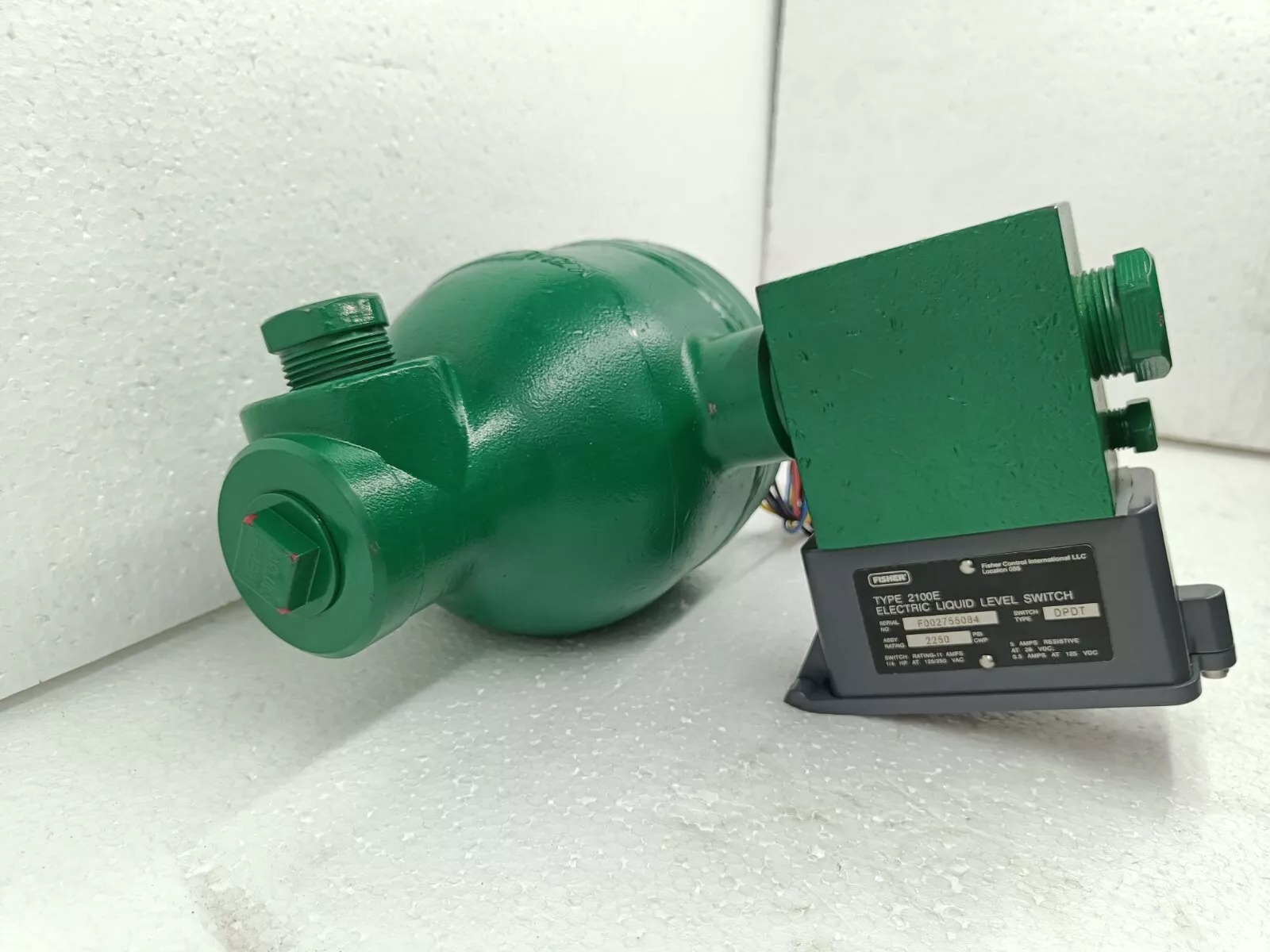

Fisher Level Switch 2100/2100E

The Fisher Level Switch 2100/2100E is a reliable, versatile, and cost-effective instrument designed to provide accurate level measurement and control in a variety of process applications. It is primarily used to detect the presence or absence of liquids or solids in tanks, vessels, and other containers, and provides an on/off output signal for process control systems. The 2100/2100E is available in two models: the standard 2100 and the enhanced 2100E, offering additional features for more demanding applications. With its simple yet robust design, the Fisher Level Switch is ideal for use in industries such as chemical processing, water treatment, and oil & gas.

Specifications:

• Type: On/off level switch for liquid and solid detection

• Model Options: 2100 (Standard), 2100E (Enhanced for more demanding applications)

• Sensor Type: Electro-mechanical or capacitive sensing depending on the model and application

• Mounting Type: Available in both vertical and horizontal mounting options

• Connection Type: Flanged or threaded process connections

• Nominal Size: Standard sizes from 1/2" to 4" (DN 15 to DN 100)

• Materials:

  • Housing: Cast aluminum, stainless steel, or other corrosion-resistant materials

  • Sensing Element: Stainless steel, Hastelloy, or other specialized alloys depending on process media

• Operating Temperature Range:

  • 2100 Model: -40°F to +250°F (-40°C to +121°C)

  • 2100E Model: -40°F to +350°F (-40°C to +177°C) (for more demanding applications)

• Pressure Rating:

  • 2100 Model: Up to 1500 psi (103 bar) depending on materials and configuration

  • 2100E Model: Up to 2500 psi (172 bar) for higher pressure environments

• Electrical Connection: Options for both AC and DC voltage outputs

• Output Signal: SPDT (Single Pole Double Throw) or DPDT (Double Pole Double Throw) switch outputs

• Level Sensing:

  • 2100: Simple on/off point level detection

  • 2100E: Enhanced sensitivity and adjustable deadband for more precise control

• Application Types: Suitable for both high and low liquid/solid levels in storage tanks, reactors, separators, and other vessels

• Hazardous Area Approvals: Available with intrinsic safety approvals for use in hazardous environments (Class I, Div 1 and 2, and ATEX ratings for certain models)

• Ingress Protection: IP66, NEMA 4X for reliable operation in harsh environments

• Approvals and Standards: CE, UL, and CSA certified, and compliant with applicable industry standards for safety and performance
