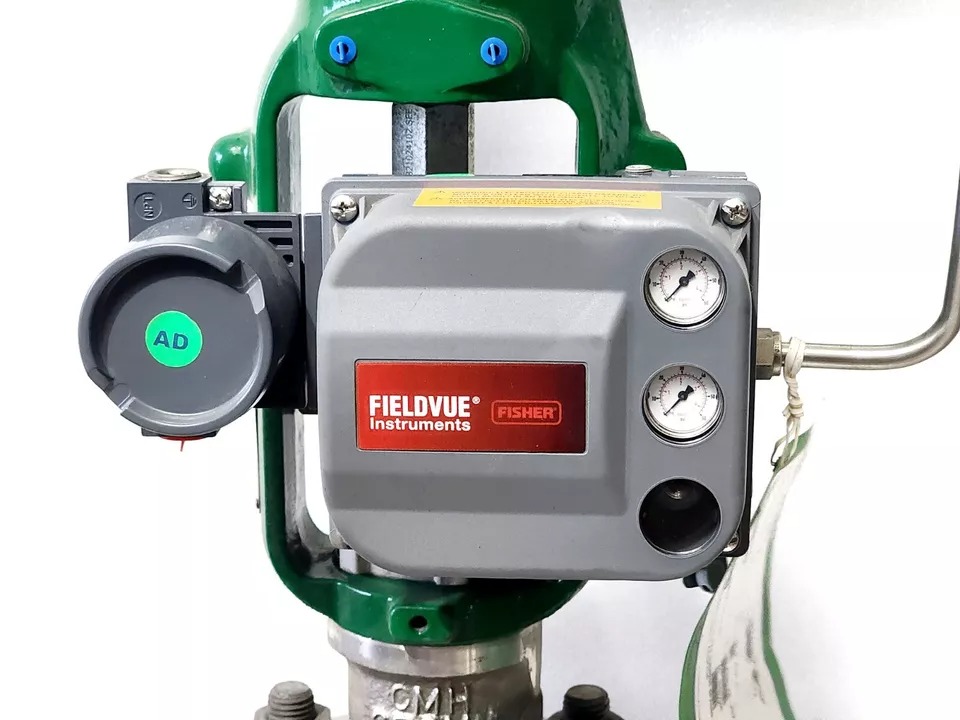

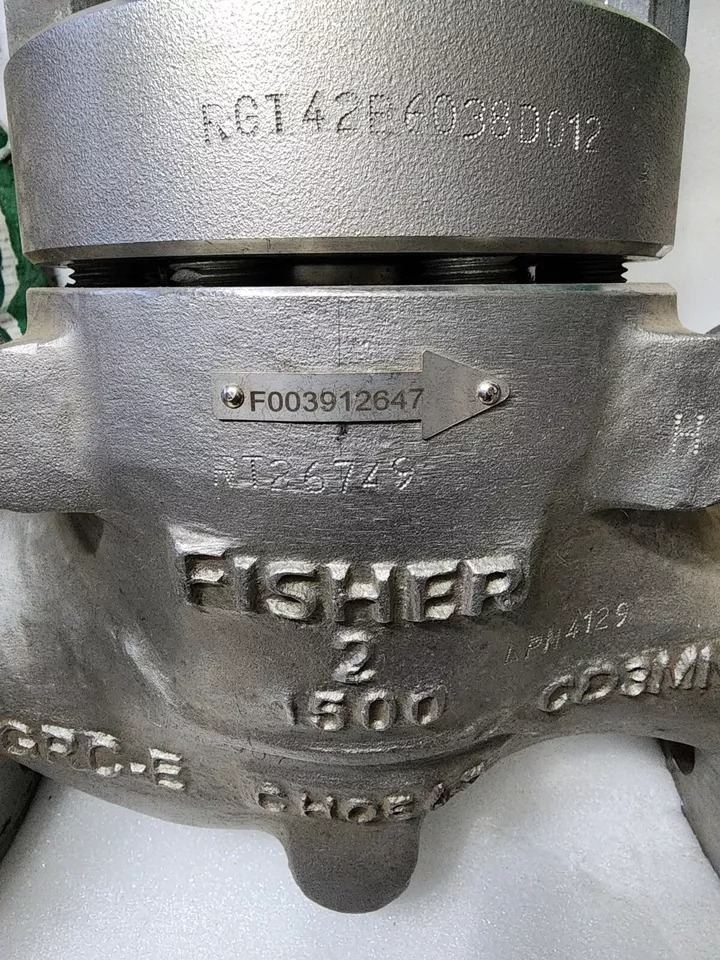

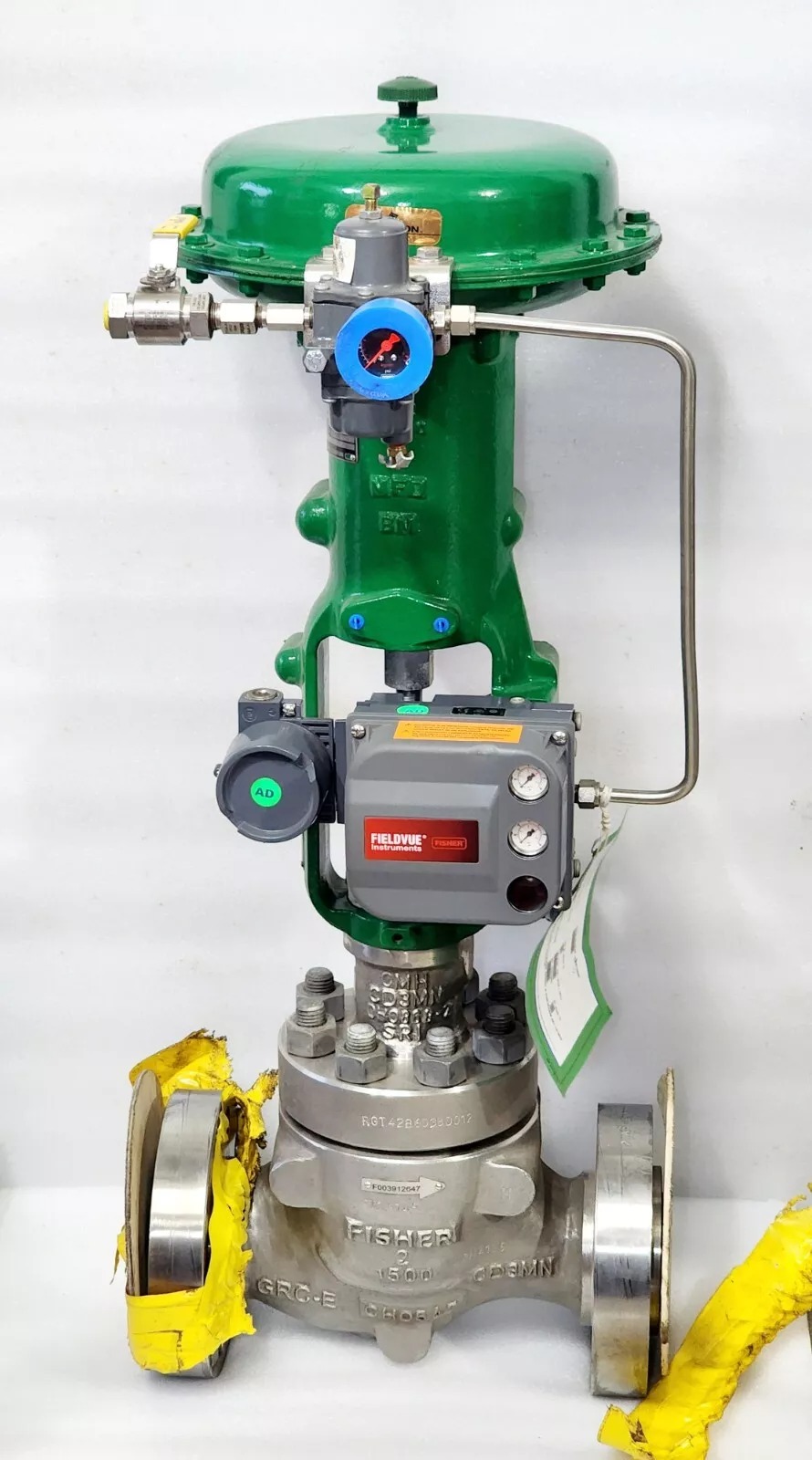

Fisher HPS Globe Valve SS 316 with Emerson DVC6200 Valve Positioner
Rp123000.00
Fisher HPS Globe Valve SS 316 with Emerson DVC6200 Valve Positioner
Description: The Fisher HPS Globe Valve SS 316 with the Emerson DVC6200 Valve Positioner is a high-performance control valve package designed for precise regulation in industrial fluid and gas systems. This system combines the robust construction of the Fisher HPS Globe Valve made from stainless steel (SS 316) with the advanced control capabilities of the Emerson DVC6200 digital valve positioner. This combination delivers precise flow control, enhanced performance, and reliability in demanding applications, ensuring stable operation and optimized process control.
The Fisher HPS Globe Valve features a globe-style design, which provides smooth flow regulation, ideal for high-accuracy applications in industries like chemical processing, power generation, and oil and gas. The SS 316 material ensures superior corrosion resistance and longevity, even in harsh environments.
Paired with the Emerson DVC6200 Valve Positioner, this valve system is optimized for modulating control of the valve's position. The DVC6200 ensures precise valve movement by receiving a control signal and positioning the valve actuator accordingly, providing high accuracy and repeatability in valve control. It also features diagnostics for predictive maintenance and performance monitoring, contributing to reduced downtime and operational costs.
Key Features:
Fisher HPS Globe Valve: Durable SS 316 construction for high corrosion resistance and long-term reliability.
Emerson DVC6200 Valve Positioner: Advanced digital positioner with diagnostics and precise control capabilities.
Globe valve design provides smooth and stable control of flow rates.
Suitable for high-accuracy, modulating control applications.
Ideal for demanding industries such as chemical, oil & gas, power generation, and refining.
Low power consumption and enhanced performance in a compact design.
Specifications:
Fisher HPS Globe Valve:
Size: Available in various sizes (typically 1-inch to 12-inch, depending on application requirements).
Body Material: SS 316 (Stainless Steel) for excellent corrosion resistance.
Trim Material: Stainless Steel or other materials based on service conditions.
Pressure Rating: ANSI 150, 300, or 600, depending on specific model.
Flow Coefficient (Cv): Varies based on valve size and trim (refer to Fisher catalog for exact specifications).
Temperature Range: Typically -20°F to 450°F (-29°C to 232°C), depending on materials and service conditions.
Connection Type: Flanged or threaded, based on application and installation requirements.
Emerson DVC6200 Valve Positioner:
Signal Input: 4-20 mA (standard for most control systems).
Output Type: Proportional control for precise valve position adjustment.
Supply Pressure: 20-100 psi (1.4-6.9 bar).
Power Supply: 24 VDC, providing efficient operation with low power consumption.
Accuracy: ±0.2% of full scale.
Communication Protocols: HART protocol for diagnostics and communication with control systems.
Display: Digital display for easy configuration and monitoring of performance.
Environment Rating: Suitable for outdoor installations with IP66/IP67 rating (depending on model).
Performance Characteristics:
Provides highly accurate and responsive control for a wide range of fluid and gas control applications.
The Fisher HPS Globe Valve offers smooth flow regulation, ensuring minimal turbulence and stable operation.
The DVC6200 Valve Positioner offers high precision and is equipped with advanced diagnostics, improving system reliability and reducing maintenance costs.
Suitable for applications requiring fine-tuned flow control, such as pressure, temperature, and level control systems.
Designed for use in industries that demand robust, reliable, and efficient valve control.
