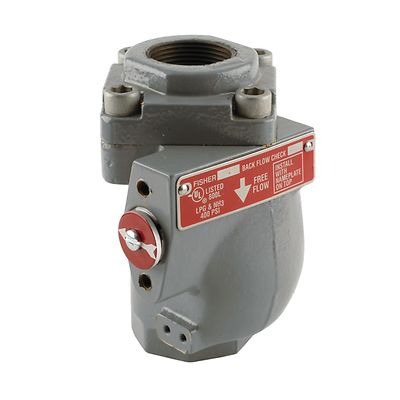

Fisher G200/G201 Series Back Check Valves
Rp123000.00
The Fisher G200/G201 Series back check valves are designed for heavy-duty in-line service in bulk plant transfer areas. These valves are ideal for LP-Gas or Anhydrous Ammonia (NH3) applications. The valve features a spring-loaded poppet that opens when pressure differential is created. The soft seat construction ensures a tight shutoff, allowing the piping to be blown down for maintenance. The Type G201 model includes a built-in flow indicator mechanism, which serves as a replacement for sight flow indicators.
Key Features
Rugged construction for durability and long-lasting performance
High-flow capacity to support efficient fluid handling
Soft seat for tight shutoff, ensuring reliable sealing during maintenance
Flow indicator mechanism included in Type G201, offering an alternative to sight flow indicators
Specifications
Body Sizes and End Connection Styles:
Types G200-10/G201-10: 1-1/4-inch FNPT
G200-16/G201-16: 2-inch FNPT
G200-24/G201-24: 3-inch FNPT
Maximum Inlet Pressure: 400 psi / 27.6 bar
Temperature Capabilities: -40°F to 160°F / -40°C to 71°C
