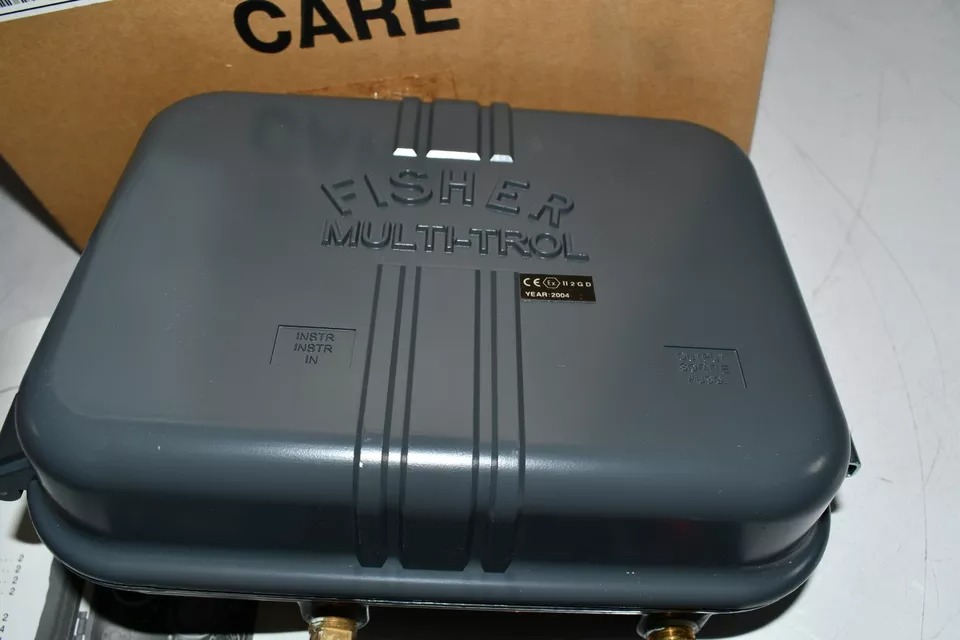

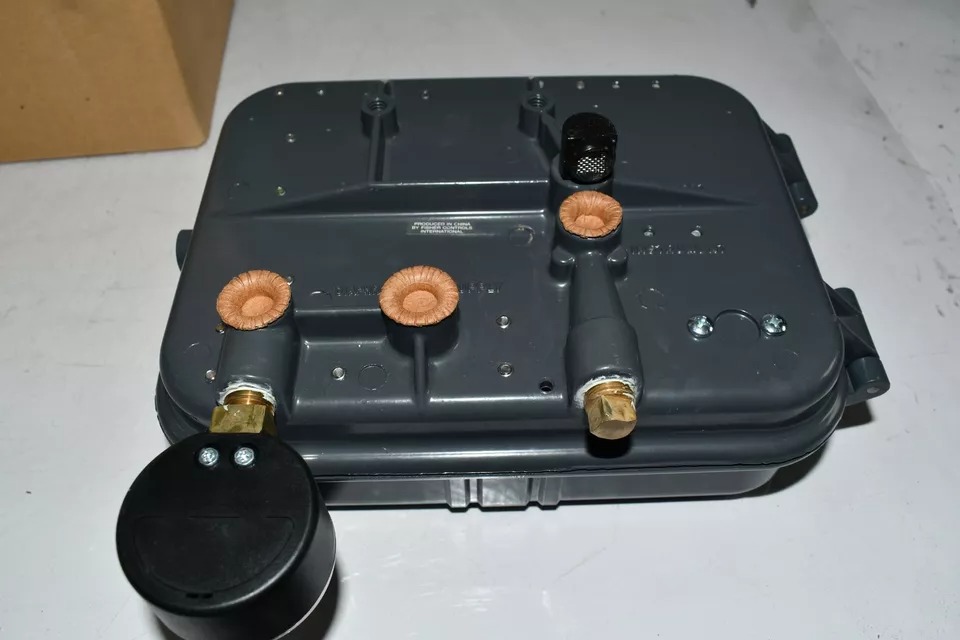

Fisher FS2516-8 Multi-Trol Receiver/Controller 6-30 PSI

The Fisher™ FS2516-8 Multi-Trol Receiver/Controller is a versatile pneumatic instrument designed for use in process control applications requiring precise level, pressure, or temperature regulation. This receiver/controller interfaces with a variety of process transmitters to provide accurate control of final control elements, such as valves.

Key Features

• Wide Range Signal Compatibility:

  • Operates with a pneumatic input signal range of 6-30 PSI, accommodating various process conditions and applications.

• Integrated Control Functions:

  • Combines receiving and controlling functions into a single unit, simplifying installation and operation.

• Robust Construction:

  • Built with durable materials to ensure reliable performance in demanding industrial environments, including corrosive and high-temperature settings.

• Precise Output Signal:

  • Provides a proportional pneumatic output signal to the actuator, enabling accurate valve control for improved process stability.

• Adjustable Settings:

  • Features easy-to-adjust gain, setpoint, and sensitivity settings, allowing customization for specific application requirements.

Specifications

• Model: FS2516-8

• Input Signal: 6-30 PSI (standard pneumatic range)

• Output Signal: Pneumatic signal proportional to the input and setpoint deviation

• Mounting Style: Panel or field-mounted configuration for flexible installation options

• Material of Construction:

  • Housing: Corrosion-resistant alloy

  • Internal Components: High-quality metals and elastomers for longevity and reliability

• Temperature Range: Suitable for ambient and process conditions typical of industrial environments

• Control Type: Proportional pneumatic control for precise valve positioning

Applications

The Fisher FS2516-8 Multi-Trol Receiver/Controller is ideal for applications in:

• Oil and Gas: Managing pressure and flow in pipelines and separators.

• Chemical Processing: Maintaining level and temperature control in reactors and storage tanks.

• Power Generation: Regulating steam and water flow in boilers and condensers.

• Water Treatment: Ensuring accurate flow and level control in treatment facilities.

Valve Parts and Accessories

The FS2516-8 Receiver/Controller supports a range of valve parts and accessories, including:

• Actuators: Compatible with Fisher pneumatic actuators for both rotary and linear valves.

• Positioners: Enhances control accuracy when paired with Fisher valve positioners.

• Mounting Kits: Custom mounting hardware for seamless integration with various valve types.

• Replacement Parts: Available components for routine maintenance, including seals, diaphragms, and connectors.
