Fisher FIELDVUE DLC3100 Digital Level Controller
Rp123000.00
Description

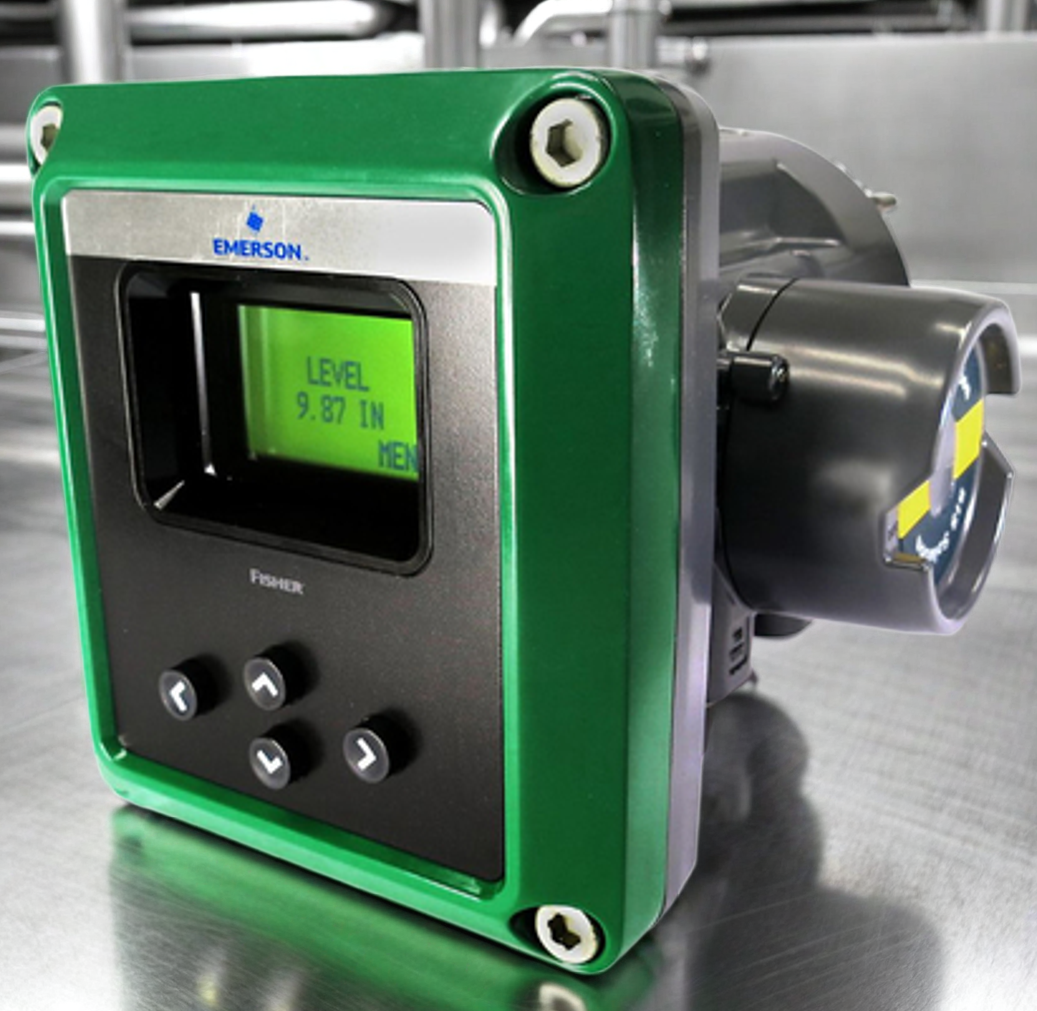

The Fisher FIELDVUE DLC3100 Digital Level Controller is a HART-based device designed to measure and control liquid level, interface, or density using a displacer and torque tube sensor system. It features a local operator interface with four push buttons and an LCD display for easy configuration and calibration. The DLC3100 provides advanced diagnostics in compliance with NAMUR NE107 and supports both standard control and Safety Instrumented System (SIS) applications. It can be mounted on Fisher 249 Series displacer sensors and is suitable for use in hazardous areas.
Specifications
Parameter | Specification |
Model / Type | FIELDVUE DLC3100 |
Measurement Function | Level, Interface, Density |
Communication Protocol | HART 5–7 with 4–20 mA analog output |
Analog Output | 4–20 mA DC, two-wire loop powered |
User Interface | 4 push buttons with LCD display |
Diagnostics | Device diagnostics compliant with NE107 |
Power Supply | Loop powered (2-wire) |
Operating Temperature Range | –40 °C to +80 °C |

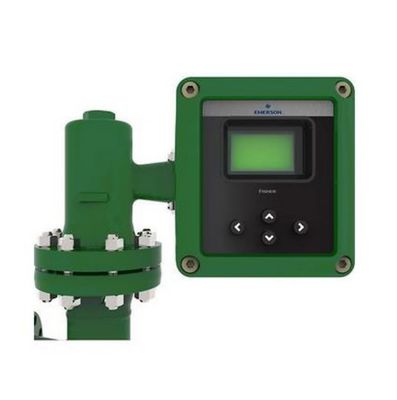

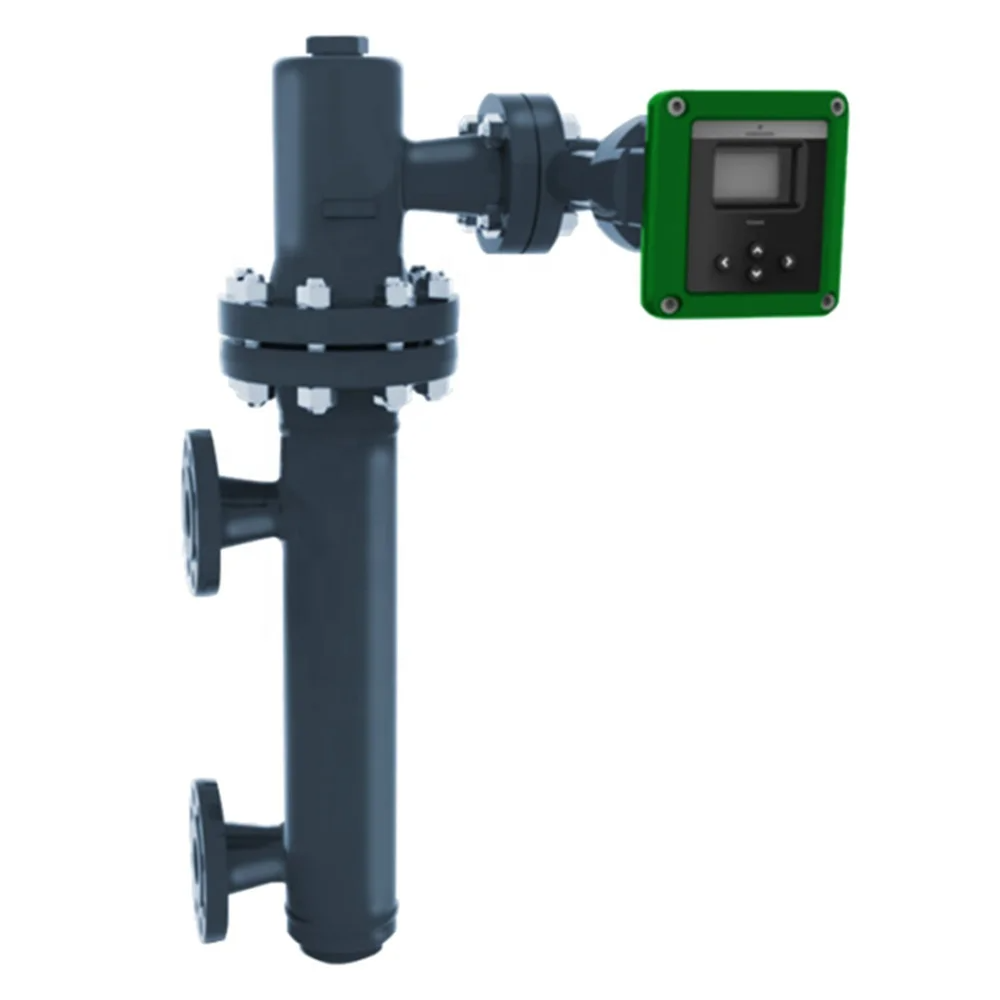

Mounting | For Fisher 249 Series torque tube / displacer sensors |
Hazardous Area Approvals | Intrinsically Safe, Explosion-Proof, Dust-Ignition-Proof, Flame-Proof |
Certifications | CSA and other international approvals |
Overvoltage / Surge Protection | Integrated transient protection |
Altitude Rating | Up to 2,000 m (6,562 ft) |
Temperature Effect | < 0.02 % of full scale per °C |
Output Saturation Levels | 3.8 mA (low) / 20.5 mA (high) |
Alarm Current Levels | < 3.6 mA or > 21.0 mA (configurable) |
Device Tagging | Tag: 8 characters / Long Tag: 32 characters |
Safety Integrity Level (SIS version) | SIL 2 (IEC 61508 / 61511 compliant) |
