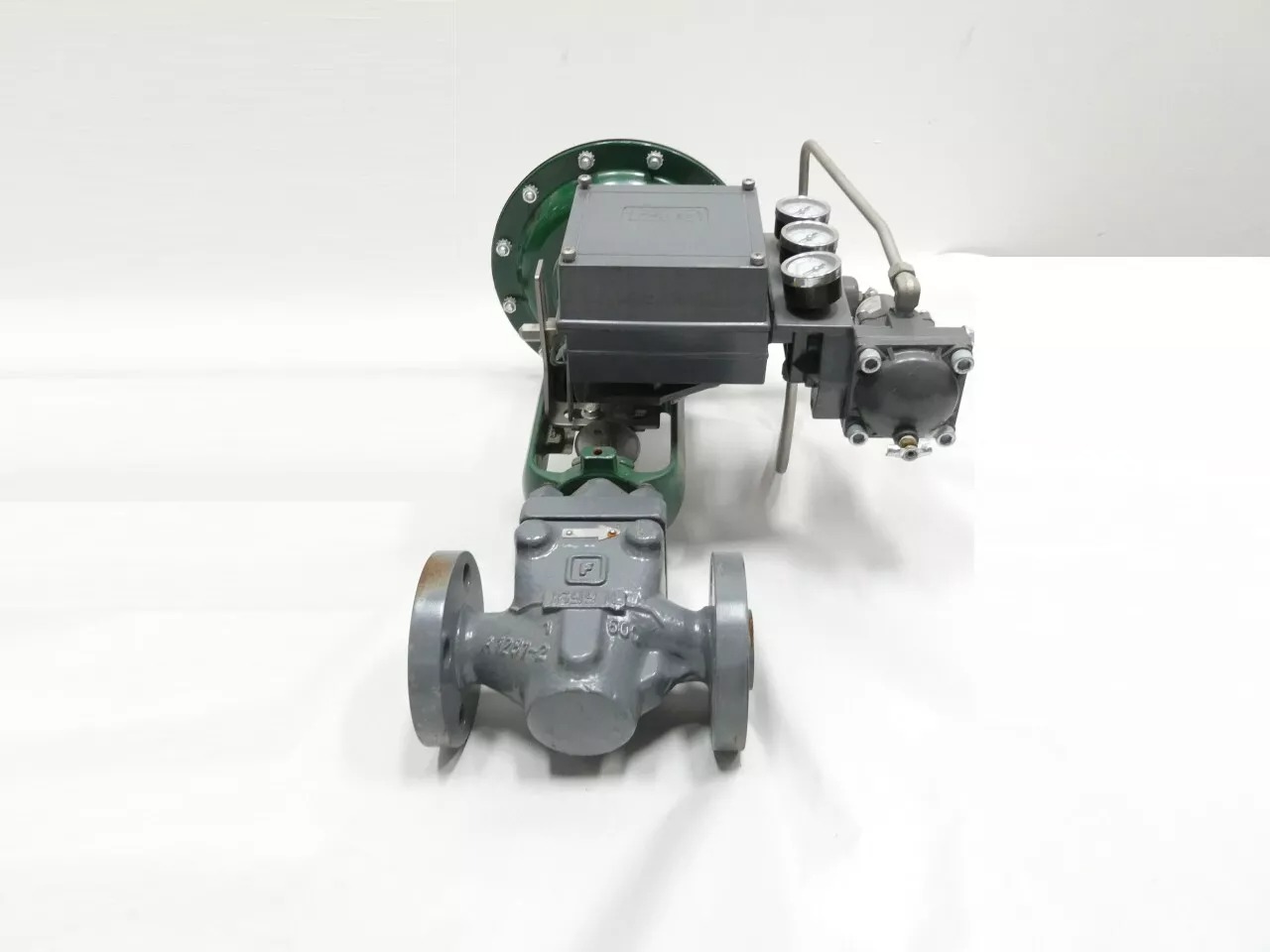

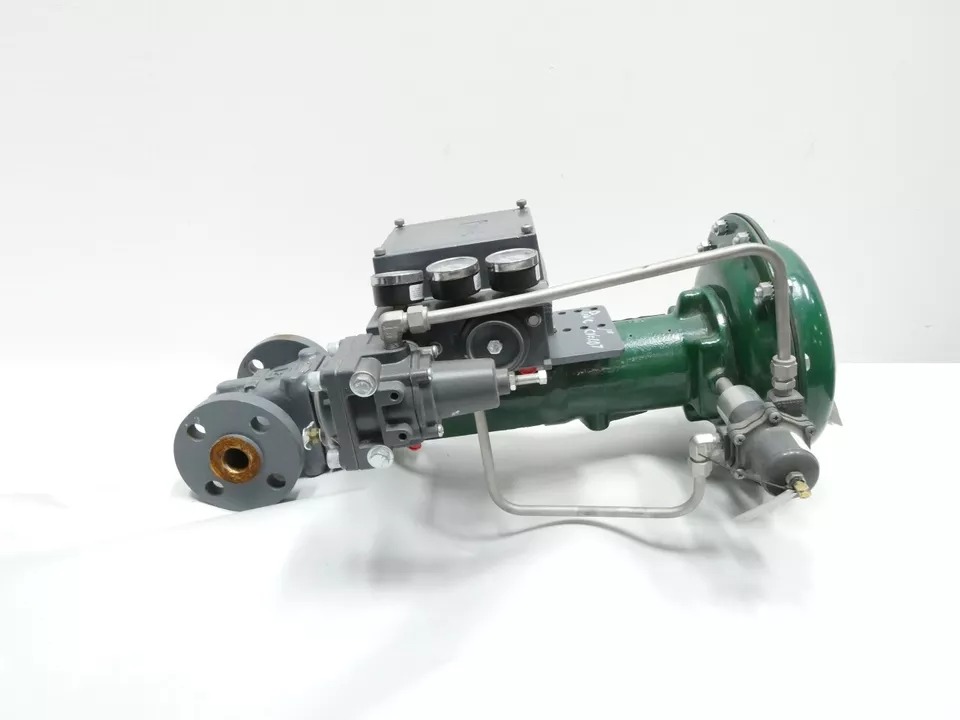

Fisher EZ 667 3582G Pneumatic Steel Flanged Control Valve, 1-Inch
Rp123000.00
Fisher EZ 667 3582G Pneumatic Steel Flanged Control Valve, 1-Inch
Description:
The Fisher EZ 667 Control Valve with a 3582G Pneumatic Actuator is a robust and high-performance control valve designed for precise modulation of fluid flow in industrial applications. With a 1-inch flanged steel body, it is built for durability and reliability under demanding conditions. The combination of the Fisher EZ series valve and the 3582G actuator provides accurate, responsive control for critical processes in industries such as oil and gas, power generation, and chemical processing.
The 3582G pneumatic actuator is a diaphragm-type actuator that uses pneumatic signals to control valve position, ensuring smooth and precise valve operation. This valve system is ideal for modulating applications requiring high accuracy and stability.
Key Features:
Fisher EZ Series Valve: Reliable control with minimal maintenance requirements.
3582G Pneumatic Actuator: Provides fast, accurate, and responsive valve positioning using pneumatic signals.
Steel Body Construction: Ensures strength, durability, and resistance to harsh process conditions.
Flanged Connections: Allows easy installation and secure fitting in process systems.
Size: 1-inch nominal valve size for precise flow control in smaller pipelines.
Wide Range of Applications: Suitable for controlling flow, pressure, and temperature in various industries.
Specifications:
Valve Model: Fisher EZ 667
Actuator Model: Fisher 3582G Pneumatic Actuator
Valve Size: 1 Inch
Body Material: Steel (typically carbon steel or stainless steel, based on application)
Connection Type: Flanged (ANSI Class options available, e.g., Class 150, 300, or higher)
Pressure Rating: Up to the applicable ANSI pressure class for the specific configuration
Trim Material: Stainless steel or alloy trim, depending on service conditions
Flow Characteristics: Equal percentage, linear, or quick-opening trim options
Flow Coefficient (Cv): Varies depending on trim and configuration (refer to catalog for detailed values)
Actuator Type: 3582G Pneumatic Actuator (diaphragm, spring-return type)
Signal Input: 3-15 psi or 6-30 psi pneumatic signal range
Temperature Range: -20°F to 450°F (-29°C to 232°C), based on material selection
Supply Pressure: 20-100 psi (1.4-6.9 bar) for the actuator operation
Applications:
Modulating flow control of liquids, gases, or steam
Pressure and temperature regulation in pipelines
Used in oil and gas, chemical processing, power generation, and general industrial processes
Performance Characteristics:
The Fisher EZ 667 control valve provides smooth, accurate modulation of flow rates, ensuring stable process conditions.
The 3582G pneumatic actuator offers responsive and reliable control, even under varying input pressures.
Built with a steel body, the valve is highly resistant to pressure, temperature, and corrosive environments.
Flanged connections ensure secure, leak-free installation, reducing downtime and maintenance costs.
