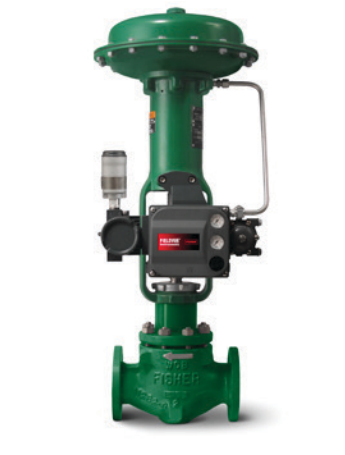

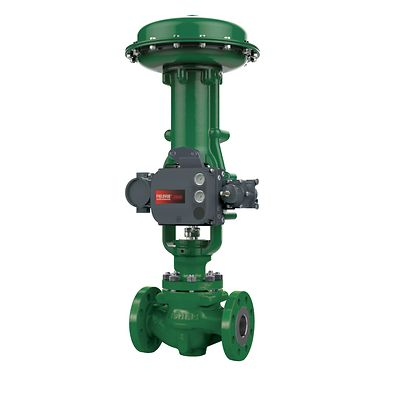

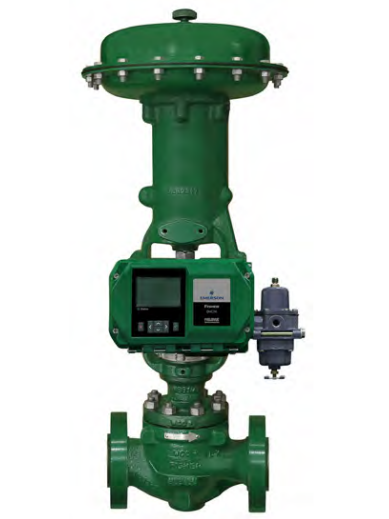

Fisher ET, EAT, and ETR Control Valves
Rp123000.00
Fisher ET, EAT, and ETR Control Valves
Product Description
The Fisher™ ET, EAT, and ETR control valve series are versatile, high-performance, sliding-stem globe valves engineered for reliable throttling control across a wide range of industrial process applications. These valves are designed to deliver accurate, stable control performance while maintaining long-term durability under demanding operating conditions.
The ET Series is the standard globe-style configuration, the EAT Series offers a high-capacity angle valve design for specialized flow conditions, and the ETR Series provides a reduced-capacity version optimized for precise control at lower flow rates.
Constructed with robust materials and featuring proven trim technologies, these valves provide excellent shutoff capability, resistance to corrosion and erosion, and compatibility with a broad range of fluids—including liquids, gases, and steam. With Fisher’s modular actuator and packing options, the ET/EAT/ETR series ensures superior performance in industries such as oil & gas, chemical, petrochemical, power generation, and general industrial process systems.
Technical Specifications
Valve Type & Design
Valve Series: Fisher ET (Inline Globe), EAT (Angle Body), ETR (Reduced-Port Inline)
Valve Style: Single-port, sliding-stem control valve
Flow Direction: Typically flow-to-open; flow-to-close optional depending on service requirements
Body Designs:
ET: Globe, end-to-end
EAT: Angle body for high-capacity or slurry/dirty service
ETR: Reduced-capacity globe for precision low-flow control
Valve Sizes
ET Series: NPS 1 through NPS 16
EAT Series: NPS 1 through NPS 12
ETR Series: NPS 1/2 through NPS 4 (reduced port)
Standards: NPS (ASME) and DN (IEC/ISO)
Pressure Ratings
ASME Pressure Classes: Class 150, 300, 600
PN Ratings: PN10, PN16, PN25, PN40 depending on body material and region
Higher ratings available with custom materials.
Materials of Construction
Body Materials:
Carbon Steel (WCC, WCB)
Stainless Steel (316/316L, CF8M)
Alloy Steels (Chrome-Moly)
NACE-compliant materials available for sour service
Trim Materials:
300-series Stainless Steel
Hardened trim options for erosive/dirty service
Tungsten carbide for severe service (optional)
Flow Characteristics
Standard Characteristic:
Equal Percentage (typical for most control applications)
Other Characteristics:
Linear and Modified Parabolic options depending on trim selection
ETR Series: Special reduced-capacity trim for accurate control at low flow rates.
Shutoff Class
Per FCI 70-2 / IEC 60534-4:
Class II
Class IV (standard for metal seated)
Class V (optional)
Soft-seat options to achieve Class VI (bubble-tight)
Packing & Sealing
Standard Packing: PTFE V-ring
Optional Packing Systems:
ENVIRO-SEAL™ Low Emission Packing (PTFE or Graphite)
HIGH-SEAL™ Packing
Designed to minimize fugitive emissions and ensure long-term packing life.
Actuation
Compatible with:
Fisher™ diaphragm actuators (e.g., 657/667)
Fisher piston actuators
Rotary-to-linear actuators for special configurations
Smart positioners such as FIELDVUE™ DVC6200/DVC2000 for advanced diagnostics and control performance.
Operating Conditions
Temperature Range:
Standard trims for -29°C to +232°C (-20°F to +450°F)
High-temperature trims available up to 427°C (800°F)
Cryogenic options available depending on body configuration
Media Compatibility:
Clean liquids
Gases
Steam
Corrosive or erosive fluids (with special trim/material options)
Key Features
Precise throttling control with low deadband and high stability
Versatile body and trim configurations for broad application coverage
Field-proven Fisher packing systems reduce fugitive emissions
Easy maintenance with quick trim access
Optional severe-service trims for cavitation or high-pressure drops
Compliance with NACE MR0103 / MR0175 for sour environments
Suitable for SIL-rated safety instrumented systems
