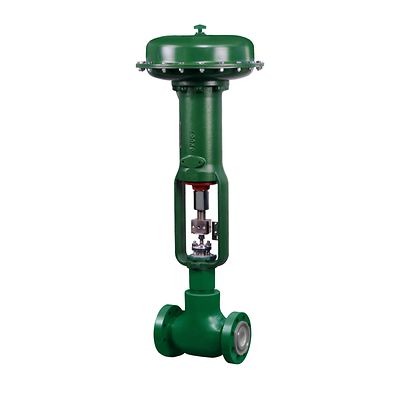

Fisher D Control Valve
Rp123000.00
The Fisher D and DA series control valves are single-port, high-pressure valves designed for use in oil and gas production. These valves excel in throttling or on/off control of liquids or gases that are gritty, sticky, or prone to build-up on internal parts. The DA model is especially suited for angle piping or applications requiring a self-draining valve.
Key Features
Massive Guiding: Ensures positive alignment of the valve plug in the seat ring for high-pressure drop applications. The screwed-in seat ring completely encloses the seat ring gasket.
Easy Maintenance: The screwed bonnet/body joint allows for quick repairs with minimal tools.
Erosive Service Trim: Available with VTC (ceramic) trim for erosive applications. The valve plug can feature a tungsten carbide tip, and the seat ring can be fitted with a full-bore tungsten carbide insert for enhanced durability.
Standards Compliance: Valve body and end connections meet API and ASME standards.
NACE Trim: Standard NACE trim and bolting materials meet NACE MR0175-2002 requirements for corrosion-resistant applications.
Specifications
Certifications: PED, CUTR, ATEX, CRN
Critical Service: Dirty Service, Erosive
Flow Characteristics: Equal Percentage
Material: Carbon Steel
Operating Temperature: Standard Temperature
Pressure Class: ANSI CL150, CL300, CL600, CL1500, 3600 psi CWP, 6000 psi CWP
Process Connection Type: Threaded, Flanged, Socket Weld, RTJ
Shutoff Class: Class IV (FCI 70-2), Class V (FCI 70-2)
Valve Size: NPS 1, NPS 2
Valve Size Standard: NPS
Other Configurations: For additional specifications or options, contact your local Emerson business partner or sales office.
