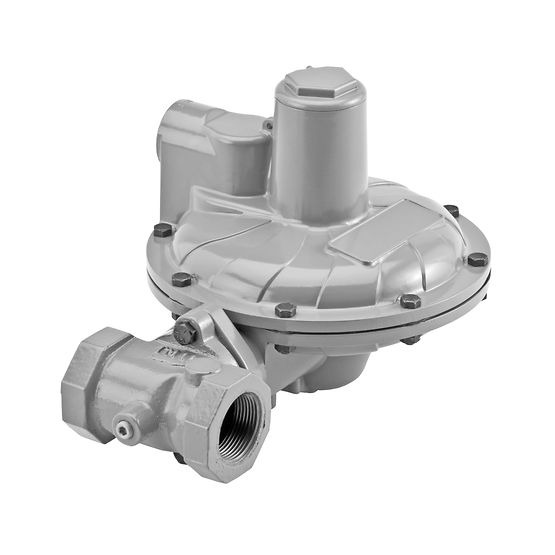

Fisher CS200 Series Pressure Reducing Regulators
Rp123000.00
The Fisher CS200 Series is a direct-operated, spring-loaded pressure-reducing regulator designed for commercial and light industrial applications. This series offers a wide selection of body sizes, outlet pressure settings, and orifice sizes. The CS200 is known for its ease of maintenance and installation, featuring a full 360-degree rotation of the actuator via a union ring connection between the body and casing, enhancing flexibility and serviceability.
Key Features
Wide range of NPT body sizes and end connections.
Easy installation and maintenance with only standard tools required for pressure adjustment and orifice removal.
Fixed factor accuracy, approved by PFM.
Application flexibility, including internal relief, non-relieving, and Secondary Seat™ protection.
Secondary Seat Protection provides an additional seating and disk surface to ensure lockup in case of damage to the primary disk or orifice seat, or if debris obstructs the flow path.
Specifications
Available Configurations:
Stand-Alone Regulator
Non-relief
Internal Relief
Internal Pressure Registration
Secondary Seat
Secondary Seat with Bleed
Body Sizes and End Connection Style:
3/4, 3/4 x 1, 3/4 x 1-1/4, 1, 1 x 1-1/4, 1-1/4 NPT
Maximum Inlet Pressure: 175 psig / 12.1 bar
Outlet Pressure Ranges: 3.5-inches w.c. to 2.0 psig / 9 mbar to 0.14 bar in eight ranges
Temperature Capabilities: -20 to 150°F / -29 to 66°C
Approximate Weight: 8 pounds / 4 kg
Hydrogen (H2): The CS200 family has been validated for hydrogen service through extensive high-pressure hydrogen testing, ensuring material compatibility and sealing performance. For additional details regarding the evaluation and testing, refer to the document "Blending Hydrogen with Natural Gas: Technical Factors to Consider.
