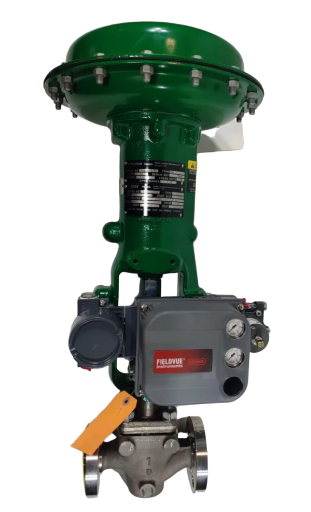

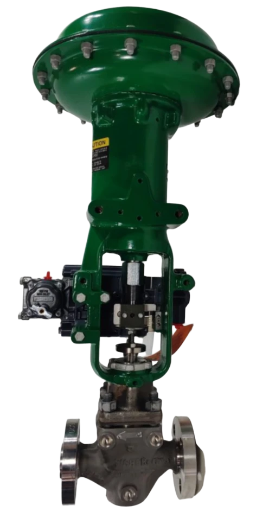

Fisher Controls 1" 150# CF8M ET Globe Control Valve with a Size 30i Fisher 667 Pneumatic Actuator and FIELDVUE Digital Valve Positioner
Rp123000.00
The listed unit is a high-performance Fisher Controls control valve assembly, commonly used in oil & gas, refining, and chemical processing applications where accurate flow regulation is critical. It consists of the following key components:
Fisher ET Control Valve – A 1-inch, ANSI 150#, CF8M stainless steel globe-style valve designed for throttling control of liquids, gases, and steam. The ET series is known for its rugged design, versatility, and capacity to handle moderate to severe service conditions.
Fisher 667 Size 30i Pneumatic Actuator – A spring-opposed diaphragm actuator providing linear motion. Known for its durability and reliable force generation, this actuator converts air pressure into mechanical force to modulate the valve stem.

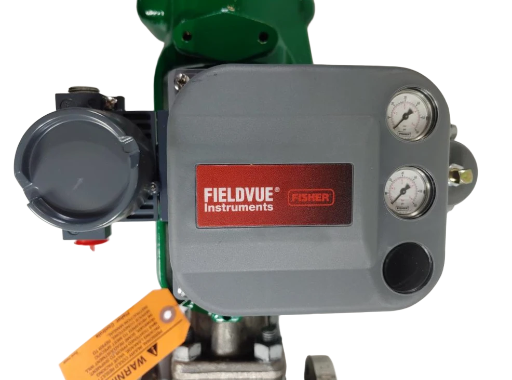

FIELDVUE Digital Valve Positioner – A smart positioner that receives control signals and accurately positions the valve. It features diagnostics, performance monitoring, and integration with asset management systems, improving reliability and maintenance planning.
Technical Specifications
1. Control Valve – Fisher ET
Parameter | Specification |
Valve Type | Globe-style Control Valve |
Valve Series | Fisher ET |
Size | 1 inch (DN25) |
Pressure Rating | ANSI 150# |
Body Material | CF8M Stainless Steel (equivalent to 316 SS) |
End Connections | Flanged |
Flow Characteristic | Equal Percentage or Linear (optional) |
Trim Type | Quick-change trim |
Service Media | Liquids, Gases, Steam |
Leakage Class | ANSI/FCI 70-2 Class IV or V (depending on trim) |
2. Actuator – Fisher 667 Size 30i
Parameter | Specification |
Actuator Type | Pneumatic Diaphragm, Spring-Return |
Model | Fisher 667 |
Size | 30i (Linear travel) |
Air Supply | Up to 60 psi (4.1 bar) |
Travel | Typically 0.5" to 1.5" (based on setup) |
Mounting | Direct actuator-to-valve yoke |
Ambient Temp Range | -40°C to +82°C (-40°F to +180°F) |
3. Positioner – FIELDVUE Digital Valve Controller
Parameter | Specification |
Type | Digital Valve Positioner |
Communication | HART (standard), Foundation Fieldbus, or Profibus (optional) |
Input Signal | 4–20 mA with HART |
Supply Pressure | Up to 150 psi (10.3 bar) |
Mounting | Direct-mounted on actuator |
Functions | Auto-calibration, Diagnostics, Alerts |
Protection Rating | NEMA 4X / IP66 |
Operating Temp | -40°C to +85°C |
