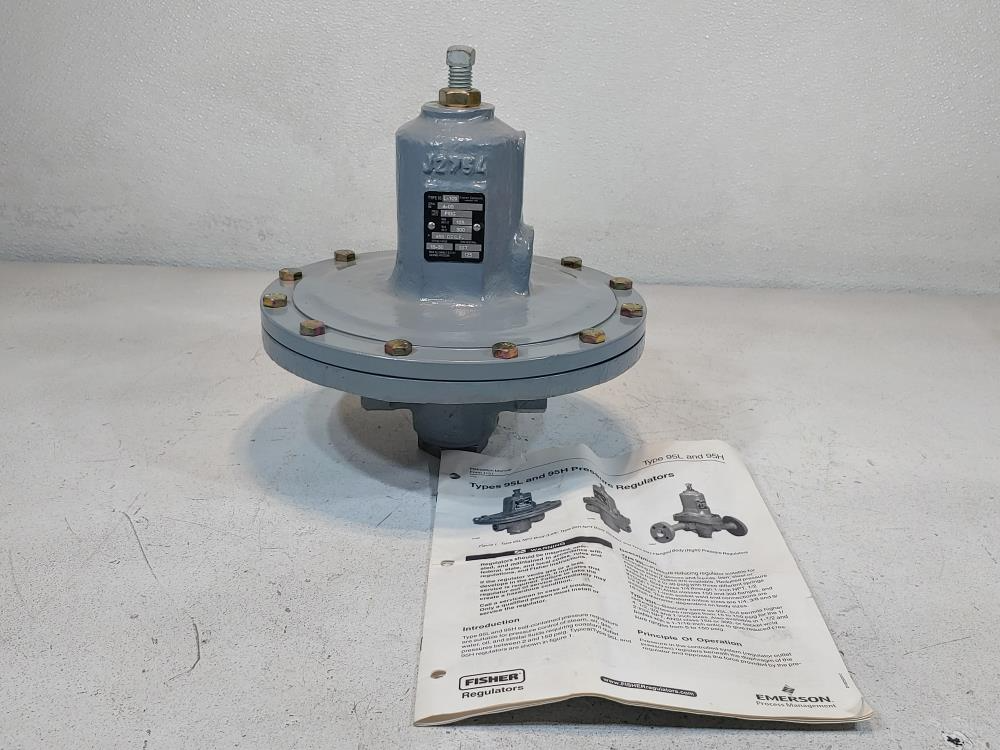

Fisher 95 L-109 Pressure Regulator with 1/2-inch NPT
Rp123000.00
Fisher 95 L-109 Pressure Regulator 1/2" NPT
Description
The Fisher 95 L-109 is a compact, direct-operated pressure regulator designed to provide accurate and reliable pressure control in a variety of industrial applications. Featuring a 1/2" NPT threaded connection, it is suitable for regulating the pressure of gases or liquids within small to medium flow ranges. The regulator offers stable control, ease of installation, and durability, making it ideal for use in instrumentation, pilot lines, and low-pressure process applications.
Specifications
Parameter | Specification |
Model | Fisher 95 L-109 |
Connection Size | 1/2" NPT (National Pipe Thread) |
Regulator Type | Direct-operated pressure regulator |
Pressure Range | Typically 0 to 100 psi (varies by spring selection) |
Maximum Inlet Pressure | Up to 500 psi (check specific model data) |
Outlet Pressure Accuracy | ±5% of setpoint |
Body Material | Carbon Steel or Stainless Steel (depending on version) |
Diaphragm Material | Buna-N or optional Viton |
Temperature Range | -20°F to 180°F (-29°C to 82°C) |
Maximum Flow Rate | Depends on inlet/outlet conditions (refer to flow curves) |
Connections | 1/2" NPT female threaded |
Operating Medium | Air, inert gases, light oils, and liquids |
Mounting Orientation | Any |
Application | Pressure regulation for pilot lines, instrumentation, low-pressure control |
